General Purpose Relays

View as Grid List
Sort by
Display per page
Fully sealed construction (immersion cleanable). DIL pitch terminals.

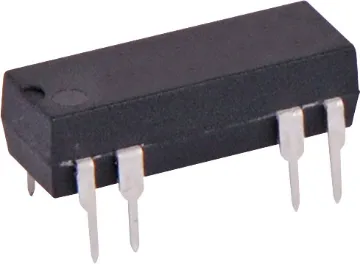

S4101

0.5A 12VDC SPST DIP PCB Mount Reed Relay

Fully sealed construction (immersion cleanable). DIL pitch terminals.
$4.95
Fully sealed construction (immersion cleanable). DIL pitch terminals.

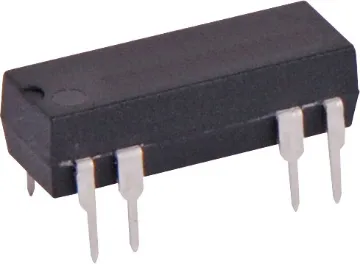

S4101A

0.5A 12VDC SPST DIP PCB Mount Reed Relay

Fully sealed construction (immersion cleanable). DIL pitch terminals.
$4.32
Fully sealed construction (immersion cleanable). DIL pitch terminals.
S4100A

0.5A 5VDC SPST DIP PCB Mount Reed Relay

Fully sealed construction (immersion cleanable). DIL pitch terminals.
$4.32
Max voltage: 300V AC, 30V DC Max current: 20A (total) Max VA (Watts): 280VA (280W) Contact material: Silver Cadmium Oxide Coil resistance: 160Ω Max coil power: 900mW Insulation resistance: >1000MO@ 500V DC Dielectric strength (for 1 min): 1000V AC between open contacts 1500V AC between coil & contact Electrical life: 100,000 operatio
S4311

10A 12VDC DPDT PCB Mount Relay

Max voltage: 300V AC, 30V DC Max current: 20A (total) Max VA (Watts): 280VA (280W) Contact material: Silver Cadmium Oxide Coil resistance: 160Ω Max coil power: 900mW Insulation resistance: >1000MO@ 500V DC Dielectric strength (for 1 min): 1000V AC between open contacts 1500V AC between coil & contact Electrical life: 100,000 operatio
$8.32
Non-sealed type, suitable for flow soldering

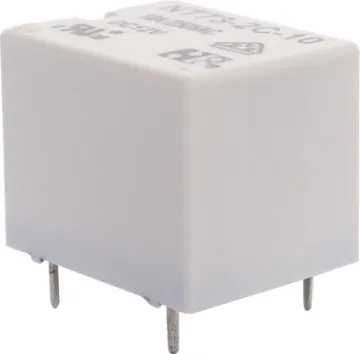

S4160C

10A 12VDC SPDT PCB Mount Relay

Non-sealed type, suitable for flow soldering
$3.18
Non-Sealed type, suitable for flow soldering

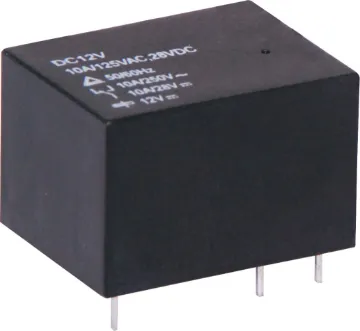

S4202B

10A 12VDC SPDT PCB Mount Relay

Non-Sealed type, suitable for flow soldering
$4.64
Features Inbuilt LED indicator

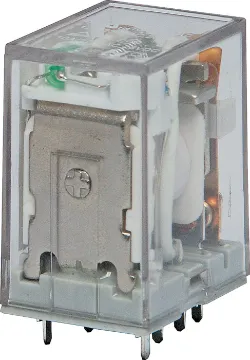

S4313

10A 24VDC DPDT PCB Mount Relay

Features Inbuilt LED indicator
$8.32
Non-Sealed type, suitable for flow soldering

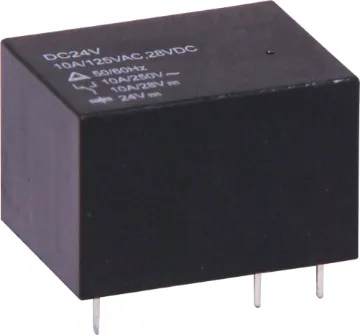

S4204B

10A 24VDC SPDT PCB Mount Relay

Non-Sealed type, suitable for flow soldering
$4.64
Non-sealed type, suitable for flow soldering

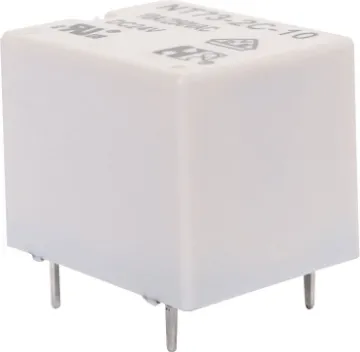

S4162C

10A 24VDC SPDT PCB Mount Relay

Non-sealed type, suitable for flow soldering
$3.18
Non-sealed type, suitable for flow soldering

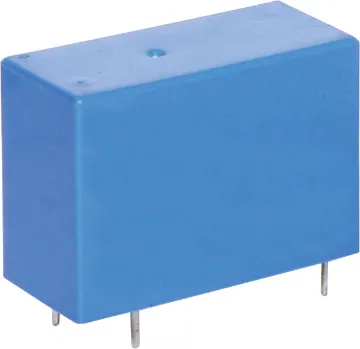

S4175A

10A 24VDC SPDT PCB Mount Relay

Non-sealed type, suitable for flow soldering
$5.91
Non-sealed type, suitable for flow soldering
S4260

12A 12VDC SPDT PCB Mount Relay

Non-sealed type, suitable for flow soldering
$7.59
Non-sealed type, suitable for flow soldering

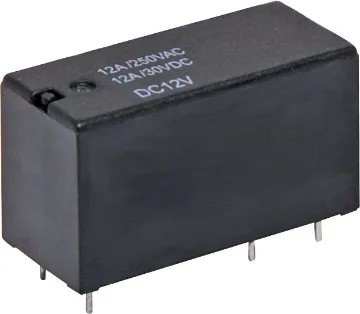

S4260A

12A 12VDC SPDT PCB Mount Relay

Non-sealed type, suitable for flow soldering
$6.82
Non-sealed type, suitable for flow soldering

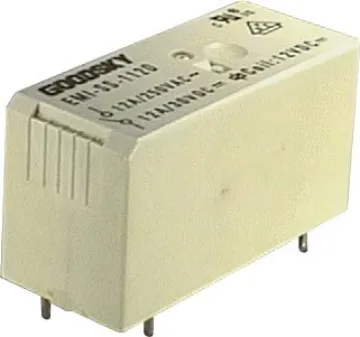

S4262

12A 24VDC SPDT PCB Mount Relay

Non-sealed type, suitable for flow soldering
$7.59
Non-sealed type, suitable for flow soldering

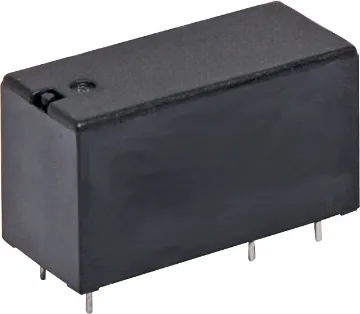

S4262A

12A 24VDC SPDT PCB Mount Relay

Non-sealed type, suitable for flow soldering
$6.82
Non-Sealed type, suitable for flow soldering

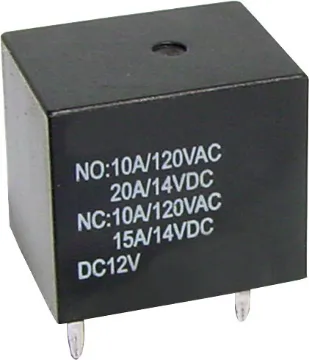

S4402A

12VDC 10A SPDT PCB Mount Relay

Non-Sealed type, suitable for flow soldering
$4.05
16A SPST 12V PCB Relay. Great for high current applications, experiments, new designs & projects.

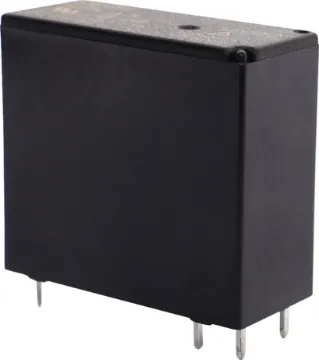

SA4198

12VDC 16A SPST PCB Mount Relay

16A SPST 12V PCB Relay. Great for high current applications, experiments, new designs & projects.
$5.23
Double coil magnet latching relay. Coil requires pulse with voltage equivalent to the nominal coil voltage to operate. Ensure latch and reset coil are not powered simultaneously. Non-sealed type suitable for flow soldering.

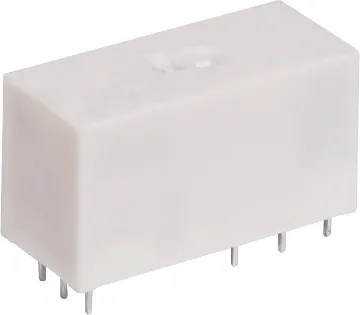

S4240

16A 12VDC SPDT PCB Mount Latching Relay

Double coil magnet latching relay. Coil requires pulse with voltage equivalent to the nominal coil voltage to operate. Ensure latch and reset coil are not powered simultaneously. Non-sealed type suitable for flow soldering.
$10.45
Fully sealed construction (immersion cleanable).

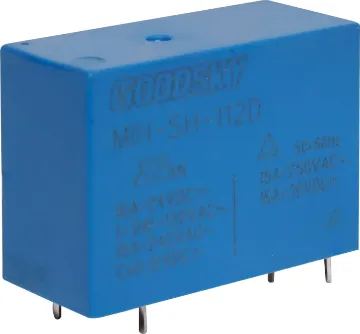

S4197

16A 12VDC SPDT PCB Mount Relay

Fully sealed construction (immersion cleanable).
$6.32
Fully sealed construction (immersion cleanable).

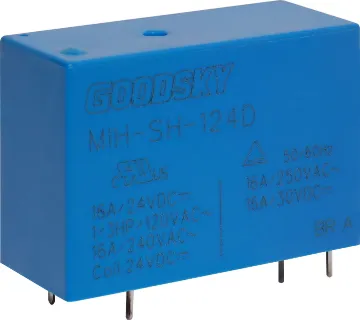

S4199

16A 24VDC SPDT PCB Mount Relay

Fully sealed construction (immersion cleanable).
$6.32
Fully sealed construction (immersion cleanable).
S4150

1A 12VDC DPDT PCB Mount Micro Relay

Fully sealed construction (immersion cleanable).
$5.18
Max voltage: 125V AC, 60V DC Max current: 1A DC Max VA (Watts): 62.5VA (30W) Contact material: Gold Plated Silver Coil resistance: 960&Omega Max coil power: 150mw Insulation resistance: >1000M&Omega @ 500V DC Dielectric strength (for 1 min): 400V AC between open contacts 1000V AC between coil & contact Electrical life: 100,000 op
S4113

1A 12VDC SPDT PCB Mount Mini Relay

Max voltage: 125V AC, 60V DC Max current: 1A DC Max VA (Watts): 62.5VA (30W) Contact material: Gold Plated Silver Coil resistance: 960&Omega Max coil power: 150mw Insulation resistance: >1000M&Omega @ 500V DC Dielectric strength (for 1 min): 400V AC between open contacts 1000V AC between coil & contact Electrical life: 100,000 op
$5.18
Fully sealed construction (immersion cleanable).

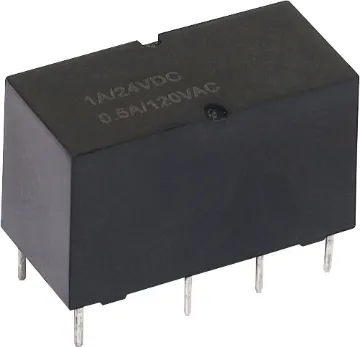

S4152

1A 24VDC DPDT PCB Mount Micro Relay

Fully sealed construction (immersion cleanable).
$5.18
Max voltage: 125V AC, 60V DC Max current: 1A DC Max VA (Watts): 62.5VA (30W) Contact material: Gold Plated Silver Coil resistance: 3840&Omega Max coil power: 150mw Insulation resistance: >1000M&Omega @ 500V DC Dielectric strength (for 1 min): 400V AC between open contacts 1000V AC between coil & contact Electrical life: 100,00

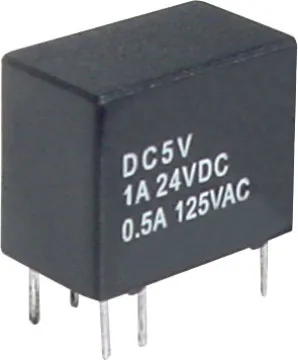

S4114

1A 24VDC SPDT PCB Mount Mini Relay

Max voltage: 125V AC, 60V DC Max current: 1A DC Max VA (Watts): 62.5VA (30W) Contact material: Gold Plated Silver Coil resistance: 3840&Omega Max coil power: 150mw Insulation resistance: >1000M&Omega @ 500V DC Dielectric strength (for 1 min): 400V AC between open contacts 1000V AC between coil & contact Electrical life: 100,00
$5.18
Fully sealed construction (immersion cleanable).

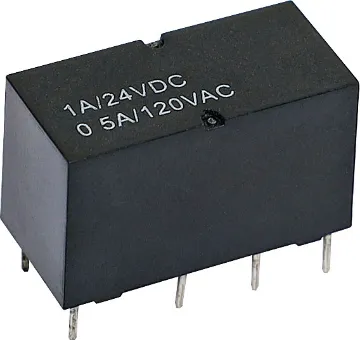

S4147

1A 5VDC DPDT PCB Mount Micro Relay

Fully sealed construction (immersion cleanable).
$5.18
Max voltage: 125V AC, 60V DC Max current: 1A DC Max VA (Watts): 62.5VA (30W) Contact material: Gold Plated Silver Coil resistance: 166Ω Max coil power: 150mw Insulation resistance: >1000MΩ @ 500V DC Dielectric strength (for 1 min

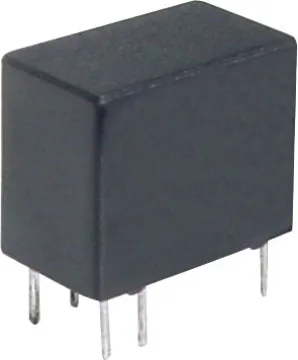

S4111

1A 5VDC SPDT PCB Mount Mini Relay

Max voltage: 125V AC, 60V DC Max current: 1A DC Max VA (Watts): 62.5VA (30W) Contact material: Gold Plated Silver Coil resistance: 166Ω Max coil power: 150mw Insulation resistance: >1000MΩ @ 500V DC Dielectric strength (for 1 min
$5.18
