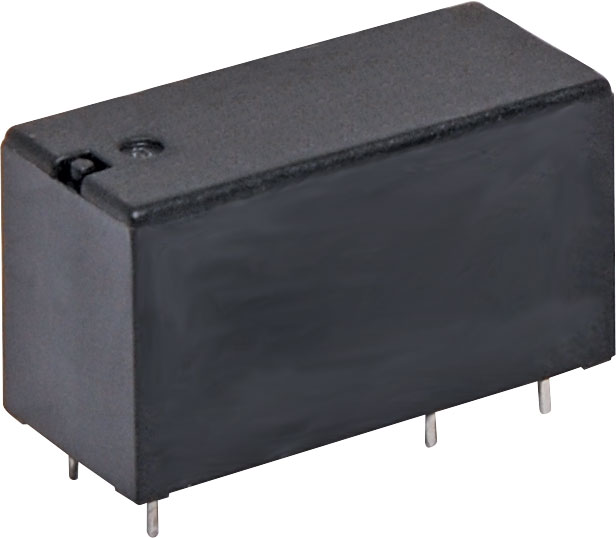

12A 24VDC SPDT PCB Mount Relay

SKU: S4262A
Non-sealed type, suitable for flow soldering
$6.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $6.82
10+ $6.14
40+ $5.45
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

12A SPDT relay. PCB mount style. 24V DC coil.
Non-sealed type, suitable for flow soldering. For plug in relay bases to suit, see S4182 and S4320.

PCB Layout

Specifications

Max Switching Voltage AC: 440V

  • Max Switching Voltage DC: 125V
  • Max Switching Current AC: 12A
  • Max Switching Current DC: 12A
  • Max Switching Power AC: 600VA
  • Max Switching Power DC: 480W
  • Contact Material: Silver alloy
  • Coil Resistance (12V): 1405Ω
  • Max Coil Power: 400mW
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 5000V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: 29W x 12.7L x 15.7H mm
