Encoding Switches
Looking for encoding switches? Altronics stock a range of rotary encoders, hexidecimal rotary switches, BCD type switches and thumbwheel selectors.

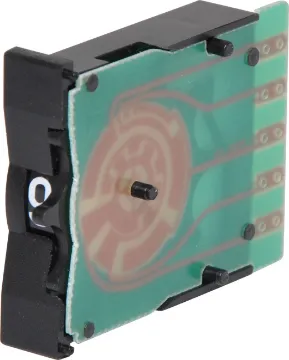

0-9 BCD Mini Thumbwheel Switch
S3300
Panel mount BCD coded units which slot together to produce a bank of switches. Each unit is engraved (white on black). Output is 8-4-2-1 weighting.Gold plated PCB tracks and connections. Cutout for one unit plus end caps 16 x 30mm. Allow further 8mm per u

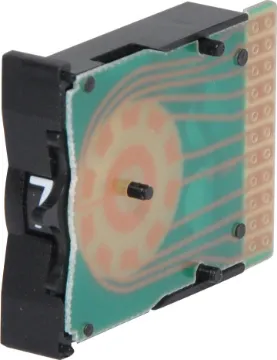

10 Position Decimal Mini Thumbwheel Switch
S3302
Panel mount Decimal coded units which slot together to produce a bank of switches. Each unit is engraved (white on black). Output is 8-4-2-1 weighting.Gold plated PCB tracks and connections. Cutout for one unit plus end caps 16 x 30mm. Allow further 8mm p

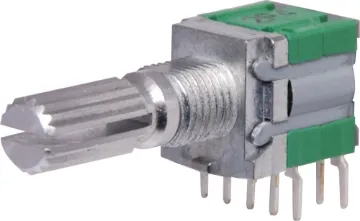

2 Pole 4 Position 90 Degree Rotary Switch
S3008
Rating: 16V DC, Max Operating Current: 10mA, Contact resistance: 50m max, Insulation Resistance: 100VDC 100M Ohm Min., Withstand Voltage: 100VAC 1minute, Operating Force: 400+/- 200gf/cm, Rotational Life: 10,000 Cycles, Resolution: 20 pulses/360°

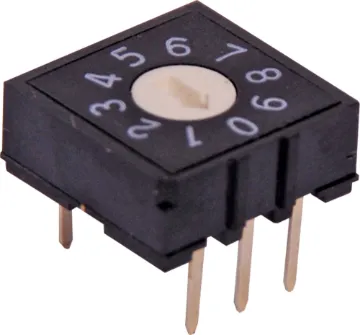

5 Pin BCD PCB Mount Rotary Switch
S3001A
Temperature range: -10C to +60°C
Non switching rating: 50V DC @ 100mA
Switching rating: 5V DC @ 100mA
Contact resistance (Rc): 100m max.
Insulation resistance: 100M min @ 250VAC
Voltage proof: 250V AC for 1 min.
Mech life: (Rc < 150m

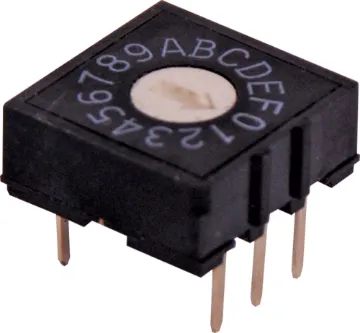

5 Pin Hexidecimal PCB Mount Rotary Switch
S3000A
Temperature range: -10C to +60°C Non switching rating: 50V DC @ 100mA Switching rating: 5V DC @ 100mA Contact resistance (Rc): 100m max. Insulation resistance: 100M min @ 250VAC Voltage proof: 250V AC for 1 min. Mech life: (Rc < 150m

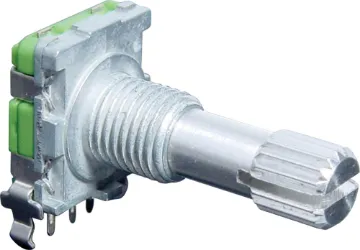

90 Degree PCB Mount Rotary Encoder
S3350
Rating: 5V DC
Max Operating Current: 10mA
Insulation Resistance: 300VDC 100M Ohm Min.
Rotational Life: 15,000 Cycles
Resolution: 20 pulses/360°

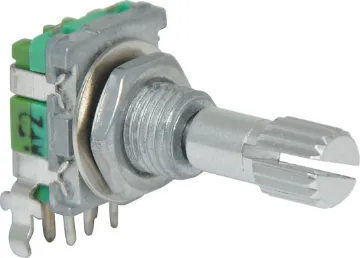

90 Degree Rotary Encoder Switch
S3352
Rating: 5V DC
Max Operating Current: 10mA
Insulation Resistance: 250VDC 100M Ohm Min.
Rotational Life: 15,000 Cycles
Resolution: 20 pulses/360°
