Arduino Shields - Altronics

This 2.8" TFT Touchscreen is designed to suitable for Arduino UNO/Mega2560. It can directly plug into the UNO/Mega2560 board without any wiring and soldering. It's Library is compatible with Adafruit TFT touchscreen shield, which is easy to use.

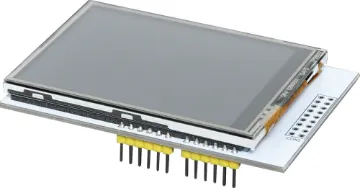

2.8" TFT Touch Shield for Arduino with Resistive Touch Screen

Z6510A

This 2.8" TFT Touchscreen is designed to suitable for Arduino UNO/Mega2560. It can directly plug into the UNO/Mega2560 board without any wiring and soldering. It's Library is compatible with Adafruit TFT touchscreen shield, which is easy to use.

A 480x320 display shield for the Arduino Mega utilising the ILI9481 chipset. Ideal for projects requiring sensor monitoring. 5V/3.3V input.

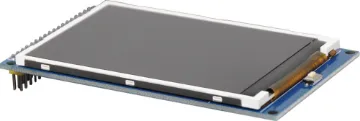

3.2” TFT LCD Shield For Arduino Mega2560

Z6527

A 480x320 display shield for the Arduino Mega utilising the ILI9481 chipset. Ideal for projects requiring sensor monitoring. 5V/3.3V input.

A 480x320 display shield for the Arduino Mega utilising the ILI9486 chipset. Ideal for projects requiring sensor monitoring.

New

RoHS

3.5" TFT LCD Shield For Arduino Mega2560

Z6527A

A 480x320 display shield for the Arduino Mega utilising the ILI9486 chipset. Ideal for projects requiring sensor monitoring.

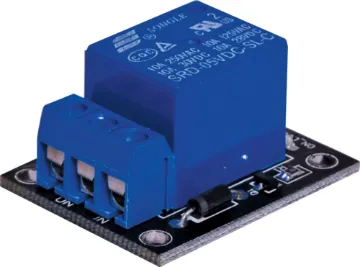

This 5V relay module is suitable for integration with many types of micro control systems, including Arduino. Ideal for home appliance control. 5V-12V TIL control signal suitable for controlling DC / AC signal. The module is perfect for common Arduino applications.

- Suitable for SCM development, home appliance control
- 5V-12V TTL control sign

5V Relay Control Board Module/Shield

Z6325

This 5V relay module is suitable for integration with many types of micro control systems, including Arduino. Ideal for home appliance control. 5V-12V TIL control signal suitable for controlling DC / AC signal. The module is perfect for common Arduino applications. - Suitable for SCM development, home appliance control - 5V-12V TTL control sign

(Designed by Altronics) This 4 digit common anode driver board is ideal for building an Arduino controlled clock or counter. It features two on board 74HC595 chips which can be easily driven using Arduino ShiftOut. It utilises all through hole components for easy construction.

7 Segment 4 Digit LED Driver Shield Kit

K9700

(Designed by Altronics) This 4 digit common anode driver board is ideal for building an Arduino controlled clock or counter. It features two on board 74HC595 chips which can be easily driven using Arduino ShiftOut. It utilises all through hole components for easy construction.

The onboard BUS control chip can realize the data control on the CAN bus and data communication between devices.

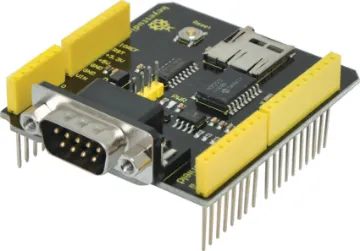

CAN-BUS Shield for Arduino

Z6426

The onboard BUS control chip can realize the data control on the CAN bus and data communication between devices.

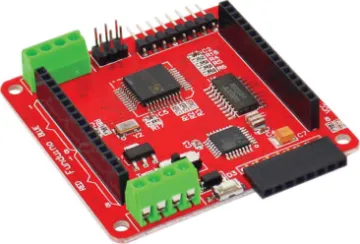

A control shield suitable for use with the Arduino UNO to power and control the Z 0977 8x8 RGB LED module. Create colourful effects, display symbols and text using this creative shield. 5V DC input. DM163 & M54564FP controller on board.

Control Shield Board to suit Z0977

Z6480

A control shield suitable for use with the Arduino UNO to power and control the Z 0977 8x8 RGB LED module. Create colourful effects, display symbols and text using this creative shield. 5V DC input. DM163 & M54564FP controller on board.

An SD card module fitted with a DS1307 real time clock for recording data to mass storage.

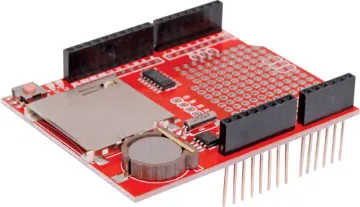

Datalogger Shield for Arduino

Z6380

An SD card module fitted with a DS1307 real time clock for recording data to mass storage.

This interface shield supports multi-interfaces, SPI, IIC and SD Card.

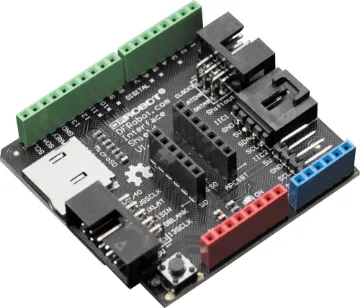

DFR0074 Arduino Interface Shield Connection Module

Z6500

This interface shield supports multi-interfaces, SPI, IIC and SD Card.

This Speech Synthesis Shield is designed to be easily stacked upon any standard arduinos. It uses a XFS5051CE speech synthesis chip from IFLYTEK which combines world leading technology and high degree of integration.

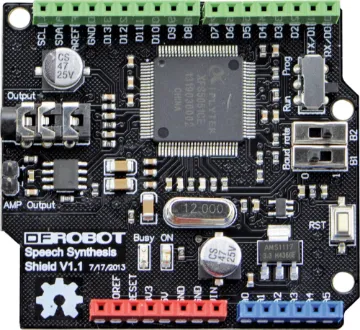

DFR0273 Arduino Speech Synthesis Shield

Z6560

This Speech Synthesis Shield is designed to be easily stacked upon any standard arduinos. It uses a XFS5051CE speech synthesis chip from IFLYTEK which combines world leading technology and high degree of integration.

Allows an Arduino board to connect to the internet. It is based on the Wiznet W5100 ethernet chip providing a network (IP) stack capable of both TCP and UDP. Supports up to four simultaneous socket connections. Use the Ethernet library to write sketches which connect to the internet via a stan

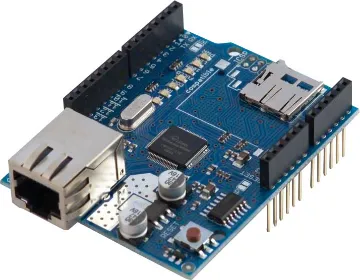

Funduino Ethernet Shield R3

Z6242

Allows an Arduino board to connect to the internet. It is based on the Wiznet W5100 ethernet chip providing a network (IP) stack capable of both TCP and UDP. Supports up to four simultaneous socket connections. Use the Ethernet library to write sketches which connect to the internet via a stan

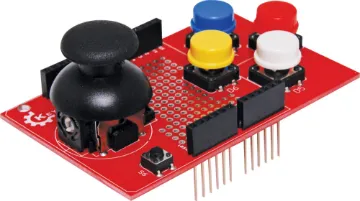

A joystick and button controller which plugs directly onto an Arduino UNO. Features a header for direct connection to Z 6348 Nokia screen. 3V3 or 5V DC input. Size: 88L x 54W x 40Hmm.

Funduino Joystick Game Shield

Z6340

A joystick and button controller which plugs directly onto an Arduino UNO. Features a header for direct connection to Z 6348 Nokia screen. 3V3 or 5V DC input. Size: 88L x 54W x 40Hmm.

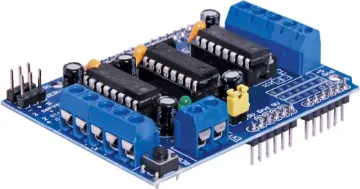

L293D is a monolithic integrated, high voltage, high current, 4-channel driver. Basically this means using this chip you can use DC motors and power supplies of up to 25 Volts, that"s some pretty big motors and the chip can supply a maximum current of 600mA per channel, the L293D chip is also what"s known as a type of H-Bridge. The H-Bridge is typi

Funduino L293D Motor Shield For Arduino

Z6208A

L293D is a monolithic integrated, high voltage, high current, 4-channel driver. Basically this means using this chip you can use DC motors and power supplies of up to 25 Volts, that"s some pretty big motors and the chip can supply a maximum current of 600mA per channel, the L293D chip is also what"s known as a type of H-Bridge. The H-Bridge is typi

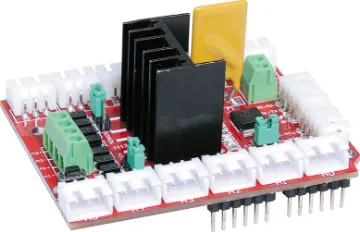

Uses an L298 H-Bridge designed to drive inductive loads, such as relays, solenoids, DC and stepping motors. It can also drive two independent DC motors, controlling the speed and direction of each. Standard Arduino shield dimensions with analog and digital output headers. 5V input.

Funduino L298 H-Bridge Motor Shield For Arduino

Z6343

Uses an L298 H-Bridge designed to drive inductive loads, such as relays, solenoids, DC and stepping motors. It can also drive two independent DC motors, controlling the speed and direction of each. Standard Arduino shield dimensions with analog and digital output headers. 5V input.

A 16x2 black character screen with green backlight. Push buttons are provided for up, down, left, right and select. Ideal for scrolling and selecting menu options. Works with the LiquidCrystal library in Arduino IDE allowing control with only 6 digital I/O lines. Standard Arduino shield dimensions and pinouts.

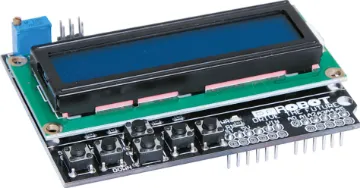

Funduino LCD Screen Keypad Control Shield

Z6345

A 16x2 black character screen with green backlight. Push buttons are provided for up, down, left, right and select. Ideal for scrolling and selecting menu options. Works with the LiquidCrystal library in Arduino IDE allowing control with only 6 digital I/O lines. Standard Arduino shield dimensions and pinouts.

A pre-built prototyping shield with a large build area to suit Arduino Mega compatible boards. Each includes a 170 hole breadboard with adhesive backing. All headers and components pre-soldered. Stackable design makes it easy to add onto your design as your need it.

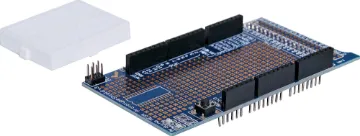

Funduino Mega Protoshield Board

Z6261

A pre-built prototyping shield with a large build area to suit Arduino Mega compatible boards. Each includes a 170 hole breadboard with adhesive backing. All headers and components pre-soldered. Stackable design makes it easy to add onto your design as your need it.

A stackable sensor connection board for Arduino. It features quick connection headers for digital I/O pins, and latching sockets for analog inputs. Selectable I2C and UART communication port on board. Each terminal has a ground, VCC and signal connection. Ideal for breaking out an Arduino board to multiple sensors. Can be used with our P 1016 & P 1

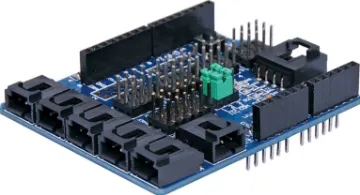

Funduino Sensor Shield Connection Module

Z6262

A stackable sensor connection board for Arduino. It features quick connection headers for digital I/O pins, and latching sockets for analog inputs. Selectable I2C and UART communication port on board. Each terminal has a ground, VCC and signal connection. Ideal for breaking out an Arduino board to multiple sensors. Can be used with our P 1016 & P 1

A pre-built prototyping shield with a large build area to suit Arduino UNO compatible boards. Each includes a 170 hole breadboard with adhesive backing. All headers and components pre-soldered. Stackable design makes it easy to add onto your design as your need it.

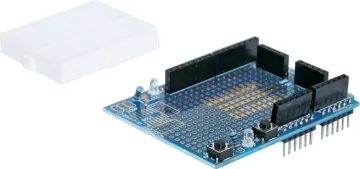

Funduino Uno Protoshield Board

Z6260

A pre-built prototyping shield with a large build area to suit Arduino UNO compatible boards. Each includes a 170 hole breadboard with adhesive backing. All headers and components pre-soldered. Stackable design makes it easy to add onto your design as your need it.

Allows you to connect USB peripherals and mass storage devices to your Arduino. Uses the MAX3421E chipset. Fitted with stackable connectors.

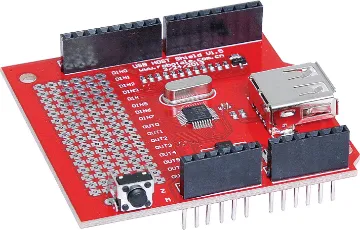

Funduino USB Host Shield

Z6342

Allows you to connect USB peripherals and mass storage devices to your Arduino. Uses the MAX3421E chipset. Fitted with stackable connectors.

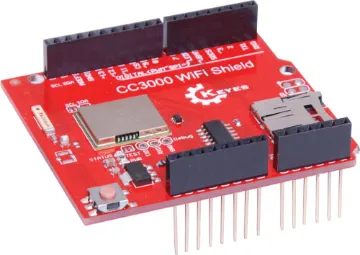

The CC3000 chipset provides a self contained wireless network which makes incorporating wi-fi into your project easy. Utilizes an SPI interface allowing control of the flow. Onboard antenna with pads for connection to external antenna. A microSD card slot is provided which will work with Arduino's SD library. Standard Arduino shield layout. 4.5-12V

Funduino Wifi Ethernet CC3000 Shield

Z6350

The CC3000 chipset provides a self contained wireless network which makes incorporating wi-fi into your project easy. Utilizes an SPI interface allowing control of the flow. Onboard antenna with pads for connection to external antenna. A microSD card slot is provided which will work with Arduino's SD library. Standard Arduino shield layout. 4.5-12V

Offers a complete and cost-effective audio solution.
MP3 decoder with control interface, 3.5mm input
(mic) and output jack sockets, and an onboard microphone.
On board micro SD card socket offers easy
media playback. Decodes OGG Vorbis/MP3/AAC/
WMA/MIDI. Records in OGG format. 5V input.

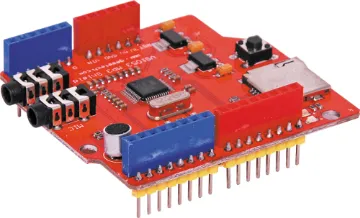

MP3 Audio Shield With Micro SD Card

Z6335A

Offers a complete and cost-effective audio solution. MP3 decoder with control interface, 3.5mm input (mic) and output jack sockets, and an onboard microphone. On board micro SD card socket offers easy media playback. Decodes OGG Vorbis/MP3/AAC/ WMA/MIDI. Records in OGG format. 5V input.

A GPS shield for Arduino featuring a 28dB high performance antenna and SD card slot. 3.3/5V input.

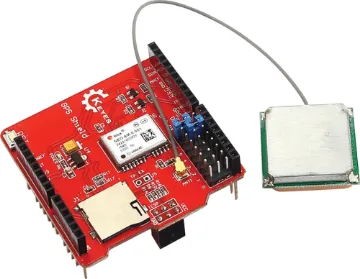

U-Blox Neo-6M GPS Module With SD Slot & Antenna

Z6332

A GPS shield for Arduino featuring a 28dB high performance antenna and SD card slot. 3.3/5V input.

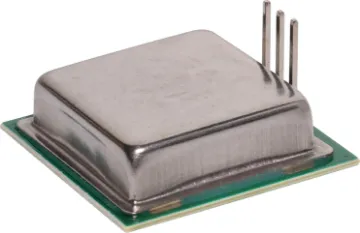

The CDM324 is a 24GHz Millimeter Wave Radar Sensor Module designed for reliable non-contact motion detectionand moving object detection.

New

RoHS

24GHz Millimeter Wave Radar CDM324 Sensor Module

Z6495

The CDM324 is a 24GHz Millimeter Wave Radar Sensor Module designed for reliable non-contact motion detectionand moving object detection.
