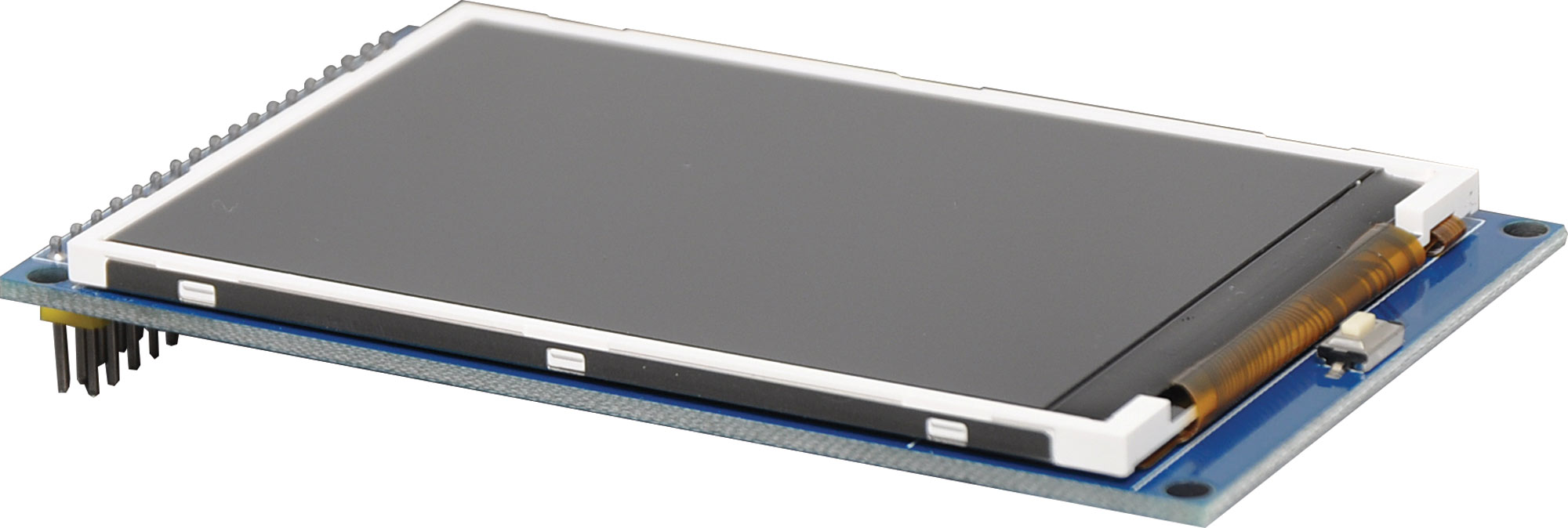

3.2” TFT LCD Shield For Arduino Mega2560

Be the first to review this product
A 480x320 display shield for the Arduino Mega utilising the ILI9481 chipset. Ideal for projects requiring sensor monitoring. 5V/3.3V input.
SKU: Z6527
$33.18
Per ea
QuantityPrice
ea$33.18
2+$29.95
4+$26.59

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A 480x320 display shield (non-touch) for the Arduino Mega utilising the ILI9481 chipset. Ideal for projects requiring sensor monitoring. 5V/3.3V input. This screen features 262K colour 480x 320 resolutions. It can be directly connected onto the Arduino Mega2560 board and also includes the SD card socket and SPI FLASH circuit.

For more information on this display, visit LCD Wiki

Features

  • Support Arduino Mega2560 Directly inserted
  • With Full-angle IPS TFT panel
  • On Board level conversion chip for 5V/3.3V MCU
  • Compatible with 3.3/5V operation voltage level
  • Compatible with Arduino-Series development Board.
  • Provided 12-examples with Arduino ,3-examples with STM32
  • With SD Card Socket
  • With SPI FLASH circuit

Specifications

Display Type: 3.2 inch a-si TFT LCD Module

  • Glass Type: TFT
  • Display Resolution: 480XRGBX320 Pixels
  • Back light: 6 chip HighLight white LEDs
  • Control IC: ILI9481
  • Interface: 16Bit parallel interface
  • PCB Module size: 89.92mmX54.25mm
  • LCD Area (WxHxT): 50.74mm x 78.35mm x 1.88mm
  • Active Area (WxH): 67.68mm x 45.12mm

12 Months

We Offer 12 Months for this product
