DIN Rail Mounting

DIN Rail mounting enclosures with terminal connections. DIN rail bases, accessories, railing and mounting clips available to complement new or existing DIN rail installations.

View as Grid List
Sort by
Display per page
Base sections for DIN modules. Simply add section lengths together to obtain the required length of rail for your PCB. 107.5mm PCB width, overall width 112.7mm.

107.5x11.2mm DIN Rail Base Section

H8560A
Base sections for DIN modules. Simply add section lengths together to obtain the required length of rail for your PCB. 107.5mm PCB width, overall width 112.7mm.
107.5mm wide DIN rail base sections for PCB mounting. 22.5mm length.

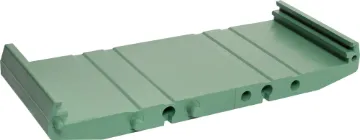

107.5x22.5mm DIN Rail Base Section

H8565A
107.5mm wide DIN rail base sections for PCB mounting. 22.5mm length.
107.5mm wide DIN rail base sections for PCB mounting. 45mm length.

107.5x45mm DIN Rail Base Section

H8570A
107.5mm wide DIN rail base sections for PCB mounting. 45mm length.
Endcaps to suit standard DIN rails. Accommodates 10mm of PCB length.

107mm DIN Rail End Cap

H8550A
Endcaps to suit standard DIN rails. Accommodates 10mm of PCB length.

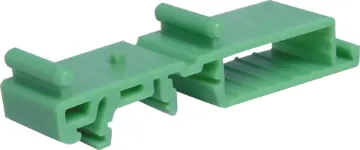

Mounting base section for DIN modules. This section is the mounting &quotfoot&quot for attaching a series of bases to the rail. Suits standard top hat, miniature top hat and asymmetric &quotG&quot types.

107mm DIN Rail Mounting Section

H8555A
Mounting base section for DIN modules. This section is the mounting "foot" for attaching a series of bases to the rail. Suits standard top hat, miniature top hat and asymmetric "G" types.
Designed for housing industrial control circuitry. The design includes integral PCB mounted terminals for ease of access and wiring once assembled. Each enclosure includes terminals and DIN rail mounting base, which suits 35mm top hat and asymmetrical &quotG&quot

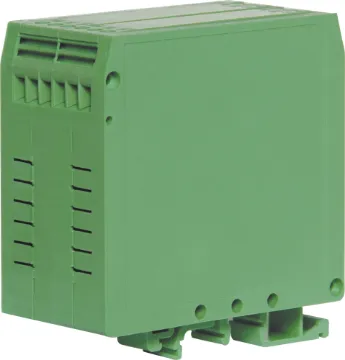

12 Way Terminal DIN Rail Enclosure

H8591
Designed for housing industrial control circuitry. The design includes integral PCB mounted terminals for ease of access and wiring once assembled. Each enclosure includes terminals and DIN rail mounting base, which suits 35mm top hat and asymmetrical "G"
Designed for housing industrial control circuitry. The design includes integral PCB mounted terminals for ease of access and wiring once assembled. Each enclosure includes terminals and DIN rail mounting base, which suits 35mm top hat and asymmetrical &quotG&quot

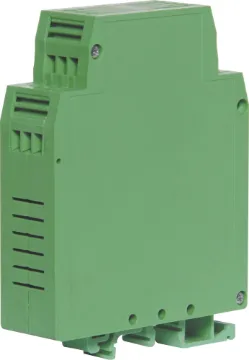

12 Way Terminal Hi-Top DIN Rail Enclosure

H8595
Designed for housing industrial control circuitry. The design includes integral PCB mounted terminals for ease of access and wiring once assembled. Each enclosure includes terminals and DIN rail mounting base, which suits 35mm top hat and asymmetrical "G"

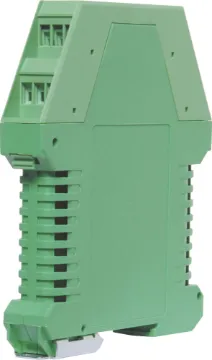

Designed for housing electronic control circuitry for use in industrial applications. Supplied complete with PCB mount terminals. Clip in top section is removable for access to PCB. Suits 35mm top hat DIN rail mount via the integral mounting bracket. Dink

12 Way Terminal Slim DIN Rail Enclosure

H8599
Designed for housing electronic control circuitry for use in industrial applications. Supplied complete with PCB mount terminals. Clip in top section is removable for access to PCB. Suits 35mm top hat DIN rail mount via the integral mounting bracket. Dink
DIN Rail Housing labels to suit H8590 - H8596.

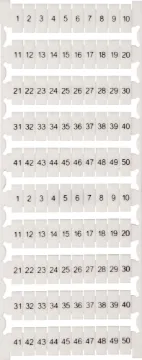

1-50 DIN Rail Labels To Suit H8590-96 Enclosures

H8604
DIN Rail Housing labels to suit H8590 - H8596.

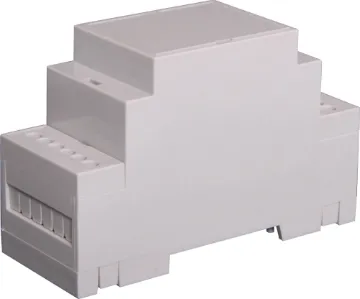

Easy snap fit construction DIN rail enclosure in 2 module width. Suits DIN EN60715 35mm top hat rail. Constructed from grey UL94V-0 polycarbonate. Three PCB positions allow greater flexibility in circuit design. Matching snap-on terminal guard

2 Module DIN Rail Enclosure

H8452
Easy snap fit construction DIN rail enclosure in 2 module width. Suits DIN EN60715 35mm top hat rail. Constructed from grey UL94V-0 polycarbonate. Three PCB positions allow greater flexibility in circuit design. Matching snap-on terminal guard
Suitable for 35mm top hat and asymmetrical &quotG&quot Type DIN rail mounts. 600V rated. Can be used with Dinkle 5EH-2PR.2PL and 5ESDT-O2P terminal blocks. - Suits solid or stranded cable 28-12AWG - Wire strip length 7-8mm

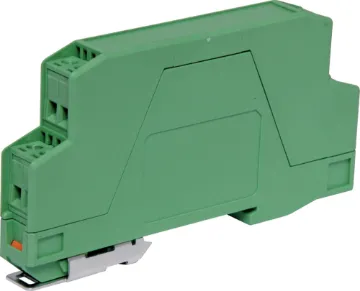

2 Pin 4 Plug DIN Rail Housing

H8580
Suitable for 35mm top hat and asymmetrical "G" Type DIN rail mounts. 600V rated. Can be used with Dinkle 5EH-2PR.2PL and 5ESDT-O2P terminal blocks. - Suits solid or stranded cable 28-12AWG - Wire strip length 7-8mm

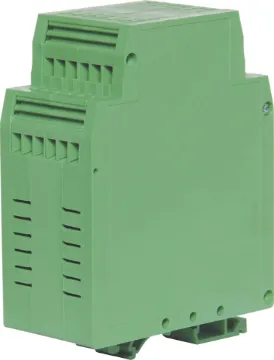

Designed for housing industrial control circuitry. The design includes integral PCB mounted terminals for ease of access and wiring once assembled. Each enclosure includes terminals and DIN rail mounting base, which suits 35mm top hat and asymmetrical &quotG&quot

24 Way Terminal Hi-Top DIN Rail Enclosure

H8596
Designed for housing industrial control circuitry. The design includes integral PCB mounted terminals for ease of access and wiring once assembled. Each enclosure includes terminals and DIN rail mounting base, which suits 35mm top hat and asymmetrical "G"

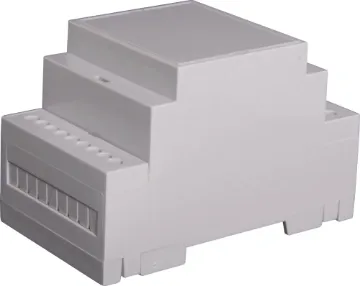

Easy snap fit construction DIN rail enclosure in 3 module width. Suits DIN EN60715 35mm top hat rail. Constructed from grey UL94V-0 polycarbonate. Three PCB positions allow greater flexibility in circuit design. Matching snap-on terminal guard

3 Module DIN Rail Enclosure

H8453
Easy snap fit construction DIN rail enclosure in 3 module width. Suits DIN EN60715 35mm top hat rail. Constructed from grey UL94V-0 polycarbonate. Three PCB positions allow greater flexibility in circuit design. Matching snap-on terminal guard

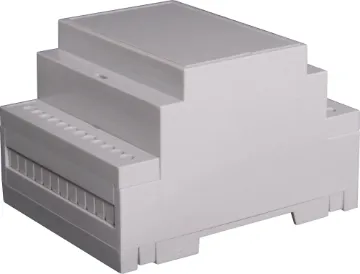

Easy snap fit construction DIN rail enclosure in 3 module width. Suits DIN EN60715 35mm top hat rail. Constructed from grey UL94V-0 polycarbonate. Three PCB positions allow greater flexibility in circuit design. Matching snap-on terminal guard

4 Module DIN Rail Enclosure

H8454
Easy snap fit construction DIN rail enclosure in 3 module width. Suits DIN EN60715 35mm top hat rail. Constructed from grey UL94V-0 polycarbonate. Three PCB positions allow greater flexibility in circuit design. Matching snap-on terminal guard
DIN Rail Housing labels to suit H8590 - H8596.

51-100 DIN Rail Labels To Suit H8590-96 Enclosures

H8605
DIN Rail Housing labels to suit H8590 - H8596.

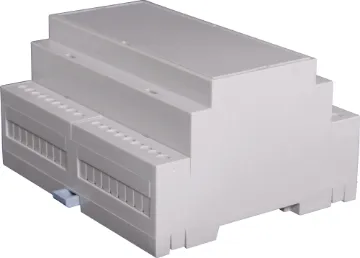

Easy snap fit construction DIN rail enclosure in 6 module width. Suits DIN EN60715 35mm top hat rail. Constructed from grey UL94V-0 polycarbonate. Three PCB positions allow greater flexibility in circuit design. Matching snap-on terminal guard

6 Module DIN Rail Enclosure

H8456
Easy snap fit construction DIN rail enclosure in 6 module width. Suits DIN EN60715 35mm top hat rail. Constructed from grey UL94V-0 polycarbonate. Three PCB positions allow greater flexibility in circuit design. Matching snap-on terminal guard

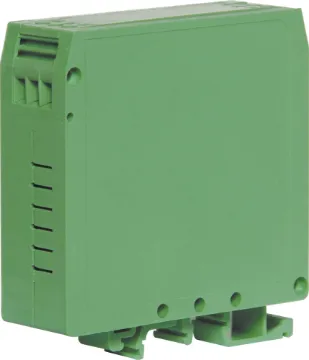

Designed for housing industrial control circuitry. The design includes integral PCB mounted terminals for ease of access and wiring once assembled. Each enclosure includes terminals and DIN rail mounting base, which suits 35mm top hat and asymmetrical &quotG&quot

6 Way Terminal DIN Rail Enclosure

H8590
Designed for housing industrial control circuitry. The design includes integral PCB mounted terminals for ease of access and wiring once assembled. Each enclosure includes terminals and DIN rail mounting base, which suits 35mm top hat and asymmetrical "G"

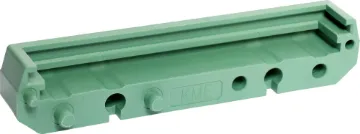

Endcaps to suit standard DIN rails. Accommodates 10mm of PCB length.

72mm DIN Rail End Cap

H8500A
Endcaps to suit standard DIN rails. Accommodates 10mm of PCB length.
Mounting base section for DIN modules. This section is the mounting &quotfoot&quot for attaching a series of bases to the rail. Suits standard top hat, miniature top hat and asymmetric &quotG&quot types.

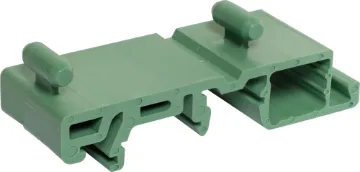

72mm DIN Rail Mounting Section

H8505A
Mounting base section for DIN modules. This section is the mounting "foot" for attaching a series of bases to the rail. Suits standard top hat, miniature top hat and asymmetric "G" types.
Base sections for DIN modules. Simply add section lengths together to obtain the required length of rail for your PCB. 72mm PCB width, overall width 77.5mm.

72x11.2mm DIN Rail Base Section

H8510A
Base sections for DIN modules. Simply add section lengths together to obtain the required length of rail for your PCB. 72mm PCB width, overall width 77.5mm.
Base sections for DIN modules. Simply add section lengths together to obtain the required length of rail for your PCB. 72mm PCB width, overall width 77.5mm.

72x22.4mm DIN Rail Base Section

H8515A
Base sections for DIN modules. Simply add section lengths together to obtain the required length of rail for your PCB. 72mm PCB width, overall width 77.5mm.
Base sections for DIN modules. Simply add section lengths together to obtain the required length of rail for your PCB. 72mm PCB width, overall width 77.5mm.

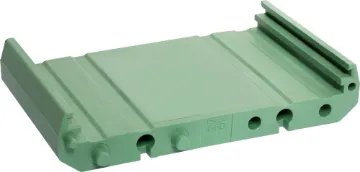

72x44.8mm DIN Rail Base Section

H8520A
Base sections for DIN modules. Simply add section lengths together to obtain the required length of rail for your PCB. 72mm PCB width, overall width 77.5mm.

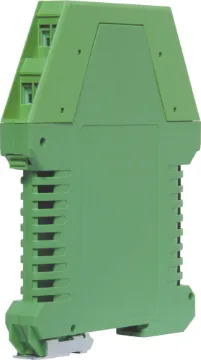

Designed for housing electronic control circuitry for use in industrial applications. Supplied complete with PCB mount terminals. Clip in top section is removable for access to PCB. Suits 35mm top hat DIN rail mount via the integral mounting bracket. Dink

8 Way Terminal Slim DIN Rail Enclosure

H8598
Designed for housing electronic control circuitry for use in industrial applications. Supplied complete with PCB mount terminals. Clip in top section is removable for access to PCB. Suits 35mm top hat DIN rail mount via the integral mounting bracket. Dink

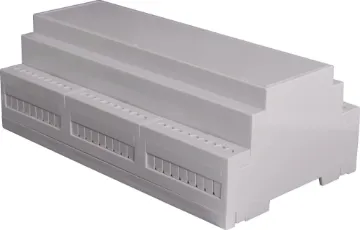

Easy snap fit construction DIN rail enclosure in 6 module width. Suits DIN EN60715 35mm top hat rail. Constructed from grey UL94V-0 polycarbonate. Three PCB positions allow greater flexibility in circuit design. Matching snap-on terminal guard

9 Module DIN Rail Enclosure

H8459
Easy snap fit construction DIN rail enclosure in 6 module width. Suits DIN EN60715 35mm top hat rail. Constructed from grey UL94V-0 polycarbonate. Three PCB positions allow greater flexibility in circuit design. Matching snap-on terminal guard
For mounting enclosures and project boxes to DIN rails. 30mm mounting hole spacing. Can be mounted to almost any size or type of enclosure Hammond P/N 1427DINCLIP

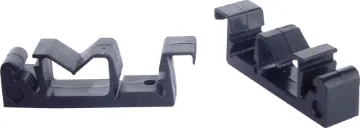

DIN Rail Mounting Clips Universal 1 Pair

H8496
For mounting enclosures and project boxes to DIN rails. 30mm mounting hole spacing. Can be mounted to almost any size or type of enclosure Hammond P/N 1427DINCLIP
