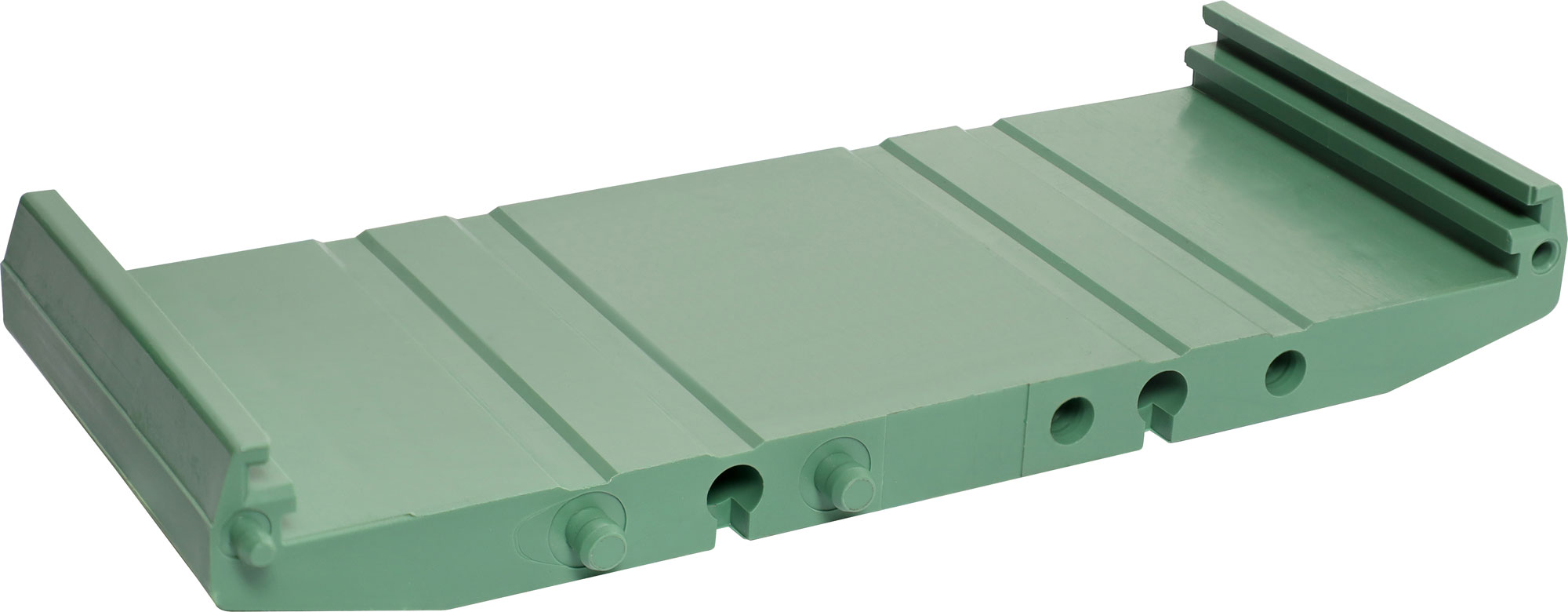

107.5x11.2mm DIN Rail Base Section

Manufacturer: Dinkle
SKU: H8560A
Base sections for DIN modules. Simply add section lengths together to obtain the required length of rail for your PCB. 107.5mm PCB width, overall width 112.7mm.
$3.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $3.64
10+ $3.36
40+ $2.91
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Base sections for DIN modules. Simply add section lengths together to obtain the required length of rail for your PCB. 107.5mm PCB width, overall width 112.7mm.

Calculating Total DIN Rail Length
The total PCB length that can be accommodated by a given section can be calculated by totalling up the total length of the base sections and adding 10mm for each endcap. Eg: 2 x 45mm bases and 1 x 11.2mm section + endcaps = 45 + 45 + 11.2 + 10 + 10 = 121.2mm

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
