Rotary Switches
Rotary switches by Altronics. Designed for rotary knob control of general circuits requiring different settings or options. Rotary switches are ideal for level controls in audio designs.
1 Pole 2-12 Position PCB Mount Rotary Switch
S3021
User Selectable Configuration
Each switch includes a toothed washer with a mating series of sockets in the switch housing to enable the switch to be configured to your specific requirement.

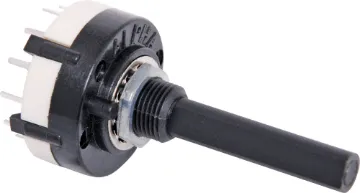

2 Pole 2-6 Position PCB Mount Rotary Switch
S3022
User Selectable Configuration
Each switch includes a toothed washer with a mating series of sockets in the switch housing to enable the switch to be configured to your specific requirement.
2 Pole 5 Position Wafer Rotary Switch
S3035
Shaft Ø: 6.35mm
Shaft Length: 30mm
Shaft Shape: Round
Contact Timing: Break before make
Contact Rating: 125V AC/DC @350mA
Termination: Solder Tag Terminals
3 Pole 2-4 Position PCB Mount Rotary Switch
S3025
User Selectable Configuration
Each switch includes a toothed washer with a mating series of sockets in the switch housing to enable the switch to be configured to your specific requirement.
3 Pole 4 Position Wafer Rotary Switch
S3034
Shaft Ø: 6.35mm
Shaft Length: 30mm
Shaft Shape: Round
Contact Timing: Break before make
Contact Rating: 125V AC/DC @350mA
Termination: Solder Tag Terminals
4 Pole 2-3 Position PCB Mount Rotary Switch
S3024
User Selectable Configuration
Each switch includes a toothed washer with a mating series of sockets in the switch housing to enable the switch to be configured to your specific requirement.

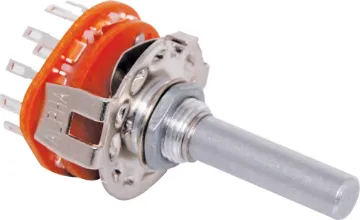

4 Pole 3 Position Wafer Rotary Switch
S3033
Shaft Ø: 6.35mm
Shaft Length: 30mm
Shaft Shape: Round
Contact Timing: Break before make
Contact Rating: 125V AC/DC @350mA
Termination: Solder Tag Terminals
