Auto Reset Circuit Breakers

Current Trip Rating: 1.5 Amp
All specifications at 25&degC
Hold Current: 100% load indefinitely
Trip Current: Within 1 hr @ 175% load
Within 1 minute @ 200% load
Max. Voltage: 120V AC or 12V DC
Dimensions: 20.6H x 10.5L x 8.7W mm

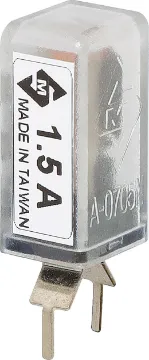

1.5A PCB Mount Auto Reset Circuit Breaker

S5621

Current Trip Rating: 1.5 Amp All specifications at 25°C Hold Current: 100% load indefinitely Trip Current: Within 1 hr @ 175% load Within 1 minute @ 200% load Max. Voltage: 120V AC or 12V DC Dimensions: 20.6H x 10.5L x 8.7W mm

Current Trip Rating: 10 Amp
All specifications at 25&degC
Hold Current: 100% load indefinitely
Trip Current: Within 1 hr @ 175% load
Within 1 minute @ 200% load
Max. Voltage: 120V AC or 12V DC
Dimensions: 20.6H x 10.5L x 8.7W mm

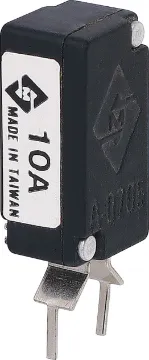

10A PCB Mount Auto Reset Circuit Breaker

S5630

Current Trip Rating: 10 Amp All specifications at 25°C Hold Current: 100% load indefinitely Trip Current: Within 1 hr @ 175% load Within 1 minute @ 200% load Max. Voltage: 120V AC or 12V DC Dimensions: 20.6H x 10.5L x 8.7W mm

Current Trip Rating: 2 Amp
All specifications at 25

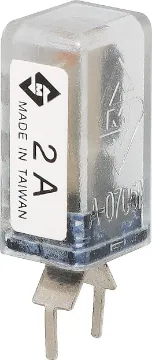

2A PCB Mount Auto Reset Circuit Breaker

S5622

Current Trip Rating: 2 Amp All specifications at 25

Current Trip Rating: 3 Amp
All specifications at 25&degC
Hold Current: 100% load indefinitely
Trip Current: Within 1 hr @ 175% load
Within 1 minute @ 200% load
Max. Voltage: 120V AC or 12V DC
Dimensions: 20.6H x 10.5L x 8.7W mm

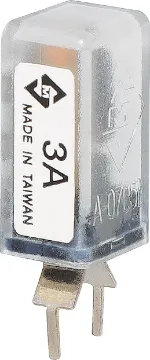

3A PCB Mount Auto Reset Circuit Breaker

S5623

Current Trip Rating: 3 Amp All specifications at 25°C Hold Current: 100% load indefinitely Trip Current: Within 1 hr @ 175% load Within 1 minute @ 200% load Max. Voltage: 120V AC or 12V DC Dimensions: 20.6H x 10.5L x 8.7W mm

Current Trip Rating: 5 Amp
All specifications at 25&degC
Hold Current: 100% load indefinitely
Trip Current: Within 1 hr @ 175% load
Within 1 minute @ 200% load
Max. Voltage: 120V AC or 12V DC
Dimensions: 20.6H x 10.5L x 8.7W mm

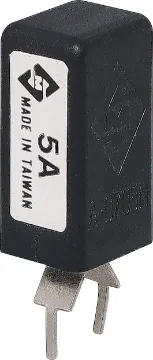

5A PCB Mount Auto Reset Circuit Breaker

S5625

Current Trip Rating: 5 Amp All specifications at 25°C Hold Current: 100% load indefinitely Trip Current: Within 1 hr @ 175% load Within 1 minute @ 200% load Max. Voltage: 120V AC or 12V DC Dimensions: 20.6H x 10.5L x 8.7W mm

Current Trip Rating: 7 Amp
All specifications at 25&degC
Hold Current: 100% load indefinitely
Trip Current: Within 1 hr @ 175% load
Within 1 minute @ 200% load
Max. Voltage: 120V AC or 12V DC
Dimensions: 20.6H x 10.5L x 8.7W mm

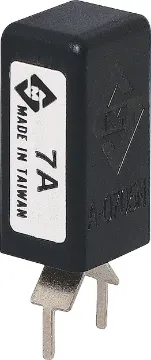

7A PCB Mount Auto Reset Circuit Breaker

S5627

Current Trip Rating: 7 Amp All specifications at 25°C Hold Current: 100% load indefinitely Trip Current: Within 1 hr @ 175% load Within 1 minute @ 200% load Max. Voltage: 120V AC or 12V DC Dimensions: 20.6H x 10.5L x 8.7W mm
