Rocker Switches

Altronics rocker range includes switches for 240V AC and 12V and 24V DC applications with or without illumination. Rocker switches provide a low profile panel mount circuit switch in differing pole designs, including SPST, DPST, SPDT etc.

View as Grid List
Sort by
Display per page

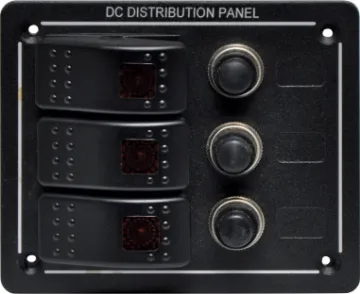

Features 3 x 20A 12V DC rated switches with red illuminated with individual 15A DC breakers. 114W x 96H x 60Dmm.

3 Way Switch Panel With Breakers

S2750
Features 3 x 20A 12V DC rated switches with red illuminated with individual 15A DC breakers. 114W x 96H x 60Dmm.
4WD labels to suit S1026-9 rocker switches.

4WD Icon Labels To Suit S1026-9

SA1026
4WD labels to suit S1026-9 rocker switches.
Mains cord rocker switch. Suits 3 core or fig 8 two wire cables. Double pole. 240VAC 10A rated.

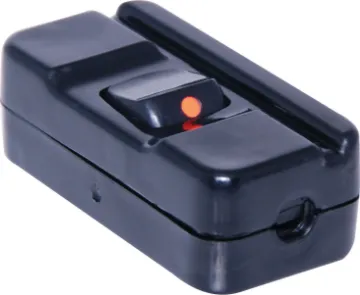

Cordline Lamp Rocker Switch Black 10A HPM

P8238
Mains cord rocker switch. Suits 3 core or fig 8 two wire cables. Double pole. 240VAC 10A rated.

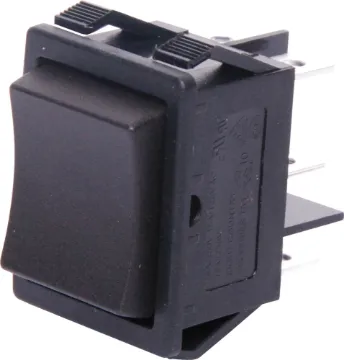

A heavy duty DPDT 'centre-off' panel mount rocker switch. The switch configuration is momentary each way, returning to centre-off after release.

DPDT Heavy Duty Centre-Off Spring Return Rocker Switch

S3243
A heavy duty DPDT 'centre-off' panel mount rocker switch. The switch configuration is momentary each way, returning to centre-off after release.
A full illuminated DPDT heavy duty rocker switch for panel mounting into equipment and control panels. Electrical contacts are rated to 15A @ 250V AC.

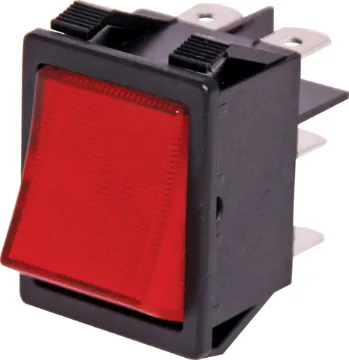

DPDT Heavy Duty Red Illuminated Rocker Switch

S3242B
A full illuminated DPDT heavy duty rocker switch for panel mounting into equipment and control panels. Electrical contacts are rated to 15A @ 250V AC.

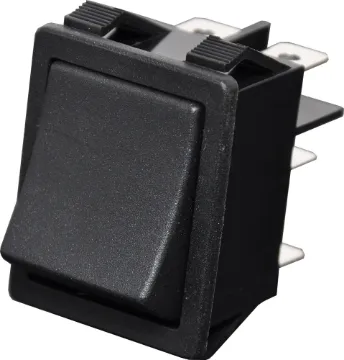

Heavy duty DPDT panel mount rocker switch with a 15A @ 250V AC contact rating for high current mains applications. Excellent mechanical and electrical life specifications.

DPDT Heavy Duty Rocker Switch

S3245A
Heavy duty DPDT panel mount rocker switch with a 15A @ 250V AC contact rating for high current mains applications. Excellent mechanical and electrical life specifications.
Switch Type: DPDT Alternate Rocker Switch Contact Rating: 3A @ 250V AC Panel Cutout: 12mm&Oslash Panel Thickness: 6mm Max.

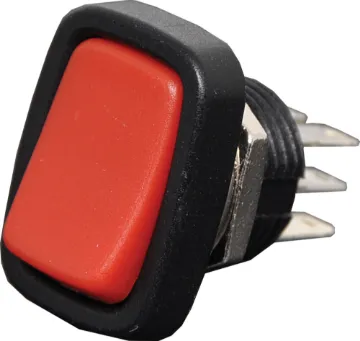

DPDT Red Rocker Switch

S3180
Switch Type: DPDT Alternate Rocker Switch Contact Rating: 3A @ 250V AC Panel Cutout: 12mmØ Panel Thickness: 6mm Max.
The Salecom range of miniature and sub-miniature rocker switches are pin for pin compatible with several other leading brands but at a fraction of the cost. DPDT solder tail mini rocker switch.

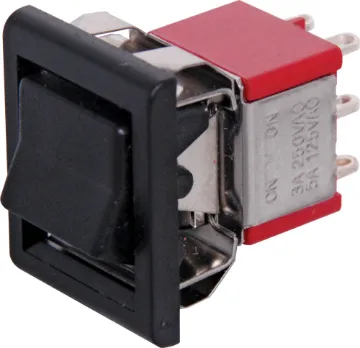

DPDT Solder Tail Mini Rocker Switch

S1270
The Salecom range of miniature and sub-miniature rocker switches are pin for pin compatible with several other leading brands but at a fraction of the cost. DPDT solder tail mini rocker switch.

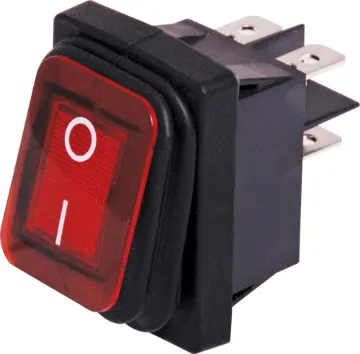

An IP65 rated weatherproof alternate rocker switch for use in switch panels where the switch may be exposed to the elements. Ideal for use on industrial machinery, pumps etc.

DPST 16A IP65 Weatherproof Rocker Switch

S3244
An IP65 rated weatherproof alternate rocker switch for use in switch panels where the switch may be exposed to the elements. Ideal for use on industrial machinery, pumps etc.
Picture of DPST 16A IP68 Rocker Switch Enclosure
New
RoHS

DPST 16A IP68 Rocker Switch Enclosure

SW3244
An IP68 rated weatherproof alternate rocker switch fitted to an inline enclosure with weatherproof cable glands.
Switch type: Rocker switch, DPST Contact rating: 10A @ 250V ac / 24V dc Neon: Blue, 12/24V dc Electrical life: 20,000 cycles Panel thickness: 4mm Mechanical life: 50,000 cycles Contact resistance: <50m&#937 Insulation resistance: >100M&#937 Dielectric strength: >1500V ac 1 minute

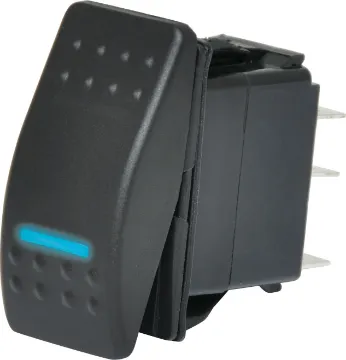

DPST Blue Illuminated IP66 Marine 12V/24V Rocker Switch

S1022
Switch type: Rocker switch, DPST Contact rating: 10A @ 250V ac / 24V dc Neon: Blue, 12/24V dc Electrical life: 20,000 cycles Panel thickness: 4mm Mechanical life: 50,000 cycles Contact resistance: <50mΩ Insulation resistance: >100MΩ Dielectric strength: >1500V ac 1 minute
Contact Rating: 6A @ 250V AC Neon Colour: Blue Neon Voltage: 240V AC Panel Cutout: 19.2 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20m&Omega; Insulation Resistance: >1000M&Omega; Dielectric Strength: >1500V 1 Minute >3000V Between Poles

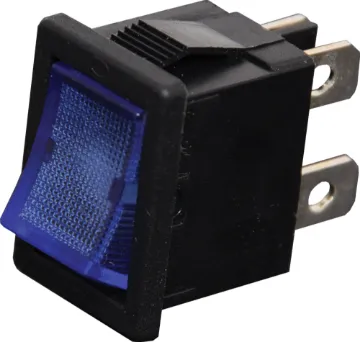

DPST Blue Illuminated Mini Rocker Switch

S3218
Contact Rating: 6A @ 250V AC Neon Colour: Blue Neon Voltage: 240V AC Panel Cutout: 19.2 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20mΩ Insulation Resistance: >1000MΩ Dielectric Strength: >1500V 1 Minute >3000V Between Poles
Contact Rating: 6A @ 250V AC Neon Colour: Green Neon Voltage: 240V AC Panel Cutout: 19.2 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20m&Omega; Insulation Resistance: >1000M&Omega; Dielectric Strength: >1500V 1 Minute >3000V Between Poles

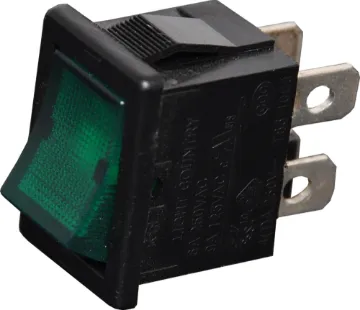

DPST Green Illuminated Mini Rocker Switch

S3216
Contact Rating: 6A @ 250V AC Neon Colour: Green Neon Voltage: 240V AC Panel Cutout: 19.2 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20mΩ Insulation Resistance: >1000MΩ Dielectric Strength: >1500V 1 Minute >3000V Between Poles
A DPST illuminated rocker switch with red neon. Rated to 10A @ 250V AC for use with both low voltage and high voltage mains circuits.

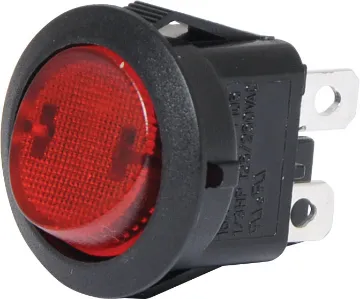

DPST Illuminated 10A Rocker Switch

S3186
A DPST illuminated rocker switch with red neon. Rated to 10A @ 250V AC for use with both low voltage and high voltage mains circuits.
Contact Rating: 6A @ 250V AC Panel Cutout: 19.2 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20mR Insulation Resistance: >1000MR Dielectric Strength: >1500V 1 Minute >3000V Between Poles

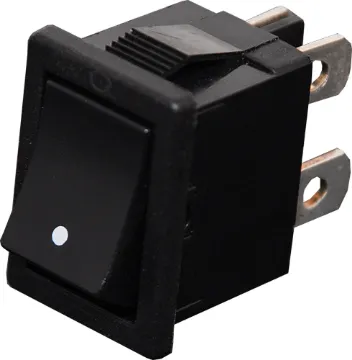

DPST Mini Rocker Switch

S3212
Contact Rating: 6A @ 250V AC Panel Cutout: 19.2 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20mR Insulation Resistance: >1000MR Dielectric Strength: >1500V 1 Minute >3000V Between Poles

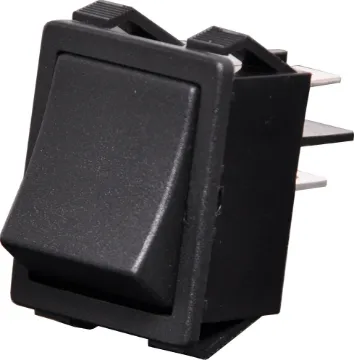

A heavy duty DPDT momentary ON/OFF panel mount rocker switch. The switch configuration is momentary one way, returning to centre-off after release. Rated for 16A @ 250V AC for use with mains powered equipment.

DPST Momentary On/Off Heavy Duty Rockers

S3241
A heavy duty DPDT momentary ON/OFF panel mount rocker switch. The switch configuration is momentary one way, returning to centre-off after release. Rated for 16A @ 250V AC for use with mains powered equipment.

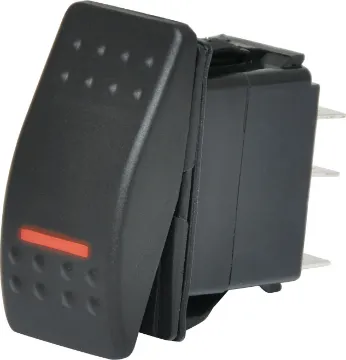

Switch type: Rocker switch, DPST Contact rating: 10A @ 250V ac / 24V dc Neon: Red, 12/24V dc Electrical life: 20,000 cycles Panel thickness: 4mm Mechanical life: 50,000 cycles Contact resistance: <50m&#937 Insulation resistance: >100M&#937 Dielectric strength: >1500V ac 1 minute

DPST Red Illuminated IP66 Marine 12V/24V Rocker Switch

S1020
Switch type: Rocker switch, DPST Contact rating: 10A @ 250V ac / 24V dc Neon: Red, 12/24V dc Electrical life: 20,000 cycles Panel thickness: 4mm Mechanical life: 50,000 cycles Contact resistance: <50mΩ Insulation resistance: >100MΩ Dielectric strength: >1500V ac 1 minute
Contact Rating: 6A @ 250V AC Neon Colour: Red Neon Voltage: 240V AC Panel Cutout: 19.2 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20m&Omega; Insulation Resistance: >1000M&Omega; Dielectric Strength: >1500V 1 Minute >3000V Between Poles

DPST Red Illuminated Mini Rocker Switch

S3217
Contact Rating: 6A @ 250V AC Neon Colour: Red Neon Voltage: 240V AC Panel Cutout: 19.2 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20mΩ Insulation Resistance: >1000MΩ Dielectric Strength: >1500V 1 Minute >3000V Between Poles

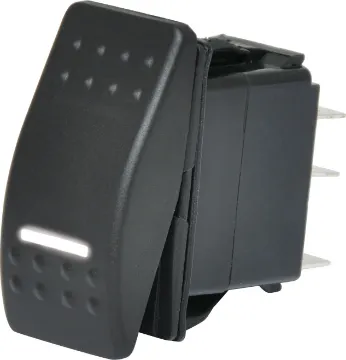

Switch type: Rocker switch, DPST Contact rating: 10A @ 250V ac / 24V dc Neon: White, 12/24V dc Electrical life: 20,000 cycles Panel thickness: 4mm Mechanical life: 50,000 cycles Contact resistance: <50m&#937 Insulation resistance: >100M&#937 Dielectric strength: >1500V ac 1 minute

DPST White Illuminated IP66 Marine 12V/24V Rocker Switch

S1023
Switch type: Rocker switch, DPST Contact rating: 10A @ 250V ac / 24V dc Neon: White, 12/24V dc Electrical life: 20,000 cycles Panel thickness: 4mm Mechanical life: 50,000 cycles Contact resistance: <50mΩ Insulation resistance: >100MΩ Dielectric strength: >1500V ac 1 minute
A 2 core in-line low voltage DC rocker switch. Suitable for currents up to 6A. Frame and actuator constructed from UL94V-2 nylon. Terminals are silver plated brass.

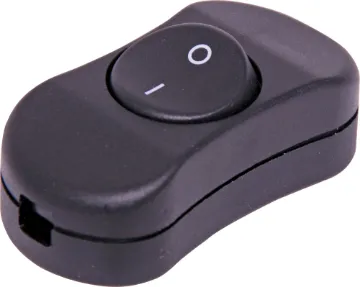

Low Voltage In Line Rocker Switch 6A

P8205A
A 2 core in-line low voltage DC rocker switch. Suitable for currents up to 6A. Frame and actuator constructed from UL94V-2 nylon. Terminals are silver plated brass.
Marine labels to suit S1026-9 rocker switches.

Marine Icon Labels To Suit S1026-9

SB1026
Marine labels to suit S1026-9 rocker switches.
Compatible with P 0690, P 0694 USB chargers and S 1020 marine rocker switch. Each modular section dove-tails together for as many as desired.

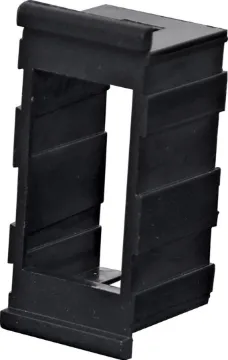

Modular Centre Switch Style Mounting Fascias

P0689
Compatible with P 0690, P 0694 USB chargers and S 1020 marine rocker switch. Each modular section dove-tails together for as many as desired.
Compatible with P 0690A, P 0691, P 0694, and S 1020. Each modular section dove-tails together for as many as desired.
New
RoHS

Modular Centre Switch Style Mounting Fascias

P0689A
Compatible with P 0690A, P 0691, P 0694, and S 1020. Each modular section dove-tails together for as many as desired.
Compatible with P 0690, P 0694 USB chargers and S 1020 marine rocker switch. Each modular section dove-tails together for as many as desired.

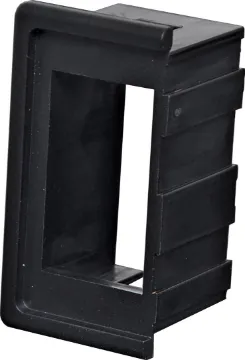

Modular Outer Switch Style Mounting Fascias

P0688
Compatible with P 0690, P 0694 USB chargers and S 1020 marine rocker switch. Each modular section dove-tails together for as many as desired.
Compatible with P 0690A, P 0691, P 0694, and S 1020. Each modular section dove-tails together for as many as desired.
New
RoHS

Modular Outer Switch Style Mounting Fascias

P0688A
Compatible with P 0690A, P 0691, P 0694, and S 1020. Each modular section dove-tails together for as many as desired.
