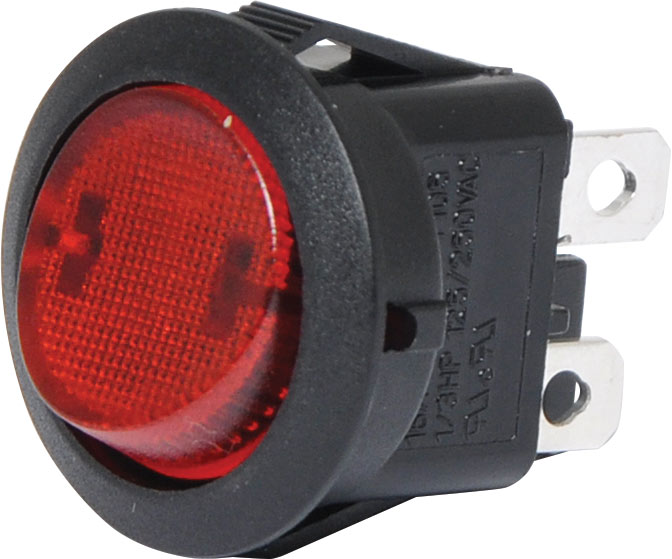

DPST Illuminated 10A Rocker Switch

Be the first to review this product
A DPST illuminated rocker switch with red neon. Rated to 10A @ 250V AC for use with both low voltage and high voltage mains circuits.
SKU: S3186
$5.18
Per ea
QuantityPrice
ea$5.18
10+$4.64
40+$4.32

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A DPST illuminated rocker switch with red neon. Rated to 10A @ 250V AC for use with both low voltage and high voltage mains circuits.

s3186 rocker switch diagram

Specifications

Contact Rating: 10A @ 250V AC

  • Illumination: Neon
  • Panel Thickness: 2.5mm max.
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 100,000 cycles
  • Contact Resistance: 30mΩ max.
  • Insulation Resistance: >100MΩ @ 500V DC
  • Dielectric Strength: 1500V AC

12 Months

We Offer 12 Months for this product
