Panel Meters

For applications requiring a professional finish and digital accuracy. Includes shunt.

Full Scale Deflection: 1A Dimensions: 58W x 52H Resistance: 0.0582&Omega

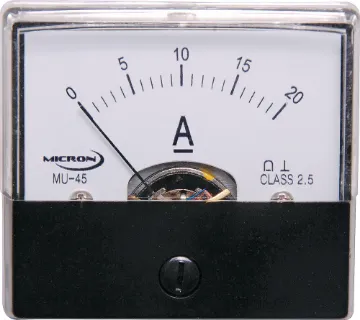

Full Scale Deflection: 20A Dimensions: 58W x 52H Resistance: 0.004&Omega

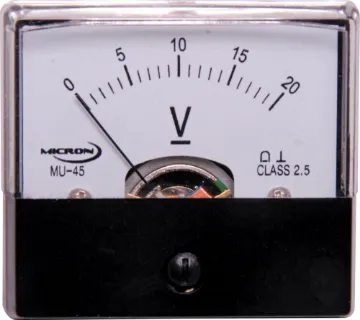

Full Scale Deflection: 20V Dimensions: 58W x 52H Resistance: 20k&Omega

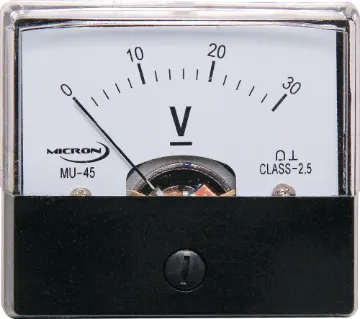

Full Scale Deflection: 30V Dimensions: 58W x 52H Resistance: 30k&Omega

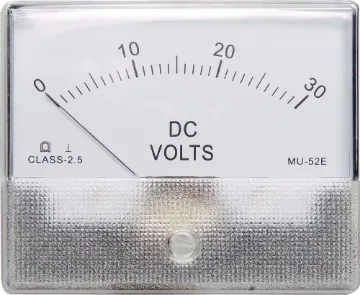

Quality Class 2.5 MU 52 E Overall dimensions 80W x 66H. Bolt mounting centres 64W x 48H. 52mm hole required. Connections via threaded nut inserts on rear panel. Nuts and washers provided. FSD: 30V Resistance: 29.4k ohm

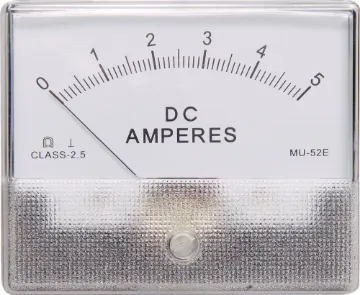

Quality Class 2.5 MU 52 E Overall dimensions 80W x 66H. Bolt mounting centres 64W x 48H. 52mm hole required. Connections via threaded nut inserts on rear panel. Nuts and washers provided. FSD: 5A Resistance: 3.2 ohm

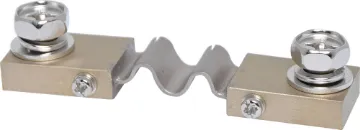

Dimensions: 81.5L x 20W x 18H (excluding bolts) Tolerance: 0.5% Voltage Drop @ Max Current: 100mV Resistance:1mΩ

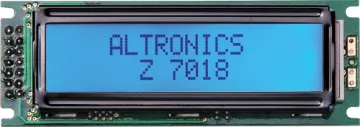

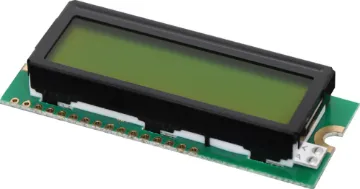

This compact LCD module has 96 inbuilt ASCII characters as well as 92 special letters and 8 custom characters, which can be displayed on a 16 character by 2 line screen. The module will hold the current input on the display using its own built in memory,

Module size: 85 x 30 x 9mm Viewing area: 65 x 16mm Character size: 2.96 x 5.56mm Supply voltage: 5V DC Power supply current: 195mA (with LED) Duty: 1/16 Controller: KS0066 Application: 1RU Rack Equipment Frame colour: Black Backlight: LED blue Application: General pur

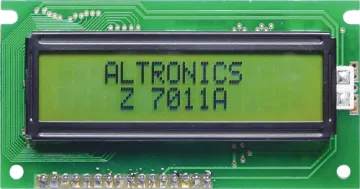

This compact LCD module has 96 inbuilt ASCII characters as well as 92 special letters and 8 custom characters, which can be displayed on a 16 character by 2 line screen. The module will hold the current input on the display using its own built in memory,

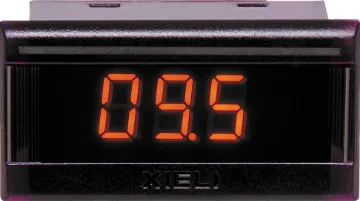

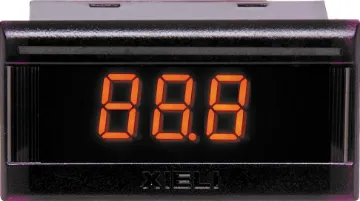

For applications requiring a professional finish and digital accuracy. Automatic zero calibration, polarity sensing and self powered design makes connection easy.

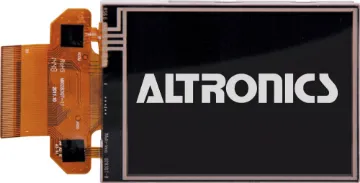

Module size: 50 x 69.2 x 4.2mm Viewing area: 44.8 x 63.1mm Pixel size: 1 pixel (0.18 x 0.18mm) Supply voltage: 3.2V DC Power supply current: 18mA (with LED) Viewing angle: 60º Driver IC: ILI9341 Interface: 8080 System 8 or 16 bit Application: General purpose

Viewing angle: Free LCD Screen: 43.20 x 57.60 Display Mode: Normally Black Operating Temperature: -20°C ~ +60°C Storage Temperature: -30°C ~ +70°C LCD Driver IC: ILI9341 Backlight: 6 Chip white LED. Vf=3.2V, If=120mA General Tolerance: ±0.2 ROHS request Brightness: 400cd/m(squared)

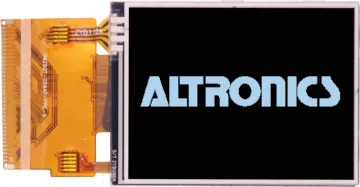

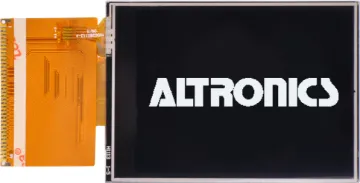

320 x 240 TFT touchscreen with 50pin CPU, RGB, SPI interface which allows full access to all the functions of the on-board controller chip.

For applications requiring a professional finish and digital accuracy. Automatic zero calibration, polarity sensing and self powered design makes connection easy.

Overall dimensions 62H x 91W including bevelled mounting frame. Panel cutout size required 43H x 84W. Connections are via solder tags. Mounting hardware provided.
