16x2 Wide Angle Green LED Backlit Alphanumeric LCD

Be the first to review this product

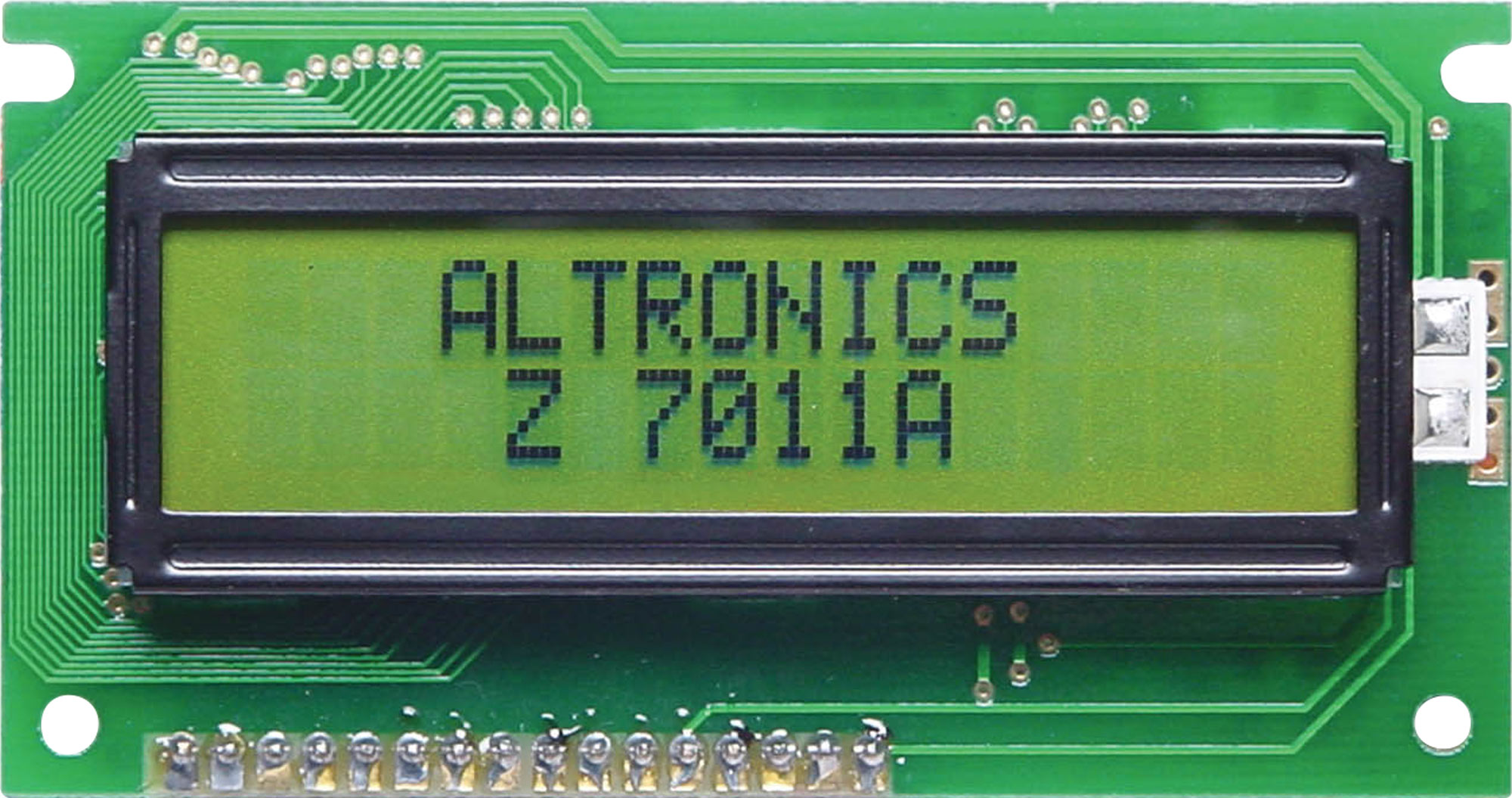

This compact LCD module has 96 inbuilt ASCII characters as well as 92 special letters and 8 custom characters, which can be displayed on a 16 character by 2 line screen. The module will hold the current input on the display using its own built in memory,
SKU: Z7011A
$24.09
Per ea
QuantityPrice
ea$24.09
2+$22.50
5+$20.86

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This compact LCD module has 96 inbuilt ASCII characters as well as 92 special letters and 8 custom characters, which can be displayed on a 16 character by 2 line screen. The module will hold the current input on the display using its own built in memory, making it easy to drive.

Specifications

Module Size: 84 x 44 x 8.8mm

  • Viewing Area: 65 x 16mm
  • Character Size: 2.96 x 5.56mm
  • Contrast Ratio: O = 10
  • Number of Characters: 16 Characters by 2 lines
  • Supply Voltage: 5V DC
  • Power Supply Current: 132mA Typical
  • Viewing Angle: STN wide angle bottom view
  • Duty: 1/16

12 Months

We Offer 12 Months for this product
