RJ14

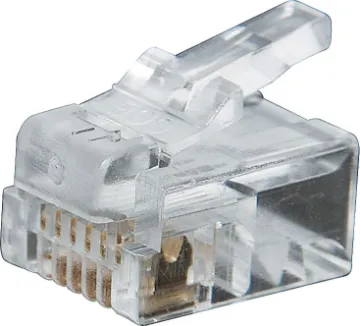

6P4C RJ14 Modular Plug (Suit Stranded Cable)
P1414A
Suits stranded conductors. Cat 5 rated. 6P4C RJ14.

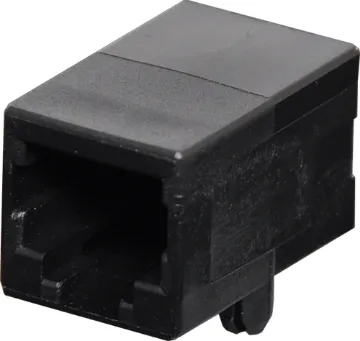

6P4C RJ14 Modular Socket Low Profile Enclosed PCB Mount
P1434
Housing: PBT Mixed 15% Glass Fibre, 94V-O
Contact: Gold Plated Phosphor Bronze Alloy
Insulation Resistance: 10M Ohm Minimum
Contact Resistance: 20M Ohm Max. per contact
Dielectric Withstand Voltage: 1000V AC RMS 60Hz
Current Rating: 1.5 Amps
Mechanical Life: 500 cycles minimum
Retention Strength: 7.7kg between plug & socket

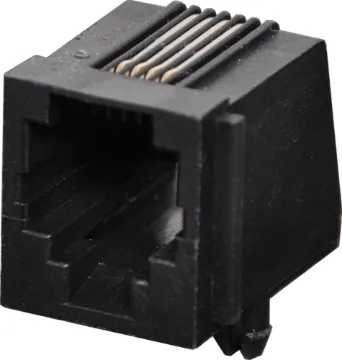

6P4C RJ14 Modular Socket Low Profile PCB Mount
P1444
Housing: PBT Mixed 15% Glass Fibre, 94V-O
Contact: Gold Plated Phosphor Bronze Alloy
Insulation Resistance: 10M Ohm Minimum
Contact Resistance: 20M Ohm Max. per contact
Dielectric Withstand Voltage: 1000V AC RMS 60Hz
Current Rating: 1.5 Amps
Mechanical Life: 500 cycles minimum
Retention Strength: 7.7kg between plug & socket

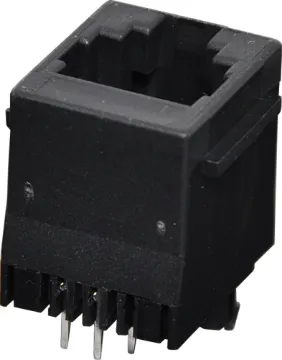

6P4C RJ14 Modular Socket Top Entry PCB Mount
P1464
Housing: PBT Mixed 15% Glass Fibre, 94V-O
Contact: Gold Plated Phosphor Bronze Alloy
Insulation Resistance: 10M Ohm Minimum
Contact Resistance: 20M Ohm Max. per contact
Dielectric Withstand Voltage: 1000V AC RMS 60Hz
Current Rating: 1.5 Amps
Mechanical Life: 500 cycles minimum
Retention Strength: 7.7kg between plug & socket
