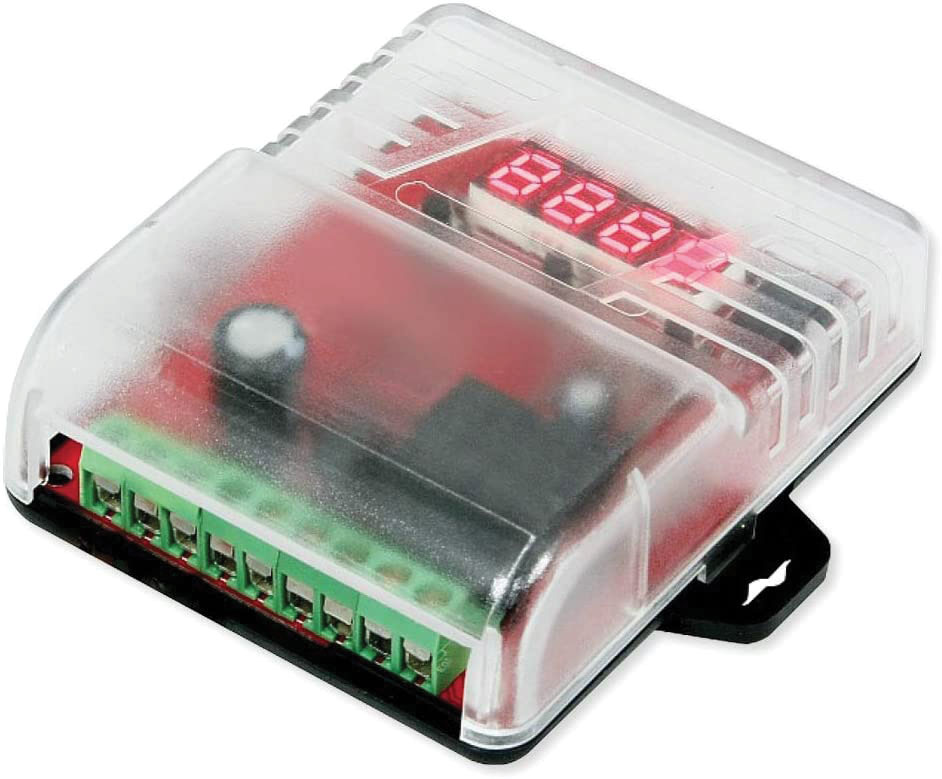

SA-025MQ Multi-Function Timer / Counter

Manufacturer: Enforcer
Be the first to review this product
The SA-025MQ programmable timer provides a way to trigger events via its 10A NO/NC/COM relay output, plus count whenever an event occurs.
SKU: S0103
$63.59
Per ea
QuantityPrice
ea$63.59
2+$57.23
4+$50.86

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The SA-025MQ programmable timer provides a way to trigger events via its 10A NO/NC/COM relay output, plus count whenever an event occurs. It is a very flexible design which has seven programmable modes; auto door/gate closure, guard timer, pulse extender/false trigger avoidance, timed relay output, timed pulse relay, input counter, input timer).

Features

  • Program relay to trigger at start or end of timed cycle
  • Pulse or steady on relay mode
  • Low current draw
  • Timer can trigger LED or buzzer
  • 10A @ 24V DC NO/NC/COM dry form C relay
  • 12V-24V DC operation
  • LED event counter display.

Specifications

Rating: 10A 24V DC

  • Timer duration: 1s to 11h 59min
  • Trigger: NC negative, NO positive
  • Reset: NO negative
  • Input: 12 or 24V DC
  • Standby current draw: 20-40mA
  • Energised current draw: 65-100mA
  • Size: 83 x 63 x 27.5mm
