Pluggable PCB Sockets
New
RoHS

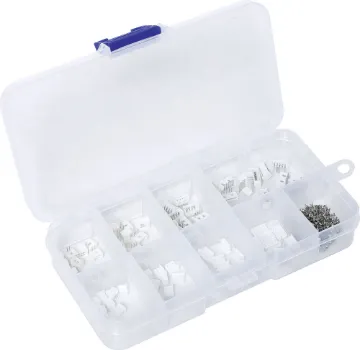

1.25mm Boxed Header Connector Kit
K9645
An assortment of right 1.25mm pitch angle boxed PCB connectors and matching plugs in 2, 3, 4 and 5 way varieties.

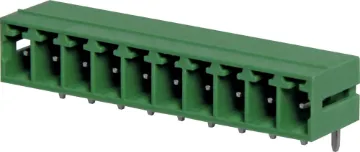

10 Way 3.81mm Horiz. PCB Mnt Boxed Pluggable Skt
P2680
Horizontal Boxed Mount
Rated 8A at 150V.
PCB pin diameter
1.4 to 1.6mm
10 Way 5.08mm Horiz. PCB Mnt Boxed Pluggable Skt
P2600
10 Way.
Horizontal Mount Boxed
Rated 10A at 300V
10 Way 5.08mm Horiz. PCB Mount Pluggable Skt
P2560
10 Way.
Horizontal Mount.
90 Degree Pins
Rated 10A at 300V

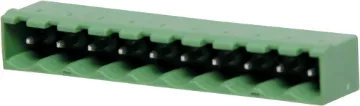

10 Way 5.08mm Vert. PCB Mount Boxed Pluggable Skt
P2580
10 Way.
Vertical Mount Boxed
Rated 10A at 300V

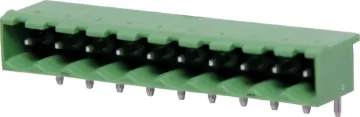

10 Way 5mm Horiz. PCB Mnt Boxed Pluggable Skt
P2900
10 Way.
Horizontal Mount Boxed.
Rated 10A at 300V.

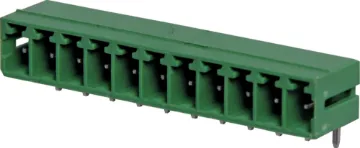

11 Way 3.81mm Horiz. PCB Mnt Boxed Pluggable Skt
P2681
11 Way.
Horizontal Mount Boxed
Rated 8A at 150V.
12 Way 3.81mm Horiz. PCB Mnt Boxed Pluggable Skt
P2682
12 Way.
Horizontal Mount Boxed
Rated 8A at 150V.

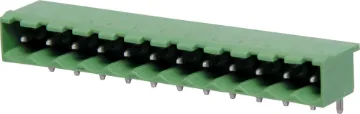

12 Way 5.08mm Horiz. PCB Mnt Boxed Pluggable Skt
P2602
12 Way.
Horizontal Mount Boxed
Rated 10A at 300V
12 Way 5.08mm Horiz. PCB Mount Pluggable Skt
P2562
12 Way.
Horizontal Mount.
90 Degree Pins
Rated 10A at 300V

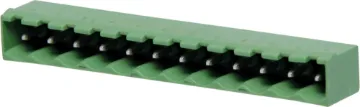

12 Way 5.08mm Vert. PCB Mount Boxed Pluggable Skt
P2582
12 Way.
Vertical Mount Boxed
Rated 10A at 300V
12 Way 5mm Horiz. PCB Mnt Boxed Pluggable Skt
P2902
12 Way.
Horizontal Mount Boxed.
Rated 10A at 300V.

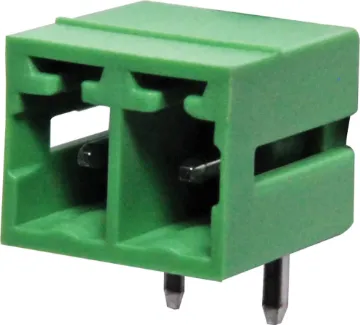

2 Way 3.81mm Horiz. PCB Mnt Boxed Pluggable Skt
P2672
Horizontal Boxed Mount
Rated 8A at 150V.
PCB pin diameter
1.4 to 1.6mm

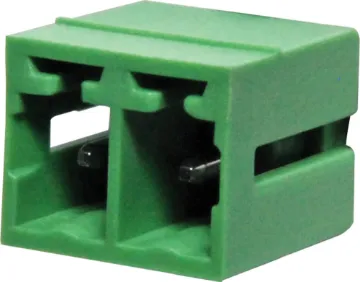

2 Way 3.81mm Vert. PCB Mnt Boxed Pluggable Skt
P2692
Vertical Mount
Rated 8A at 150V
PCB pin diameter 1.4 mm.

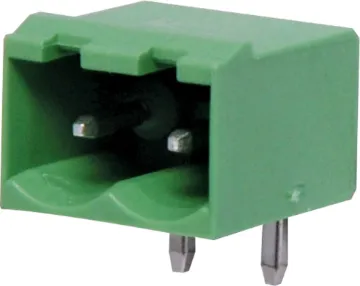

2 Way 5.08mm Horiz. PCB Mount Boxed Pluggable Skt (Non UL)
PE2592
Non UL approved version of P 2592.
Boxed Horizontal Mount
Rated 10A at 300V

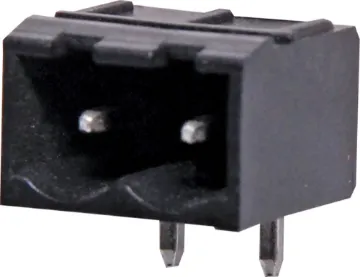

2 Way 5.08mm Horiz. PCB Mount Boxed Reflow Skt
P2792
Constructed from high temperature plastic suitable for reflow soldering.
Boxed Horizontal Mount
Rated 10A at 300V

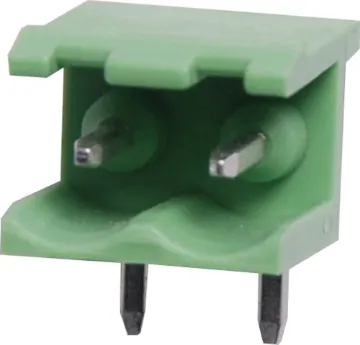

2 Way 5.08mm Horiz. PCB Mount Pluggable Header
P2832
Pitch: 5.08mm
Rated 12A at 300V
Horizontal Mount
