A huge assortment of single row header connectors for making your own custom length wiring harnesses or prototyping cables. Pack contains a variety of female connector housings in different sizes plus male and female pin connector crimps.

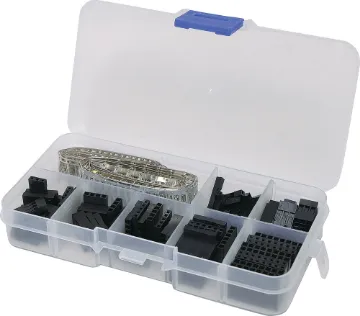

310pc 2.54mm Header Connector Kit

K9642
A huge assortment of single row header connectors for making your own custom length wiring harnesses or prototyping cables. Pack contains a variety of female connector housings in different sizes plus male and female pin connector crimps.
Plug height: 15.5mm, Pin size: 1mm, 18A rated. 36 way strip, can cut to any length. Male

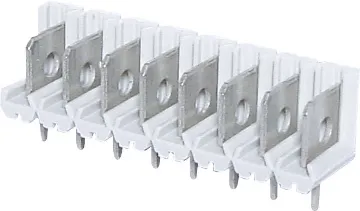

36 Way 5mm PCB Mnt Pluggable Terminal Socket

P2372
Plug height: 15.5mm, Pin size: 1mm, 18A rated. 36 way strip, can cut to any length. Male
3 x 3 way pluggable socket for PCB mounting. Rated 8A at 300V.
New
RoHS

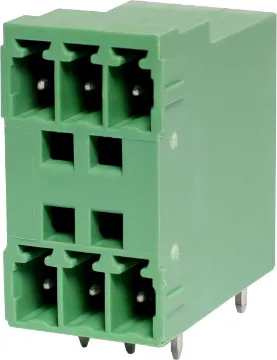

3x3 Way 3.81mm Horizontal PCB Mount Pluggable Skt

P2926
3 x 3 way pluggable socket for PCB mounting. Rated 8A at 300V.
Horizontal Mount Rated 10A at 300V

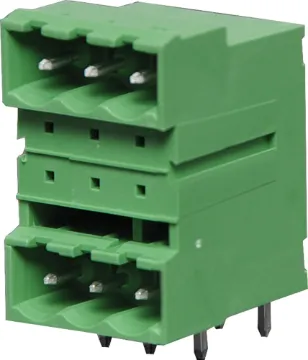

3x3 Way 5.08mm Horizontal PCB Mount Pluggable Skt

P2933
Horizontal Mount Rated 10A at 300V
4 Way. Horizontal Mount Boxed Rated 8A at 150V.

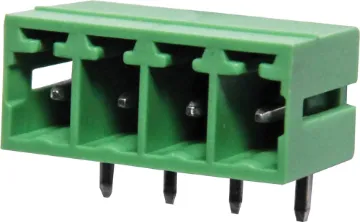

4 Way 3.81mm Horiz. PCB Mnt Boxed Pluggable Skt

P2674
4 Way. Horizontal Mount Boxed Rated 8A at 150V.
4 Way. Vertical Mount Boxed Rated 8A at 150V

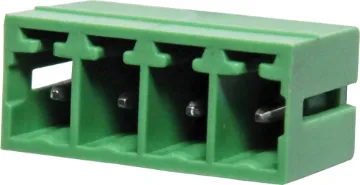

4 Way 3.81mm Vert. PCB Mnt Boxed Pluggable Skt

P2694
4 Way. Vertical Mount Boxed Rated 8A at 150V
4 Way. Horizontal Mount Boxed Rated 10A at 300V

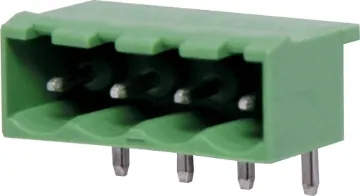

4 Way 5.08mm Horiz. PCB Mount Boxed Pluggable Skt

P2594
4 Way. Horizontal Mount Boxed Rated 10A at 300V
Non UL approved version of P 2594. Boxed Horizontal Mount Rated 10A at 300V

4 Way 5.08mm Horiz. PCB Mount Boxed Pluggable Skt (Non UL)

PE2594
Non UL approved version of P 2594. Boxed Horizontal Mount Rated 10A at 300V
Boxed Horizontal Mount Rated 10A at 300V PCB pin diameter 1.2mm.

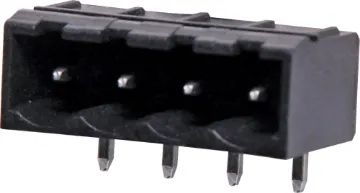

4 Way 5.08mm Horiz. PCB Mount Boxed Reflow Skt

P2794
Boxed Horizontal Mount Rated 10A at 300V PCB pin diameter 1.2mm.
Horizontal Mount Rated 12A at 300V

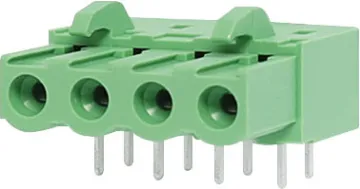

4 Way 5.08mm Horiz. PCB Mount Pluggable Header

P2834
Horizontal Mount Rated 12A at 300V
4 Way. Horizontal Mount. 90 Degree Pins Rated 10A at 300V

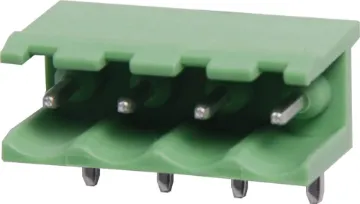

4 Way 5.08mm Horiz. PCB Mount Pluggable Skt

P2554
4 Way. Horizontal Mount. 90 Degree Pins Rated 10A at 300V
4 Way. Vertical Mount Boxed Rated 10A at 300V

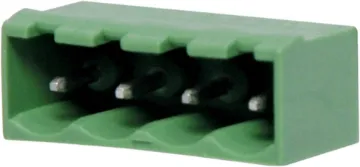

4 Way 5.08mm Vert. PCB Mount Boxed Pluggable Skt

P2574
4 Way. Vertical Mount Boxed Rated 10A at 300V
Non UL approved version of P 2574.

4 Way 5.08mm Vert. PCB Mount Boxed Pluggable Skt (Non UL)

PE2574
Non UL approved version of P 2574.
Constructed from high temperature plastic suitable for reflow soldering. Vertical Mount Boxed Rated 10A at 300V PCB pin diameter 1.2mm.

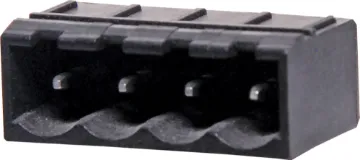

4 Way 5.08mm Vert. PCB Mount Boxed Reflow Skt

P2774
Constructed from high temperature plastic suitable for reflow soldering. Vertical Mount Boxed Rated 10A at 300V PCB pin diameter 1.2mm.
4 Way. Vertical Mount. Rated 10A at 300V.

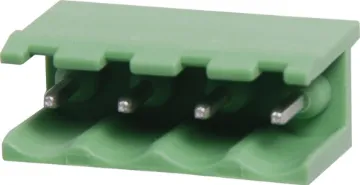

4 Way 5.08mm Vert. PCB Mount Pluggable Skt

P2534
4 Way. Vertical Mount. Rated 10A at 300V.
4 Way. Horizontal Mount Boxed. Rated 10A at 300V.

4 Way 5mm Horiz. PCB Mount Boxed Pluggable Skt

P2894
4 Way. Horizontal Mount Boxed. Rated 10A at 300V.
Vertical mount Rated 10A at 300V PCB pins 1.2mm dia..

4 Way 5mm Vert. PCB Mount Boxed Pluggable Skt

P2874
Vertical mount Rated 10A at 300V PCB pins 1.2mm dia..
4 Way. Horizontal Mount. Rated 20A at 300V. PCB pins 1.5mm diameter. Dinkle Series ECH762R

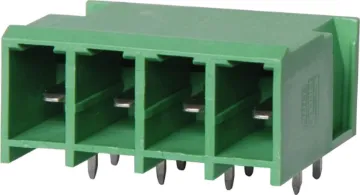

4 Way 7.62mm Horiz PCB Mount Pluggable Skt

P4344
4 Way. Horizontal Mount. Rated 20A at 300V. PCB pins 1.5mm diameter. Dinkle Series ECH762R
Vertical Mount. Rated 20A at 300V. Dinkle Series ECH762V

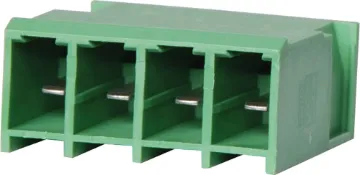

4 Way 7.62mm Vert PCB Mount Pluggable Skt

P4324
Vertical Mount. Rated 20A at 300V. Dinkle Series ECH762V
4 x 4 way pluggable socket for PCB mounting. Rated 8A at 300V.
New
RoHS

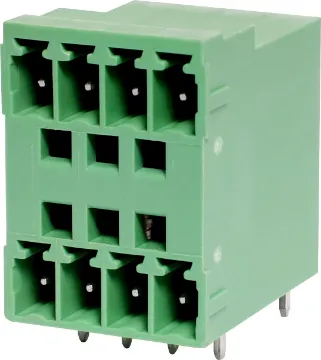

4x4 Way 3.81mm Horizontal PCB Mount Pluggable Skt

P2928
4 x 4 way pluggable socket for PCB mounting. Rated 8A at 300V.
Horizontal Mount Rated 10A at 300V

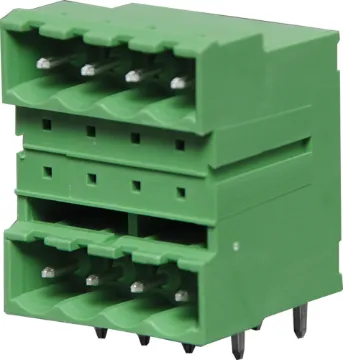

4x4 Way 5.08mm Horizontal PCB Mount Pluggable Skt

P2934
Horizontal Mount Rated 10A at 300V
5 Way. Horizontal Mount Boxed Rated 8A at 150V.

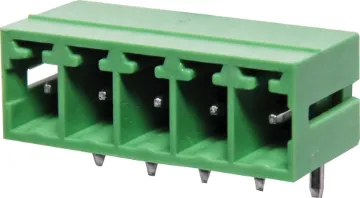

5 Way 3.81mm Horiz. PCB Mnt Boxed Pluggable Skt

P2675
5 Way. Horizontal Mount Boxed Rated 8A at 150V.
5 Way. Vertical Mount Boxed Rated 8A at 150V

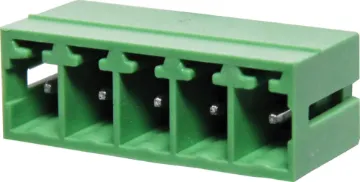

5 Way 3.81mm Vert. PCB Mnt Boxed Pluggable Skt

P2695
5 Way. Vertical Mount Boxed Rated 8A at 150V
5 Way. Horizontal Mount Boxed Rated 10A at 300V

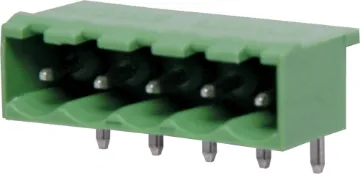

5 Way 5.08mm Horiz. PCB Mount Boxed Pluggable Skt

P2595
5 Way. Horizontal Mount Boxed Rated 10A at 300V
Non UL approved version of P 2595. Boxed Horizontal Mount Rated 10A at 300V

5 Way 5.08mm Horiz. PCB Mount Boxed Pluggable Skt (Non UL)

PE2595
Non UL approved version of P 2595. Boxed Horizontal Mount Rated 10A at 300V
