Key Switches

Key Switches offer a secure way to switch circuits on/off in industrial control applications. The Altronics key switch range is ideal fo OEMs of access control equipment requiring key operation.

View as Grid List
Sort by
Display per page
Key removable in locked position.

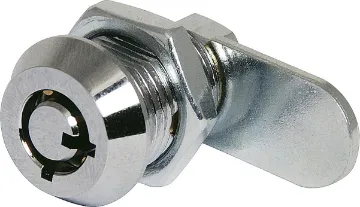

11mm 1001 Tubular Keyed Cam Lock

S2541
Key removable in locked position.
8004 removable key .only

16mm 8004 Key Cam Lock

S2551
8004 removable key .only
Key removable in either position. Blank Key To Suit (S 2550)

16mm Random Keyed Cam Lock

S2550
Key removable in either position. Blank Key To Suit (S 2550)
This key switch and cam lock are available to OEM customers with a requirement for 003 key specification. This model is only available in a minimum quantity of 25 pieces. Contact our parent company Altronic Distributors for competitive pricing on this it

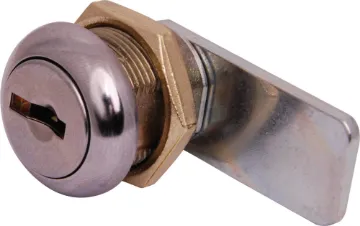

19mm 003 Key Cam Lock

S2554
This key switch and cam lock are available to OEM customers with a requirement for 003 key specification. This model is only available in a minimum quantity of 25 pieces. Contact our parent company Altronic Distributors for competitive pricing on this it
Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied with each switch. Rated 2A @ 250V AC.

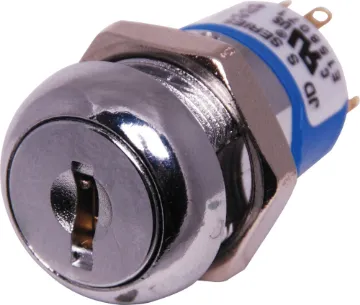

2 Position 003 Key DPDT Keyswitch

S2605
Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied with each switch. Rated 2A @ 250V AC.
This key switch and cam lock are available to OEM customers with a requirement for 003 key specification. This model is only available in a minimum quantity of 25 pieces. Contact our parent company Altronic Distributors for competitive pricing on this i

2 Position DPDT 003 Key Keyswitch

S2612
This key switch and cam lock are available to OEM customers with a requirement for 003 key specification. This model is only available in a minimum quantity of 25 pieces. Contact our parent company Altronic Distributors for competitive pricing on this i
Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied with each switch. Rated 2A @ 250V AC.

2 Position DPDT 606 Key Keyswitch

S2614
Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied with each switch. Rated 2A @ 250V AC.
Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied with each switch. Rated 2A @ 250V AC.

2 Position DPDT 606 Key Keyswitch

S2604
Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied with each switch. Rated 2A @ 250V AC.
Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied with each switch. Rated 2A @ 250V AC. Key removable in left hand position only.

2 Position DPDT Keyswitch

S2600
Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied with each switch. Rated 2A @ 250V AC. Key removable in left hand position only.
Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two 606 keys supplied with each switch. Rated 2A @ 250V AC. Key removable in left hand position 1 onl

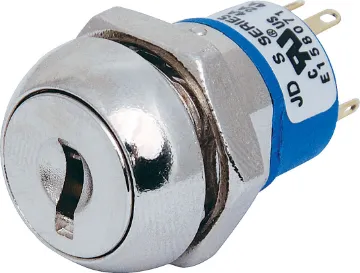

2 Position DPDT Spring Return 606 Key Keyswitch

S2603
Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two 606 keys supplied with each switch. Rated 2A @ 250V AC. Key removable in left hand position 1 onl
Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied with each switch. Rated 2A @ 250V AC. Key removable in left hand position 1 onl

2 Position DPDT Spring Return Keyswitch

S2601
Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied with each switch. Rated 2A @ 250V AC. Key removable in left hand position 1 onl
Mini. DPST. Radial type tumbler mechanism. Silver plated contacts and terminals. Supplied with two keys. Key removable in both positions.

2 Position DPST Mini Tubular 1001 Key Keyswitch

S2521
Mini. DPST. Radial type tumbler mechanism. Silver plated contacts and terminals. Supplied with two keys. Key removable in both positions.
Mini. DPST. Radial type tumbler mechanism. Silver plated contacts and terminals. Rated at 0.5A @ 240V AC. Key removable in both positions. Supplied with two keys. Overall depth with key inserted 49mm, including terminals.

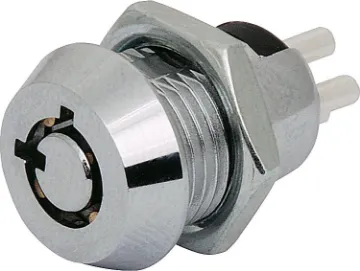

2 Position DPST Mini Tubular Keyswitch Random Keyed

S2520
Mini. DPST. Radial type tumbler mechanism. Silver plated contacts and terminals. Rated at 0.5A @ 240V AC. Key removable in both positions. Supplied with two keys. Overall depth with key inserted 49mm, including terminals.
Standard. DPST. Radial type tumbler mechanism. Silver plated contacts and terminals. Rated at 2A @ 250V AC. Key removable in both positions. Supplied with two keys. Four terminals. Overall depth with key inserted 69mm, including terminals. Blank Key

2 Position DPST Tubular Keyswitch

S2515
Standard. DPST. Radial type tumbler mechanism. Silver plated contacts and terminals. Rated at 2A @ 250V AC. Key removable in both positions. Supplied with two keys. Four terminals. Overall depth with key inserted 69mm, including terminals. Blank Key
Standard. DPST. Radial type tumbler mechanism. Silver plated contacts and terminals. Rated at 2A @ 250V AC. Key removable in both positions. Supplied with two 10001 keys. Four terminals. Overall depth with key inserted 69mm, including terminals.

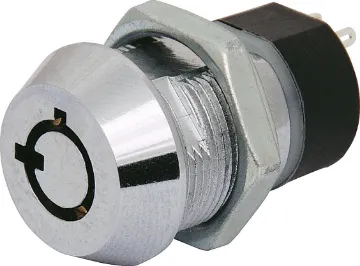

2 Position DPST Tubular Keyswitch 10001 Key

S2516
Standard. DPST. Radial type tumbler mechanism. Silver plated contacts and terminals. Rated at 2A @ 250V AC. Key removable in both positions. Supplied with two 10001 keys. Four terminals. Overall depth with key inserted 69mm, including terminals.
Silver plated contacts and terminals. Rated at 3A @ 250V AC. Key removable in both positions. Supplied with two keys. Overall depth with key inserted 77mm, including terminals.

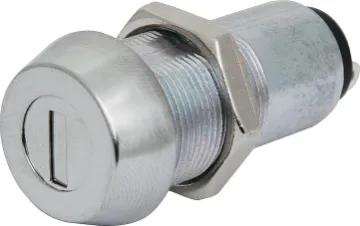

2 Position SPST Keyswitch

S2500
Silver plated contacts and terminals. Rated at 3A @ 250V AC. Key removable in both positions. Supplied with two keys. Overall depth with key inserted 77mm, including terminals.
Key removable in either position. Suits commonly keyed 8004 key only.

22mm 8004 Key Cam Lock

S2560
Key removable in either position. Suits commonly keyed 8004 key only.
Key removable in left position. Non-spring return (ie. Alternate action). Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied with

3 Position 003 Key DPDT Keyswitch

S2625
Key removable in left position. Non-spring return (ie. Alternate action). Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied with
This key switch and cam lock are available to OEM customers with a requirement for 003 key specification. This model is only available in a minimum quantity of 25 pieces. Contact our parent company Altronic Distributors for competitive pricing on this i

3 Position DP3T 003 Key Keyswitch

S2622
This key switch and cam lock are available to OEM customers with a requirement for 003 key specification. This model is only available in a minimum quantity of 25 pieces. Contact our parent company Altronic Distributors for competitive pricing on this i
Key removable in centre position. Non-spring return (ie. Alternate action). Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied wit

3 Position DP3T 606 Key Keyswitch

S2624
Key removable in centre position. Non-spring return (ie. Alternate action). Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied wit
Key removable in all positions. Non-spring return (ie. Alternate action). Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied with e

3 Position DP3T 606 Key Keyswitch

S2632
Key removable in all positions. Non-spring return (ie. Alternate action). Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied with e
Key removable in centre position. Non-spring return (ie. Alternate action). Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied wit

3 Position DP3T Keyswitch

S2620
Key removable in centre position. Non-spring return (ie. Alternate action). Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied wit
Key removable in all positions. Non-spring return (ie. Alternate action). Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied wit

4 Position DP3T 606 Key Keyswitch

S2654
Key removable in all positions. Non-spring return (ie. Alternate action). Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two keys supplied wit
Blank key to suit S2500 - S2501.

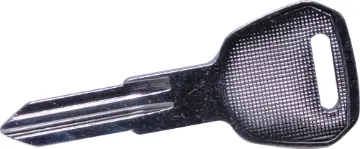

Key Blank To Suit S2500

S2512
Blank key to suit S2500 - S2501.
Blank keys to suit the S2515 key switch.

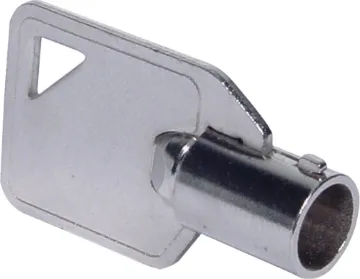

Key Blank To Suit S2515

S2518
Blank keys to suit the S2515 key switch.
