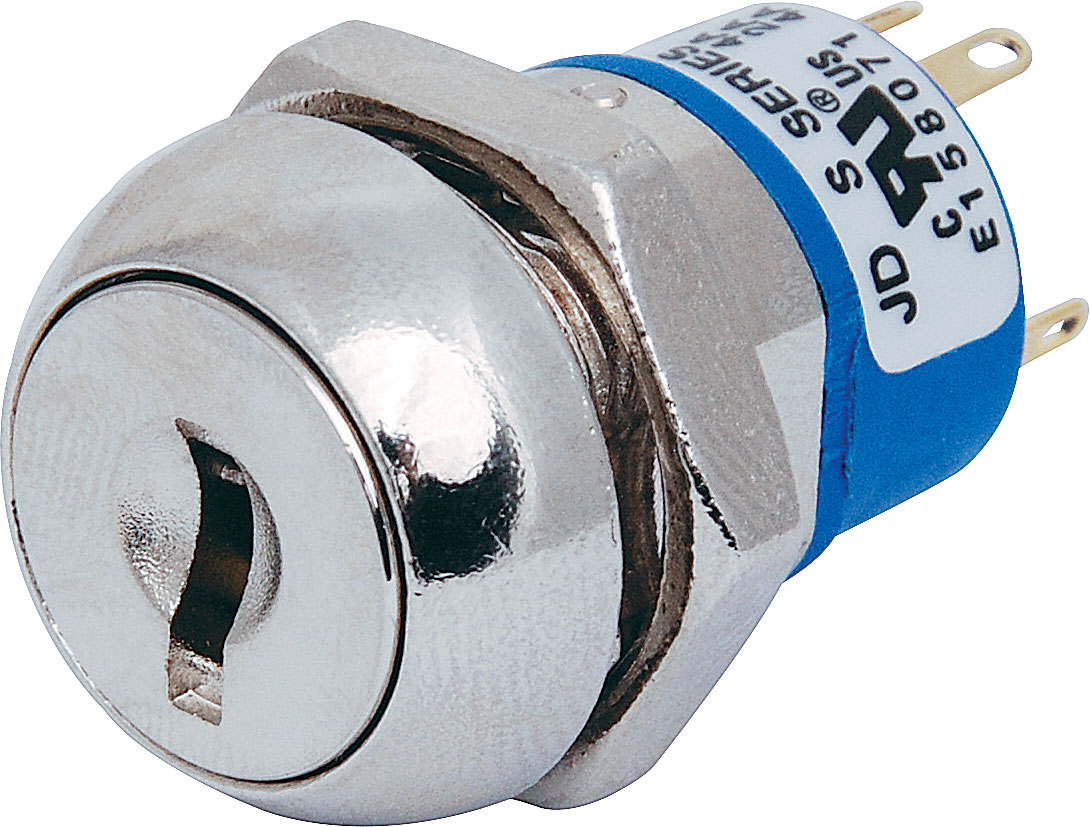

2 Position DPDT Spring Return 606 Key Keyswitch

SKU: S2603
Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Two 606 keys supplied with each switch. Rated 2A @ 250V AC. Key removable in left hand position 1 onl
$21.32

All Prices Shown are (ex GST)
Bulk Pricing
ea $21.32
4+ $19.18
10+ $17.05
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Rated 2A @ 250V AC.

Note: Key removable in left hand position 1 only.

Supplied with two 606 keys

Specifications

Electrical

  • Contact Rating: 4A 125VAC/28VDC, 2A 250VAC
  • Contact Resistance: Below 10 millionΩ
  • Insulation Resistance: 1 Billion Ω Min.
  • Dielectric Strength: 1000V RMS Min. sea level
  • Electrical Life: 6000 make-and-break cycles at full load

Materials

  • Lock Housing: Zinc Alloy die-casted nickel Plated.
  • Cylinder: 4 Disc Tumblers Constructed, Zinc Alloy die-casted nickel Plated.
  • Keys: Brass, Original Colour or Nickel Plated.
  • Contacts: Super Hard Copper Alloy, Silver Plated.
  • Mounting Nut: Zinc Alloy Die Cast, Nickel Plated.
