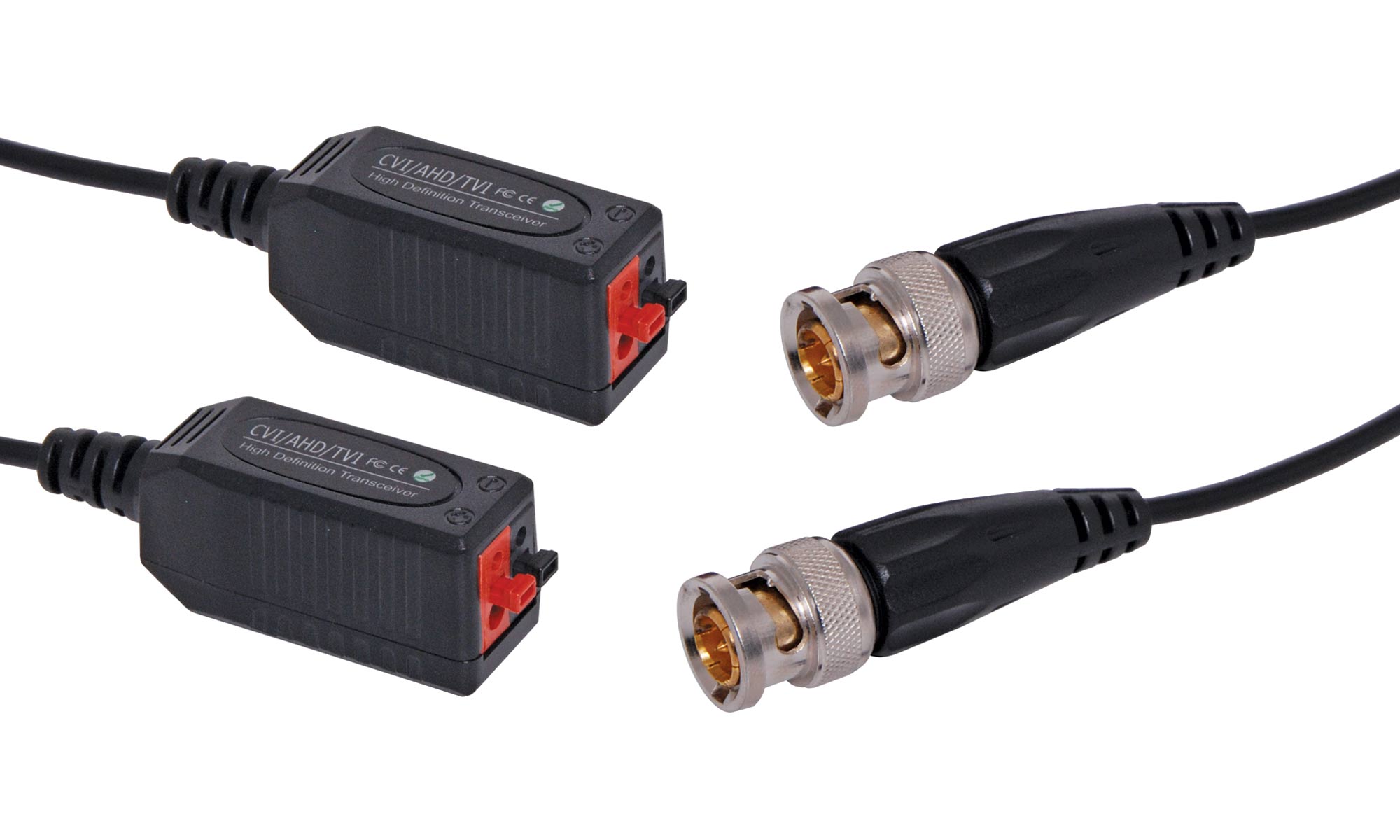

Extender Composite UTP Pair

Be the first to review this product
Allows the transmission of a signal from a camera for up to 300m over standard Cat 5e UTP cable. No power required. Video only transmission up to 1080p. Sold in a pair.
SKU: S9244B
$20.86
Per ea
QuantityPrice
ea$20.86
2+$18.86
4+$16.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Allows the transmission of a signal from a camera for up to 250m over standard Cat 5e UTP cable. No power required. Video only transmission up to 1080p. Sold in a pair.

Suitable for use with S 9280 16 Channel UTP receiver

Features

  • Compatible with all HD-CVI, HD-TVI, HD-AHD
  • Up to 450m for 720P CVI Cameras
  • Up to 250m for 1080P CVI Cameras
  • Up to 250m for 720P/1080P TVI Cameras
  • Up to 350m for 720P/960P AHD Cameras
  • Up to 250m for 1080P AHD Cameras
  • NTSC, PAL and SECAM video formats
  • No power required
  • 60dB cross talk and noise immunity
  • Compact size and easy installation
  • Built-in transient suppression protection

Specifications

Frequency Response: DC to 80Mhz

  • Attenuation: 0.5dB
  • CMRR: 60dB
  • Surge Protection: 4KV, ESD: 8KV
  • Connectors: Male BNC and "Press-Fit" terminal blocks
  • Impedance: BNC 75ohms, Terminal 100ohms
  • Working temperature: -10°C to 70°C
  • Storage temperature: -30°C to 70°C
  • Humidity: 0 to 95%
  • Dimensions: 39 x 17 x 19mm (excluding connectors)
  • Material: ABS Plastic

12 Months

We Offer 12 Months for this product
