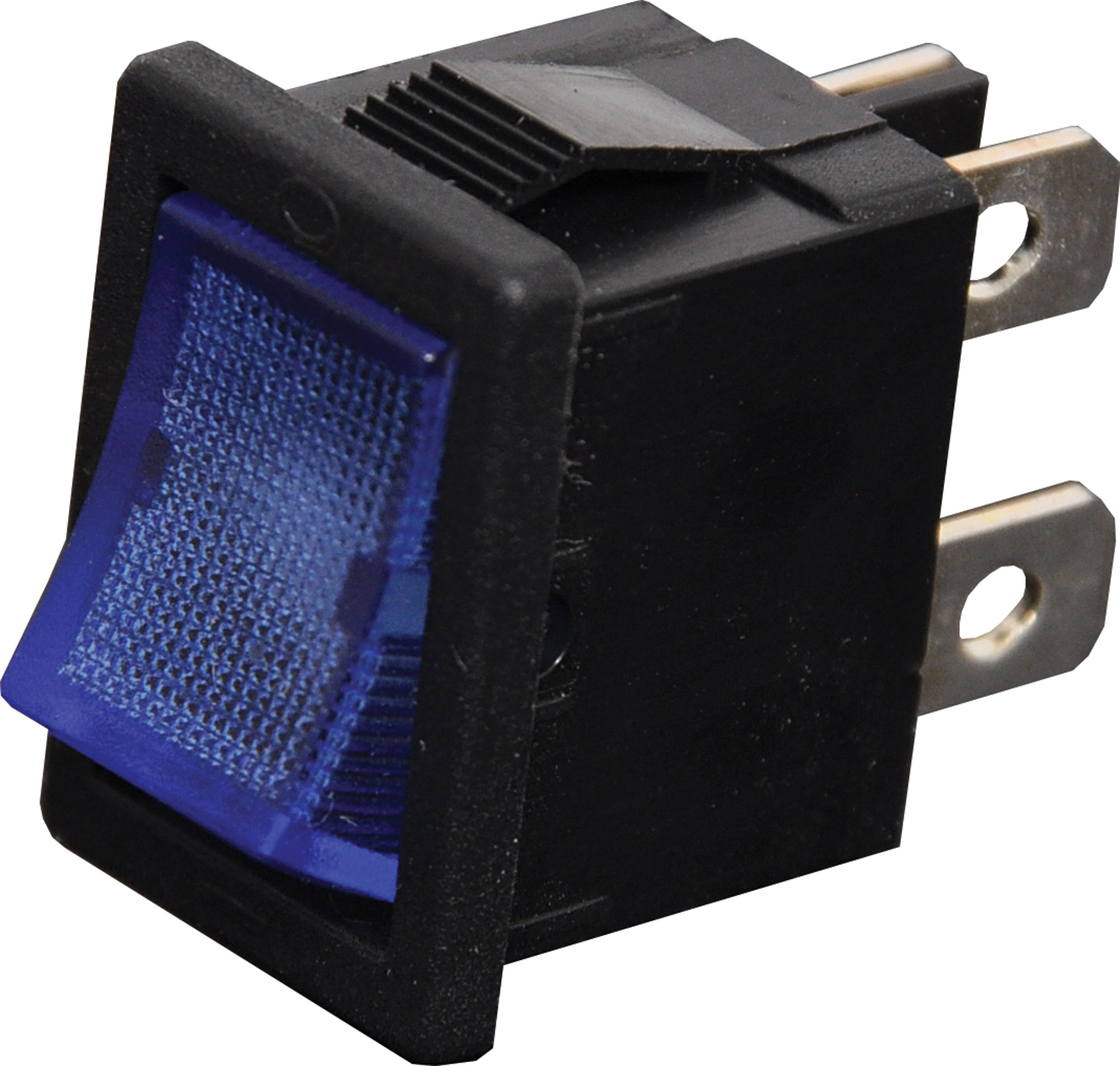

DPST Blue Illuminated Mini Rocker Switch

Be the first to review this product
Contact Rating: 6A @ 250V AC Neon Colour: Blue Neon Voltage: 240V AC Panel Cutout: 19.2 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20mΩ Insulation Resistance: >1000MΩ Dielectric Strength: >1500V 1 Minute >3000V Between Poles
SKU: S3218
$5.18
Per ea
Quantity Price
ea $5.18
10+ $4.82
40+ $4.41

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A miniature DPST rocker switch. Ideal for a compact panel mount power switch in automotive and industrial applications.

Diagram

Specifications

Contact Rating: 6A @ 250V AC

  • Neon Colour: Blue
  • Neon Voltage: 240V AC
  • Panel Cutout: 19.2 x 13mm
  • Electrical Life: 10,000 Cycles
  • Mechanical Life: 15,000 Cycles
  • Contact Resistance: <20MΩ
  • Insulation Resistance: >1000MΩ
  • Dielectric Strength: >1500V 1 Minute
  • >3000V Between Poles
