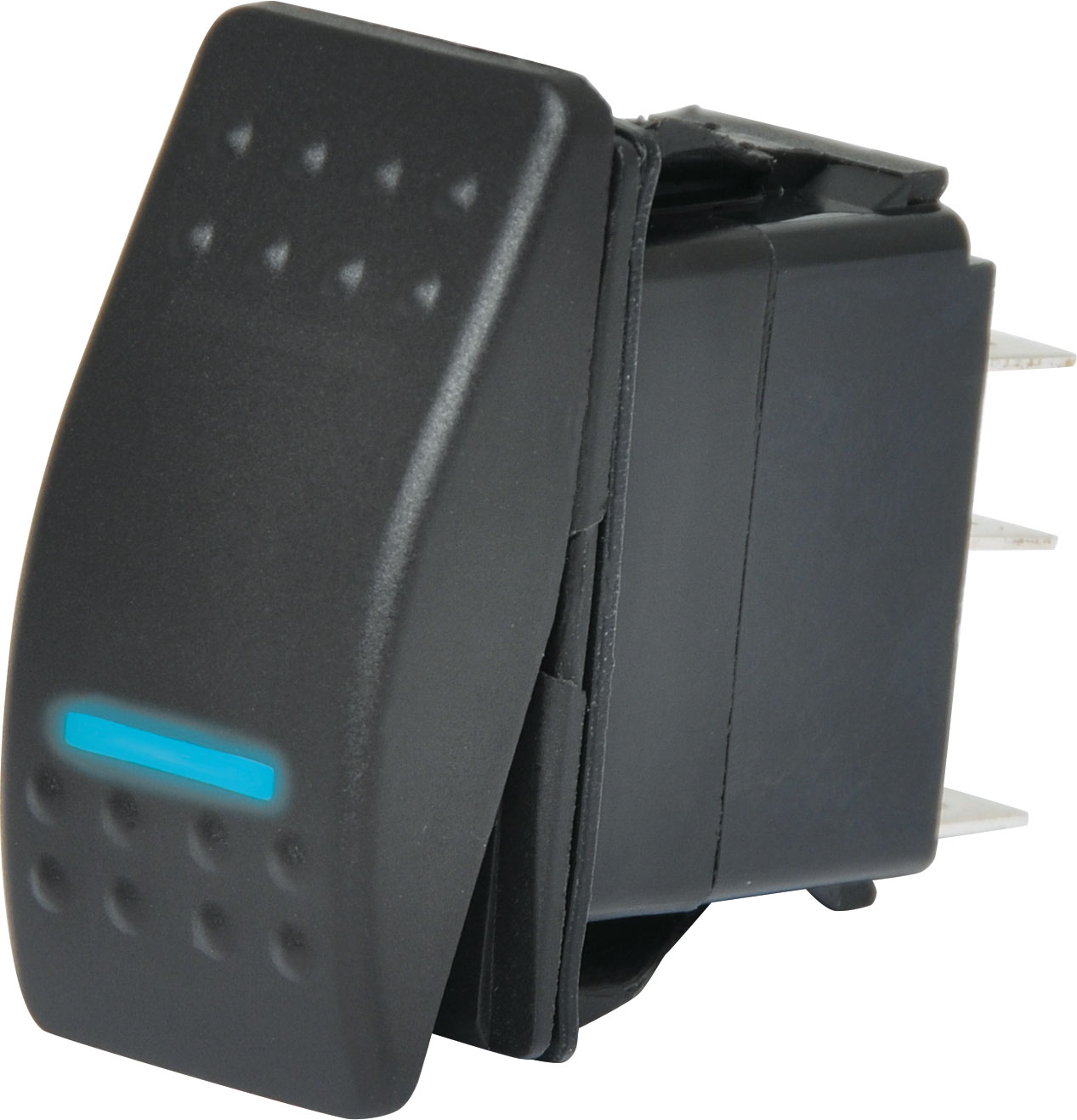

DPST Blue Illuminated IP66 Marine 12V/24V Rocker Switch

Be the first to review this product
Switch type: Rocker switch, DPST Contact rating: 10A @ 250V ac / 24V dc Neon: Blue, 12/24V dc Electrical life: 20,000 cycles Panel thickness: 4mm Mechanical life: 50,000 cycles Contact resistance: <50mΩ Insulation resistance: >100MΩ Dielectric strength: >1500V ac 1 minute
SKU: S1022
$9.95
Per ea
Quantity Price
ea $9.95
10+ $9.55
40+ $8.86

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems. IP66 rated weatherproof design with blue 12V/24V DC neon illumination. Suits panel thicknesses up to 4mm. Panel Cutout: 21 x 38.5mm approx. Will vary with panel thickness.

Specifications

Rating (DC): 12V 20A / 24V 10A

  • Neon: Blue, 12/24V DC
  • Electrical Life: 20,000 cycles
  • Panel Thickness: 4mm
  • Mechanical Life: 50,000 cycles
  • Contact Resistance: <50mΩ
  • Insulation Resistance: >100MΩ
  • Dielectric Strength: >1500V ac 1 minute

12 Months

We Offer 12 Months for this product
