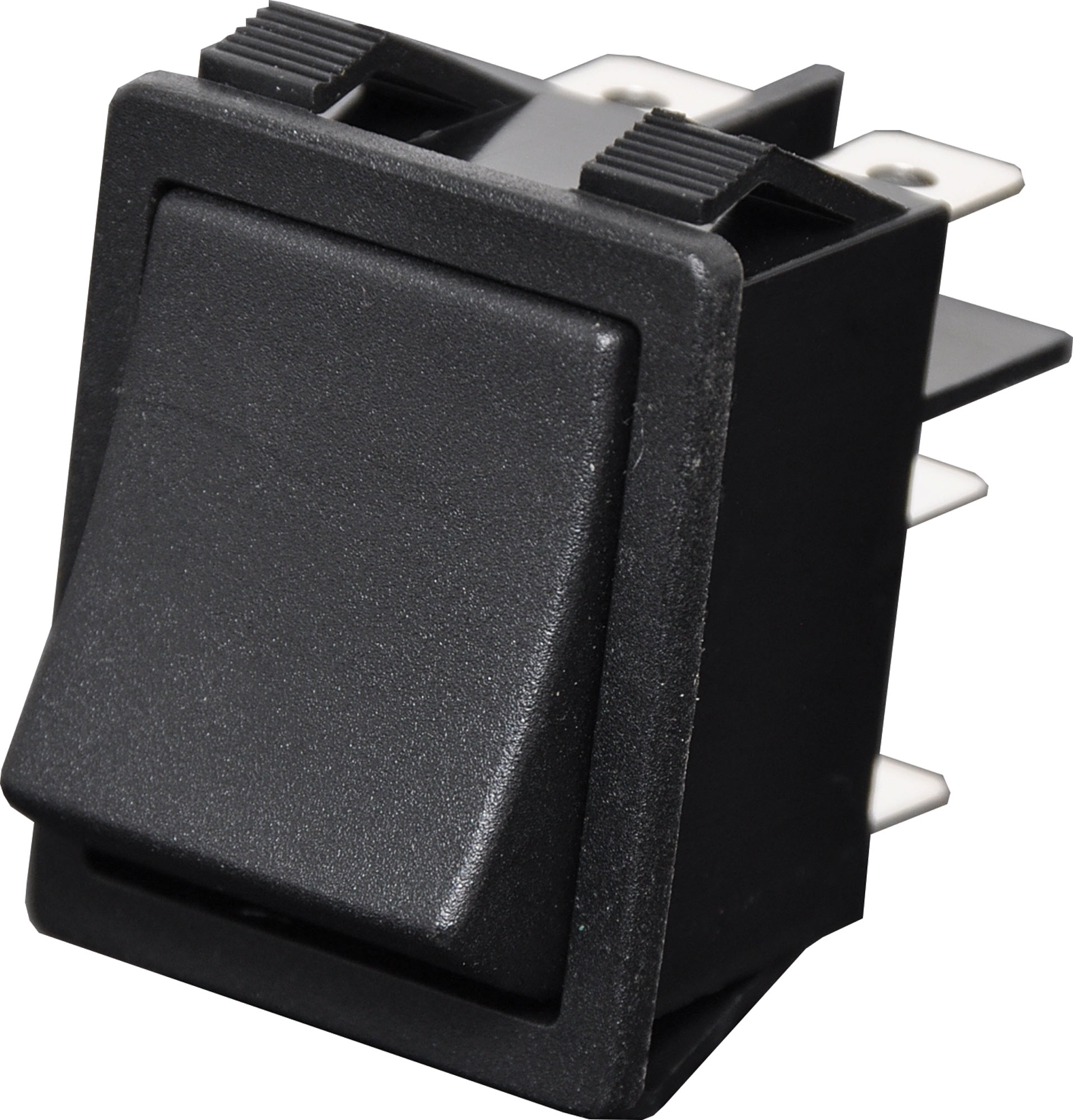

DPDT Heavy Duty Rocker Switch

Be the first to review this product
Heavy duty DPDT panel mount rocker switch with a 15A @ 250V AC contact rating for high current mains applications. Excellent mechanical and electrical life specifications.
SKU: S3245A
$4.14
Per ea
Quantity Price
ea $4.14
10+ $3.64
40+ $3.14

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Heavy duty DPDT panel mount rocker switch with a 15A @ 250V AC contact rating for high current mains applications. Excellent mechanical and electrical life specifications. These are the same heavy duty switches used in our Redback audio equipment. Ideal switch for OEMs with a requirement for high current long life on/off switching.

Specifications

Switch Type: DPDT

  • Contact Rating: 15A @ 250V AC
  • Panel Cutout: 28 x 22mm
  • Electrical Life: 10,000 Cycles
  • Mechanical Life: 30,000 Cycles
  • Contact Resistance: <20mΩ
  • Insulation Resistance: >1000MΩ
  • Dielectric Strength: >1500V 1 Minute

12 Months

We Offer 12 Months for this product
