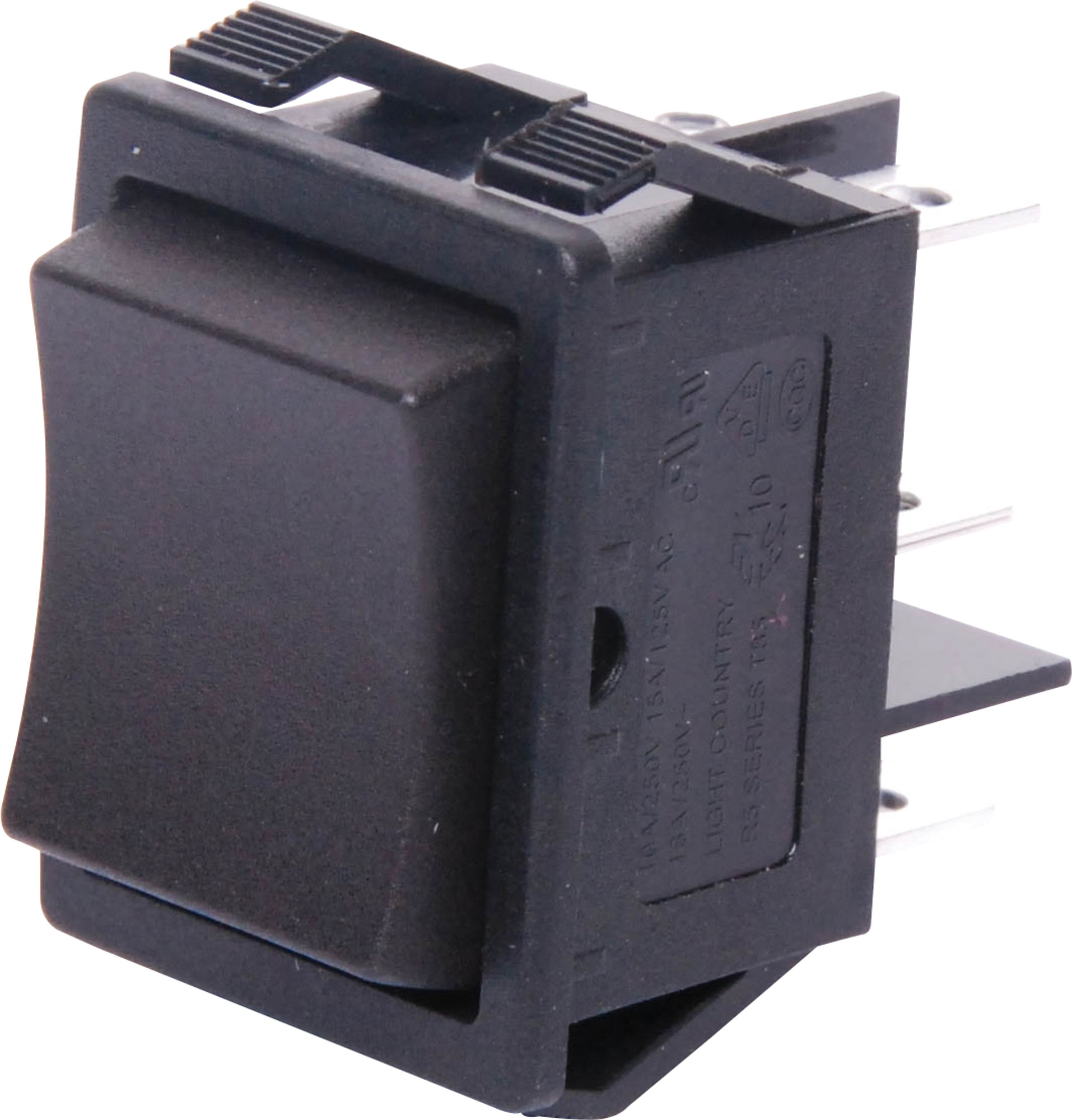

DPDT Heavy Duty Centre-Off Spring Return Rocker Switch

A heavy duty DPDT 'centre-off' panel mount rocker switch. The switch configuration is momentary each way, returning to centre-off after release.
SKU: S3243
$5.18
Per ea
Quantity Price
ea $5.18
10+ $4.82
40+ $4.41

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A heavy duty DPDT ''centre-off'' panel mount rocker switch. The switch configuration is momentary each way, returning to centre-off after release. Rated for 16A @ 250V AC for use with mains powered equipment. Large actuator and heavy duty design is ideal for industrial use.

Specifications

Type: Momentary (spring return centre off)

  • Contact Rating: 16A @ 250V ac
  • Electrical Life: 10,000 cycles
  • Panel Thickness: 0.7-3mm
  • Panel Cutout: 22.2 x 30.4mm
  • Mechanical Life: 30,000 cycles
  • Contact Resistance: <20mΩ
  • Insulation Resistance: >1000MΩ
  • Dielectric Strength: >1500V ac 1 minute

12 Months

We Offer 12 Months for this product
