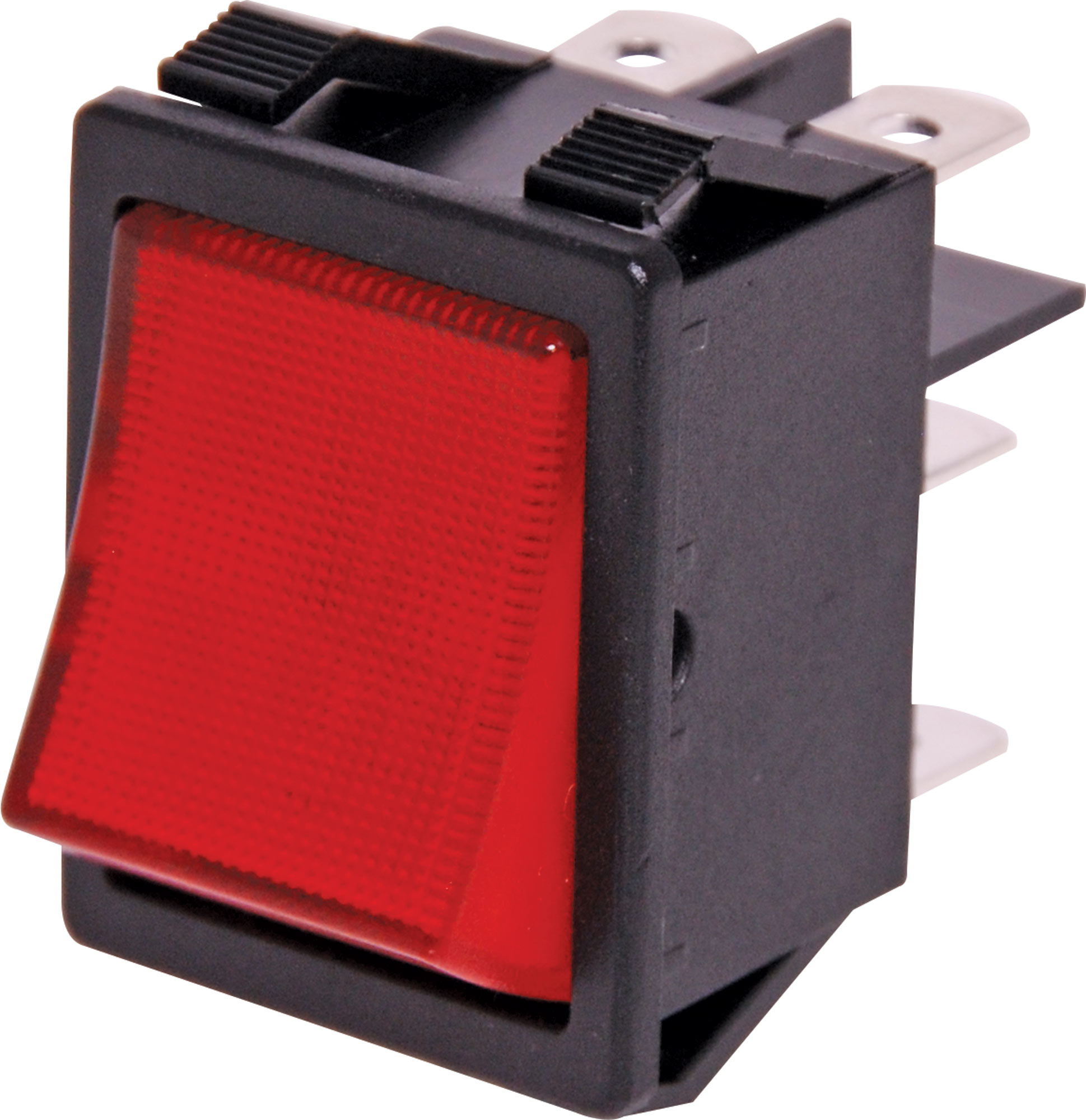

DPDT Heavy Duty Red Illuminated Rocker Switch

SKU: S3242B
A full illuminated DPDT heavy duty rocker switch for panel mounting into equipment and control panels. Electrical contacts are rated to 15A @ 250V AC.
$5.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.18
10+ $4.82
40+ $4.41
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A full illuminated DPDT heavy duty rocker switch for panel mounting into equipment and control panels. Electrical contacts are rated to 15A @ 250V AC. Switch is fitted with a 240V AC red neon which illuminates the entire switch actuator when turned on. Suits panels up to 3mm thickness.

Specifications

Contact Rating: 15A @ 250V AC

  • Neon: Red, 240V AC
  • Electrical Life: 10,000 cycles
  • Panel Thickness: 3mm
  • Mechanical Life: 30,000 cycles
  • Contact Resistance: <20mΩ
  • Insulation Resistance: >1000MΩ
  • Dielectric Strength: >1500V AC 1 minute
