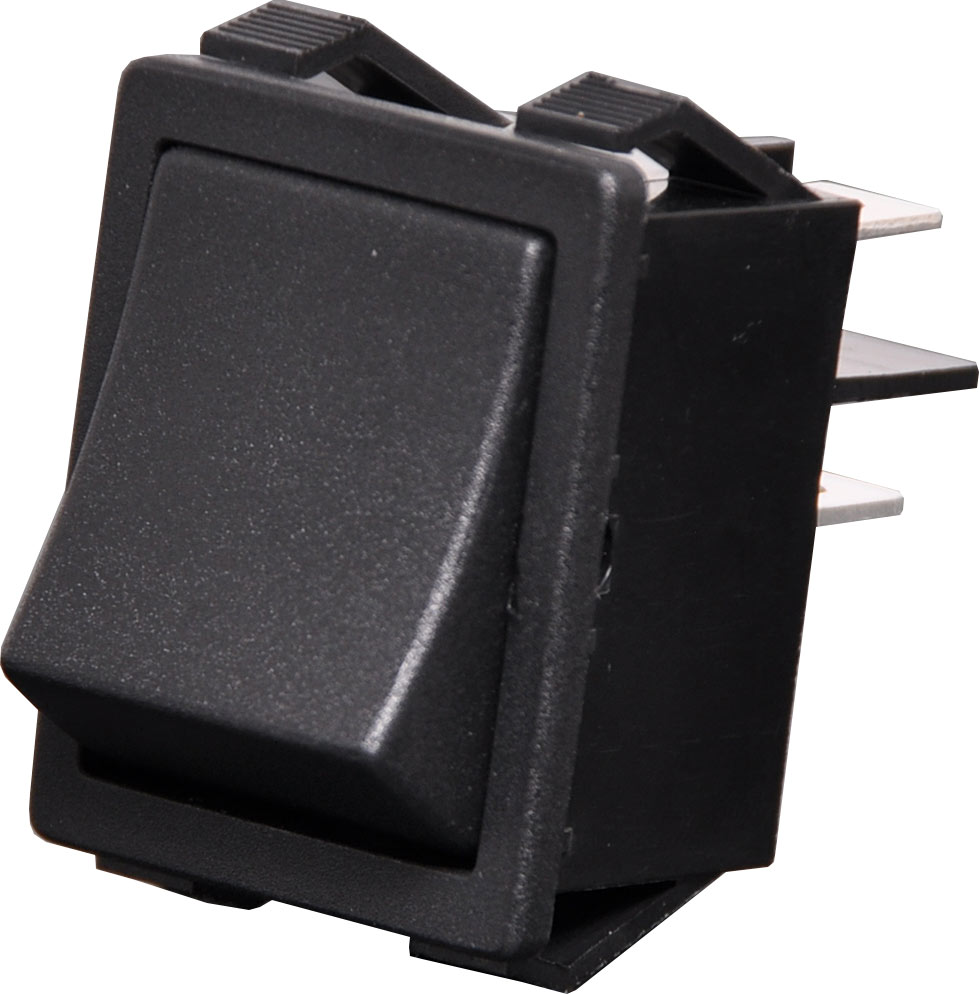

DPST Momentary On/Off Heavy Duty Rockers

SKU: S3241
A heavy duty DPDT momentary ON/OFF panel mount rocker switch. The switch configuration is momentary one way, returning to centre-off after release. Rated for 16A @ 250V AC for use with mains powered equipment.
$5.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.18
10+ $4.82
40+ $4.41
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A heavy duty DPST momentary panel mount rocker switch. The switch configuration is momentary one way, returning to original position after release. Rated for 16A @ 250V AC for use with mains powered equipment. Large actuator and heavy duty design is ideal for industrial use.

Specifications

Electrical Life: 10,000 cycles

  • Panel Thickness: 0.7-3mm
  • Panel Cutout: 22.2 x 30.4mm
  • Mechanical Life: 30,000 cycles
  • Contact Resistance: <20mΩ
  • Insulation Resistance: >1000MΩ
  • Dielectric Strength: >1500V AC 1 minute

Warranty & Returns

12 Months

We Offer 12 Months for this product
