Rocker Switches

Altronics rocker range includes switches for 240V AC and 12V and 24V DC applications with or without illumination. Rocker switches provide a low profile panel mount circuit switch in differing pole designs, including SPST, DPST, SPDT etc.

View as Grid List
Sort by
Display per page
Compatible with P 0690, P 0694 USB chargers and S 1020 marine rocker switch. Each modular section dove-tails together for as many as desired.

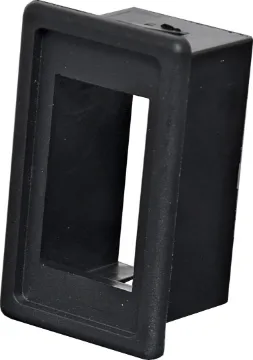

Single Switch Style Mounting Fascias

P0687
Compatible with P 0690, P 0694 USB chargers and S 1020 marine rocker switch. Each modular section dove-tails together for as many as desired.
Switch Type: SPDT (Centre Off Alternate) Contact Rating: 10A @ 250V AC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute

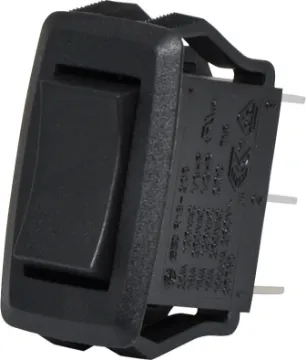

SPDT Heavy Duty Centre Off Alternate Rocker Switch

S3232
Switch Type: SPDT (Centre Off Alternate) Contact Rating: 10A @ 250V AC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute
Switch Type: SPDT (Centre Off Momentary) Contact Rating: 10A @ 250V AC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute

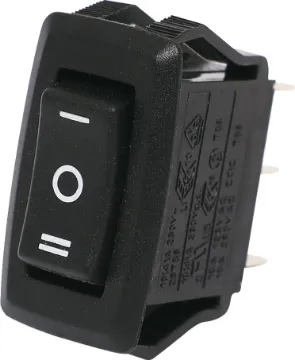

SPDT Heavy Duty Centre Off Momentary Rocker Switch

S3236
Switch Type: SPDT (Centre Off Momentary) Contact Rating: 10A @ 250V AC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute
Contact Rating: 6A @ 250V AC Panel Cutout: 19.2 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20mR Insulation Resistance: >1000MR Dielectric Strength: >1500V 1 Minute >3000V Between Poles

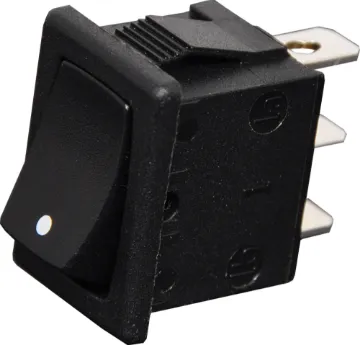

SPDT Mini Rocker Switch

S3215
Contact Rating: 6A @ 250V AC Panel Cutout: 19.2 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20mR Insulation Resistance: >1000MR Dielectric Strength: >1500V 1 Minute >3000V Between Poles
Switch type: SPDT rocker switch Contact rating: 3A @ 240V AC Electrical life: 10,000 cycles Mechanical life: 30,000 cycles Panel cutout: 8.5 x 13.2 mm Panel thickness: 0.75 - 2mm Contact resistance: 20m&#937 max. Insulation resistance: >1000M ohm Dielectric strength: >1500V AC 1 minute

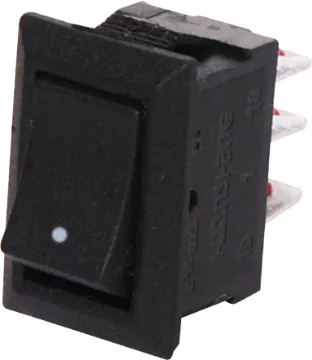

SPDT Ultra-Mini Rocker Switch

S3201
Switch type: SPDT rocker switch Contact rating: 3A @ 240V AC Electrical life: 10,000 cycles Mechanical life: 30,000 cycles Panel cutout: 8.5 x 13.2 mm Panel thickness: 0.75 - 2mm Contact resistance: 20mΩ max. Insulation resistance: >1000M ohm Dielectric strength: >1500V AC 1 minute
A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems. Blue illumination.

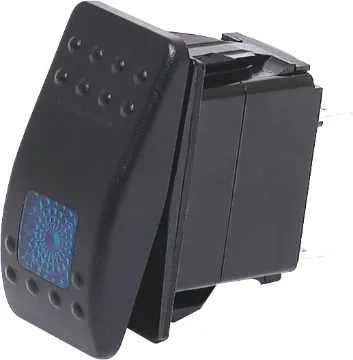

SPST Blue Illuminated IP66 Marine 12V/24V Rocker Switch

S1027
A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems. Blue illumination.
A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems. Green illumination.

SPST Green Illuminated IP66 Marine 12V/24V Rocker Switch

S1029
A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems. Green illumination.
Switch Type: SPST Contact Rating: 10A @ 250V AC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute

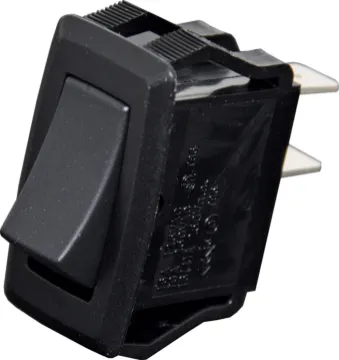

SPST Heavy Duty Momentary Rocker Switch

S3234
Switch Type: SPST Contact Rating: 10A @ 250V AC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute
Switch Type: SPST Contact Rating: 10A @ 250V AC Neon: Red, 240VAC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute

SPST Heavy Duty Red Illuminated Rocker Switch

S3228
Switch Type: SPST Contact Rating: 10A @ 250V AC Neon: Red, 240VAC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute
Switch Type: SPST Contact Rating: 10A @ 250V AC LED (S 3226): Red, 1.8V DC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute

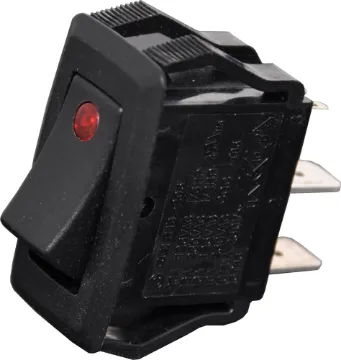

SPST Heavy Duty Red LED Dot Rocker Switch

S3226
Switch Type: SPST Contact Rating: 10A @ 250V AC LED (S 3226): Red, 1.8V DC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute
Switch type:SPST Contact rating:10A @ 250V AC LED (S 3226):Red, 1.8V DC Panel cutout:27.6 x 13.8 mm Electrical life:20,000 cycles Mechanical life:100,000 cycles Contact resistance:<50m&Omega; Insulation resistance:>100M&Omega; Dielectric strength:>1500V AC 1 minute

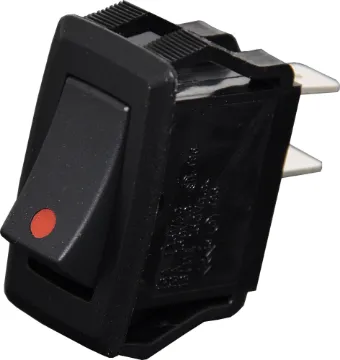

SPST Heavy Duty Red Rocker Switch

S3225
Switch type:SPST Contact rating:10A @ 250V AC LED (S 3226):Red, 1.8V DC Panel cutout:27.6 x 13.8 mm Electrical life:20,000 cycles Mechanical life:100,000 cycles Contact resistance:<50mΩ Insulation resistance:>100MΩ Dielectric strength:>1500V AC 1 minute
Switch Type: SPST Contact Rating: 10A @ 250V AC LED (S 3226): Red, 1.8V DC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute

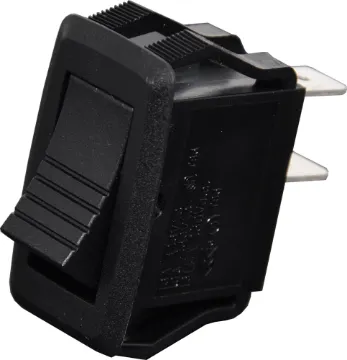

SPST Heavy Duty Rocker Switch

S3224
Switch Type: SPST Contact Rating: 10A @ 250V AC LED (S 3226): Red, 1.8V DC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute
Switch type: SPST Contact rating: 10A @ 250V AC Panel cutout: 23 x 11.5 mm Panel thickness: 0.75 - 1.25mm max. Electrical life: 10,000 cycles Mechanical life: 100,000 cycles Contact resistance: <20m&#937; Neon: Red, 240V AC Insulation resistance:

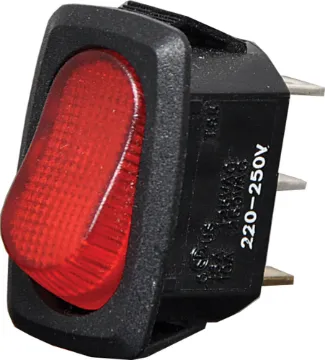

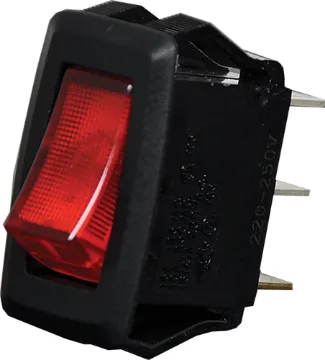

SPST Heavy Duty Slim Red Illuminated Rocker Switch

S3229
Switch type: SPST Contact rating: 10A @ 250V AC Panel cutout: 23 x 11.5 mm Panel thickness: 0.75 - 1.25mm max. Electrical life: 10,000 cycles Mechanical life: 100,000 cycles Contact resistance: <20mΩ Neon: Red, 240V AC Insulation resistance:
A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems.

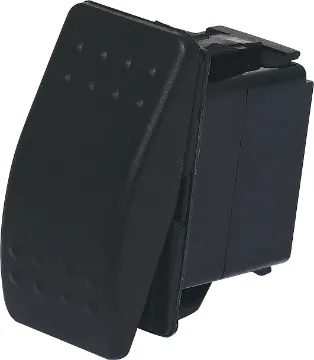

SPST IP67 Heavy Duty Marine 12V/24V Rocker Switch

S1032
A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems.
Switch type: SPST alternate rocker switch Contact rating: 20A @ 12V DC Neon: Red 12VDC

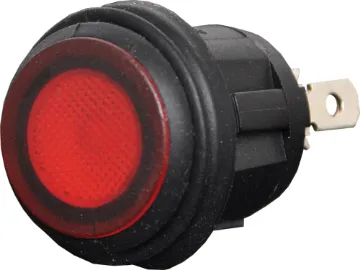

SPST LED 12V 20A IP65 Weatherproof Rocker Switch

S3185
Switch type: SPST alternate rocker switch Contact rating: 20A @ 12V DC Neon: Red 12VDC
Designed for use in low voltage applications, this LED illuminated panel mount rocker switch is an SPST alternate type.

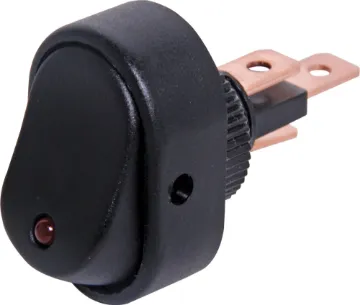

SPST Low Voltage Red LED Rocker Switch

S3248
Designed for use in low voltage applications, this LED illuminated panel mount rocker switch is an SPST alternate type.
Designed for use in low voltage applications, this LED illuminated panel mount rocker switch is an SPST alternate type.

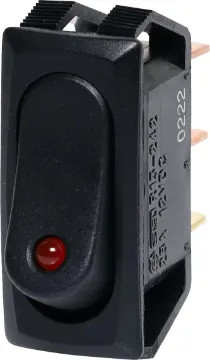

SPST Low Voltage Slim Red LED Rocker Switch

S3247
Designed for use in low voltage applications, this LED illuminated panel mount rocker switch is an SPST alternate type.
Same as the S3202 panel mount rocker switch but supplied with a 170mm fly lead and 2-pin header plug fitted dor quick and easy installation into a project.

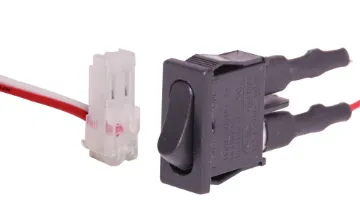

SPST Mini Rocker Panel Mount Switch with Flylead

SA3202
Same as the S3202 panel mount rocker switch but supplied with a 170mm fly lead and 2-pin header plug fitted dor quick and easy installation into a project.
Switch Type: SPST rocker switch Contact Rating: 6A @ 250V AC Panel Cutout: 19.2 x 6.8 mm Electrical Life: 10,000 Cycles Mechanical Life: 50,000 Cycles Contact Resistance: <20mR Insulation Resistance: >1000MR Dielectric Strength: >1500V AC 1 Minute

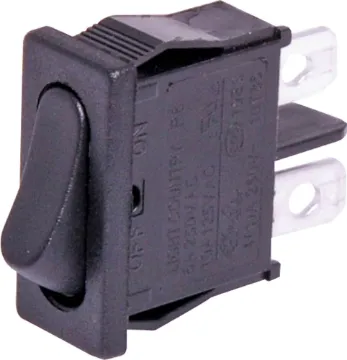

SPST Mini Rocker Switch

S3202
Switch Type: SPST rocker switch Contact Rating: 6A @ 250V AC Panel Cutout: 19.2 x 6.8 mm Electrical Life: 10,000 Cycles Mechanical Life: 50,000 Cycles Contact Resistance: <20mR Insulation Resistance: >1000MR Dielectric Strength: >1500V AC 1 Minute
Switch type: SPST rocker switch Contact Rating: 6A @ 250V AC Panel Cutout: 19.2 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20mR Insulation Resistance: >1000MR Dielectric Strength: >1500V 1 Minute >3000V Between Poles

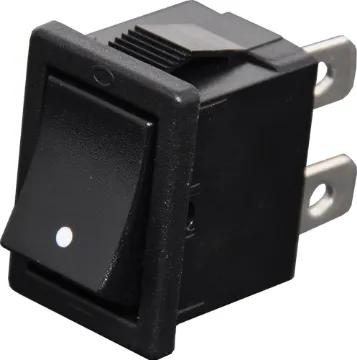

SPST Mini Rocker Switch

S3210
Switch type: SPST rocker switch Contact Rating: 6A @ 250V AC Panel Cutout: 19.2 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20mR Insulation Resistance: >1000MR Dielectric Strength: >1500V 1 Minute >3000V Between Poles
Contact rating: 6A @ 250V AC Panel cutout: &#8776;19 x 13mm Panel thickness: 0.7-3mm Electrical life: 10,000 cycles Mechanical life: 30,000 cycles Contact resistance: <20m&#937; Insulation resistance: >1000M&#937; Dielectric strength: >1500V AC 1 minute >3000V AC between poles

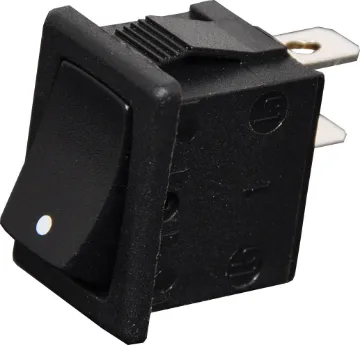

SPST Momentary On/Off Mini Rocker Switch

S3214
Contact rating: 6A @ 250V AC Panel cutout: ≈19 x 13mm Panel thickness: 0.7-3mm Electrical life: 10,000 cycles Mechanical life: 30,000 cycles Contact resistance: <20mΩ Insulation resistance: >1000MΩ Dielectric strength: >1500V AC 1 minute >3000V AC between poles
A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems. Orange illumination.

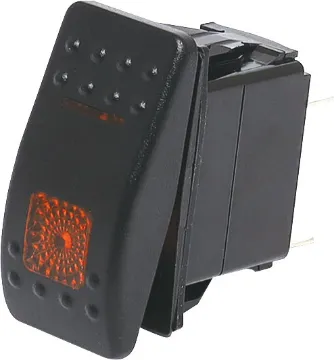

SPST Orange Illuminated IP66 Marine 12V/24V Rocker Switch

S1028
A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems. Orange illumination.
A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems. Red illumination.

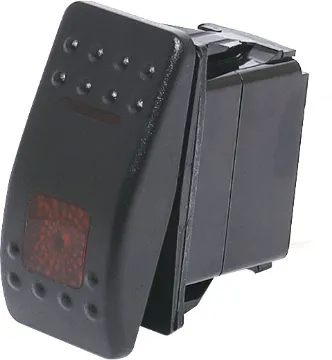

SPST Red Illuminated IP66 Marine 12V/24V Rocker Switch

S1026
A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems. Red illumination.
Switch Type: SPST Contact Rating: 6A @ 250V AC LED: Red, 1.8V DC Panel Cutout: 19 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20mR Insulation Resistance: >1000MR Dielectric Strength: >1500V 1 Minute >3000V Between Poles

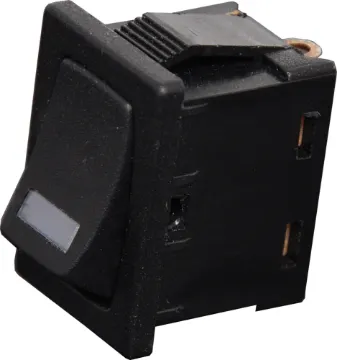

SPST Red LED Mini Rocker Switch

S3220
Switch Type: SPST Contact Rating: 6A @ 250V AC LED: Red, 1.8V DC Panel Cutout: 19 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20mR Insulation Resistance: >1000MR Dielectric Strength: >1500V 1 Minute >3000V Between Poles
Switch Type: SPST Alternate rocker switch Indicator: Red LED Contact Rating: 6A @ 250V AC Panel Cutout: 20mm&Oslash Panel Thickness: 6mm Max. LED indicator Power Requirements: 1.85V dc, 10mA. NOTE: The LED Terminals are the two smaller terminals.

SPST Red LED Round (Square Facia) Rocker Switch

S3190
Switch Type: SPST Alternate rocker switch Indicator: Red LED Contact Rating: 6A @ 250V AC Panel Cutout: 20mmØ Panel Thickness: 6mm Max. LED indicator Power Requirements: 1.85V dc, 10mA. NOTE: The LED Terminals are the two smaller terminals.
