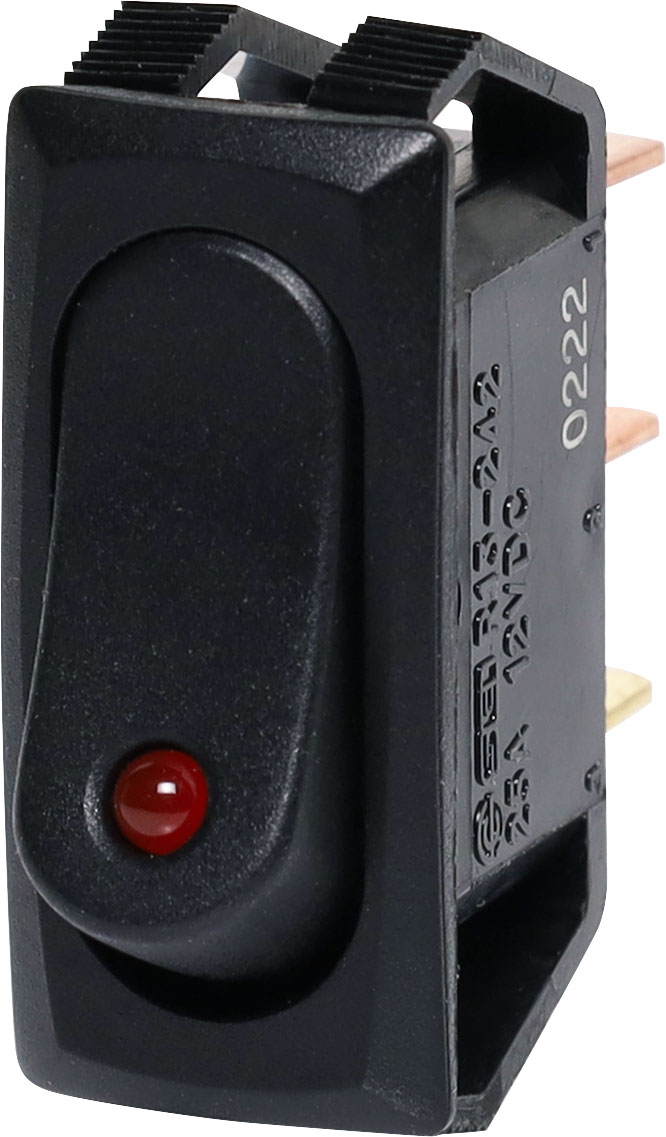

SPST Low Voltage Slim Red LED Rocker Switch

Be the first to review this product
Designed for use in low voltage applications, this LED illuminated panel mount rocker switch is an SPST alternate type.
SKU: S3247
$3.64
Per ea
QuantityPrice
ea$3.64
10+$3.27
40+$3.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Designed for use in low voltage applications, this LED illuminated panel mount rocker switch is an SPST alternate type. The LED has an in-built resistor for direct connection to a 12V DC power source. Excellent mechanical and electrical lifetime specifications.

Specifications

Switch Type: SPST

  • Contact Rating: 25A @ 12V DC
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 100,000 cycles
  • Panel Cutout: 26.5 x 11.5 mm
  • Panel Thickness: 0.75 - 2mm
  • LED: Red, 12V DC
  • Contact Resistance: 50mΩ max.
  • Insulation Resistance: >100M ohm
  • Dielectric Strength: >1500V AC 1 minute

12 Months

We Offer 12 Months for this product
