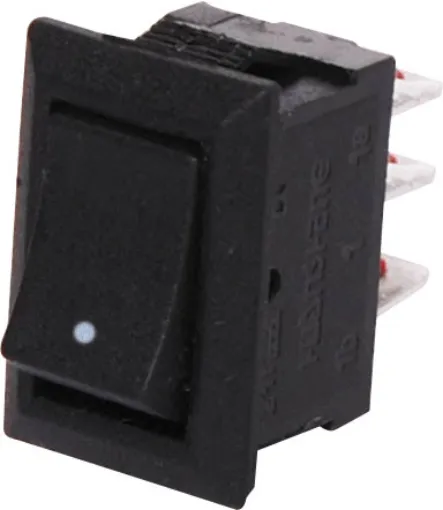

SPDT Ultra-Mini Rocker Switch

SKU: S3201
Switch type: SPDT rocker switch Contact rating: 3A @ 240V AC Electrical life: 10,000 cycles Mechanical life: 30,000 cycles Panel cutout: 8.5 x 13.2 mm Panel thickness: 0.75 - 2mm Contact resistance: 20mΩ max. Insulation resistance: >1000M ohm Dielectric strength: >1500V AC 1 minute
$1.50

All Prices Shown are (ex GST)
Bulk Pricing
ea $1.50
10+ $1.36
40+ $1.23
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A miniature SPDT rocker switch for use on small or low profile equipment. 3A @ 240V ac rated. Only 10.5mm wide and 15mm high.

Specifications:

Contact rating: 3A @ 240V AC

  • Electrical life: 10,000 cycles
  • Mechanical life: 30,000 cycles
  • Panel cutout: 8.5 x 13.2 mm
  • Panel thickness: 0.75 - 2mm
  • Contact resistance: 20mΩ max.
  • Insulation resistance: >1000M ohm
  • Dielectric strength: >1500V AC 1 minute

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
