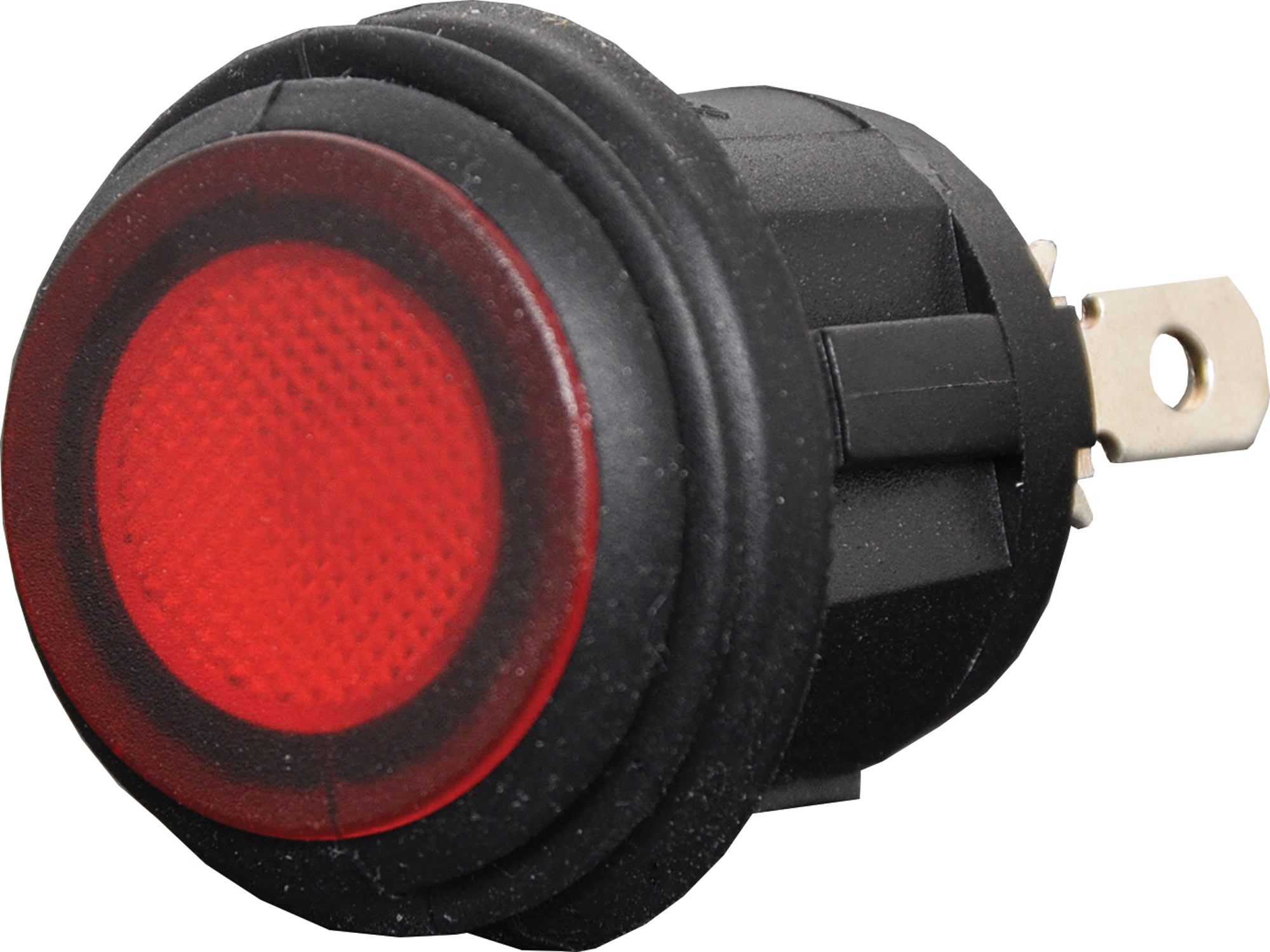

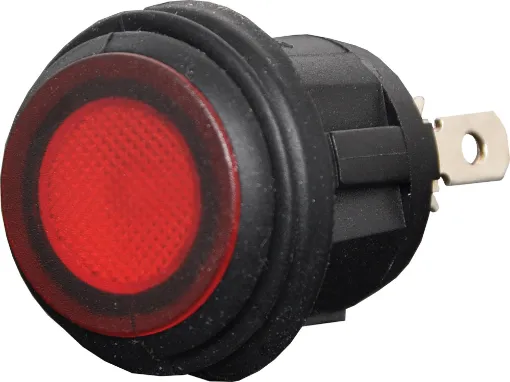

SPST LED 12V 20A IP65 Weatherproof Rocker Switch

SKU: S3185
Switch type: SPST alternate rocker switch Contact rating: 20A @ 12V DC Neon: Red 12VDC
$7.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $7.27
10+ $6.82
40+ $6.36
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A IP65 waterproof rated low voltage (12V DC) SPST rocker switch with red LED illumination. Ideal for use in panel controls exposed to the elements or in marine and automotive applications. UL and ROHS approved. Illuminated red with 12V DC led. Contacts rated for 20A @ 14V DC, however, this switch is ideally used in low voltage situations.

Dimensions

Specifications

Electrical

  • Switch Type: SPST Alternate (LED Dependent)
  • Contact Rating: 20A @ 14V DC
  • LED: Red 12VDC
  • Panel Thickness: 2.5mm max.
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 100,000 cycles
  • Contact Resistance: 50MΩ max.
  • Insulation Resistance: 500V DC 100MΩ/minute
  • Dielectric Strength: 1500V AC 1 minute

General

  • Frame: Nylon 66 (UL-94V2) Black
  • Actuator: PC (UL-94V2)
  • Waterproof Boot: Silicone
  • Terminals: Silver plated copper alloy
  • Waterproof Rating: IP65
  • LED Colour: Red

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
