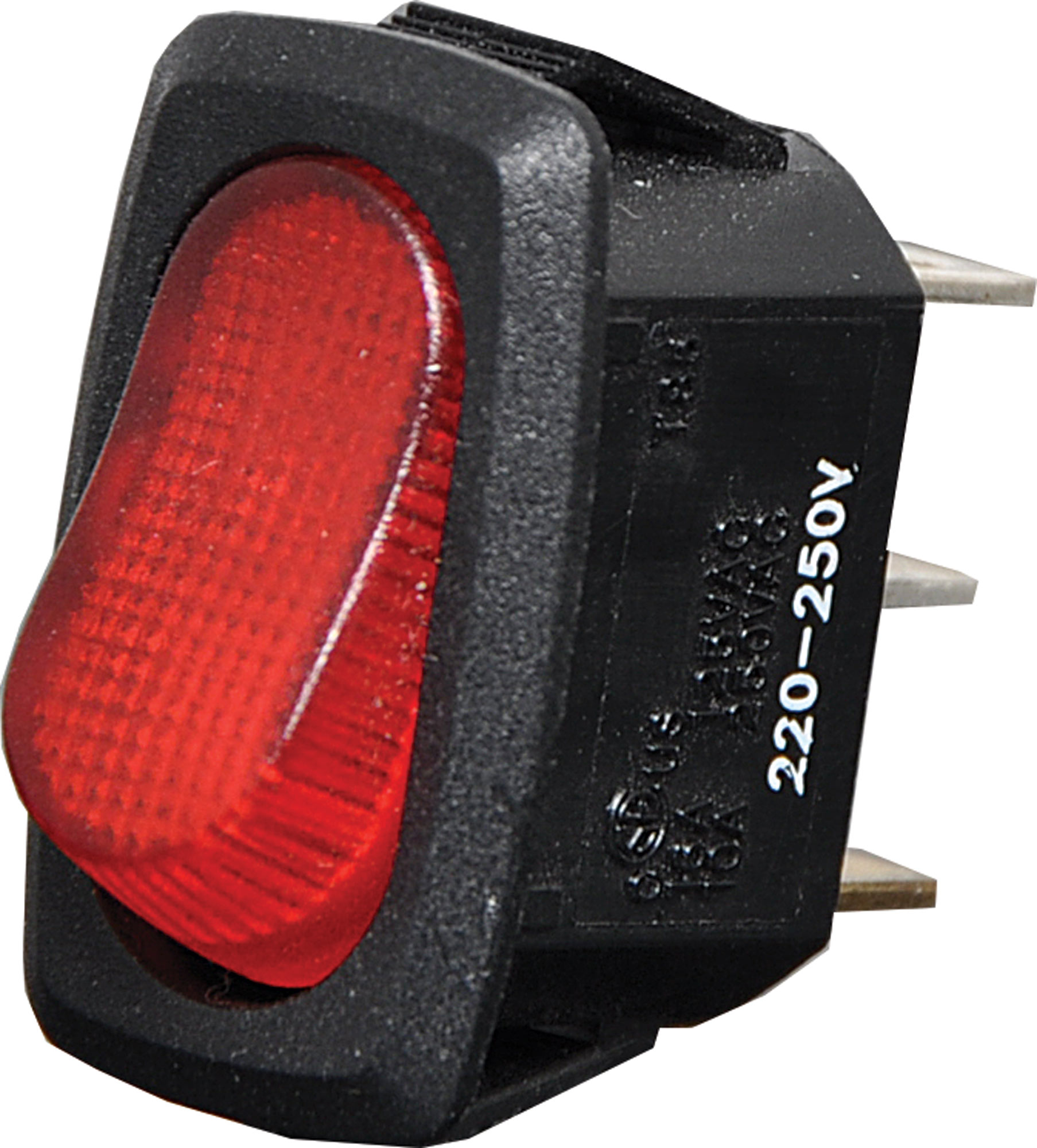

SPST Heavy Duty Slim Red Illuminated Rocker Switch

SKU: S3229
Switch type: SPST Contact rating: 10A @ 250V AC Panel cutout: 23 x 11.5 mm Panel thickness: 0.75 - 1.25mm max. Electrical life: 10,000 cycles Mechanical life: 100,000 cycles Contact resistance: <20mΩ Neon: Red, 240V AC Insulation resistance:
$5.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.18
10+ $4.73
40+ $4.18
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A narrow profile heavy duty SPST rocker switch for AC/DC switching use. Red translucent actuator with 240V AC neon indicator.
Neon is connected to pins 1 and 3 in the diagram below.

Diagram

Specifications

Switch Type: SPST

  • Contact Rating: 10A @ 250V AC
  • Panel Cutout: 23 x 11.5 mm
  • Panel Thickness: 0.75 - 1.25mm max.
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 100,000 cycles
  • Contact Resistance: <20mΩ
  • Neon: Red, 240V AC
  • Insulation Resistance: >100MΩ
  • Dielectric Strength: >1500V AC 1 minute
