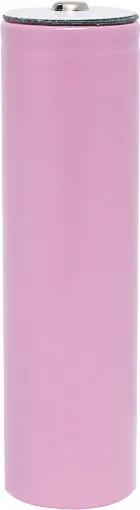

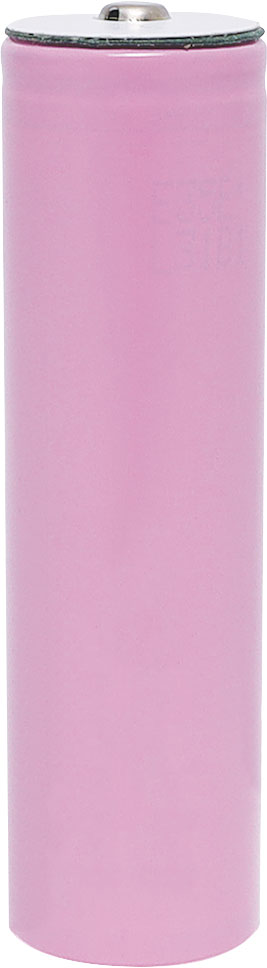

18650 3.5A Li-Ion Rechargeable Battery

These high performance 18650 lithium ion 3.7V batteries offer high performance and long life from a compact package. They are 18.6mm in diameter and 65mm long.
SKU: S4739A
$23.59
Per ea
QuantityPrice
ea$23.59
4+$21.23
10+$18.86

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

These high performance 18650 lithium ion 3.7V batteries offer high performance and long life from a compact package. They are 18.6mm in diameter and 65mm long. Lithium-ion rechargeable batteries offer excellent properties for use in consumer devices, including excellent energy density and low maintenance. Lithium-ion do not suffer from memory effect and possess no regular cycling that batteries often require to extend their service life.

Common applications for 18650 cells include:
Laptop computers
LED flash lights
Electric vehicles
Power tools
Converting AA or AAA powered products over to higher performance (providing voltage matches).

Note: These are an unprotected cell and should only be used in situations where a charging circuit is controlling the discharge and recharge of the cell. Incorrect usage of lithium cells can cause fire and advice should be sought before utilising them in any circuit for your project.

Specifications

Nominal Capacity: 3400mAh (0.2C, 2.65V discharge)

  • Minimum Capacity: 3350mAh (0.2C, 2.65V discharge)
  • Charging Voltage: 4.2V
  • Nominal Voltage: 3.6V
  • Charging Method: CC-CV (constant voltage with limited current)
  • Charging Current: Standard charge: 1700mA, Cycle life: 1020mA
  • Charging Time: Standard charge : 4hours
  • Max. Charge Current: 2000mA (ambient temperature 25°C)
  • Max. Discharge Current: 8000mA (continuous discharge)
  • Discharge Cut-off Voltage: 2.65V
  • Cell Weight: 50.0g max
  • Cell Dimension: Height: 65.25mm max, Diameter: 18.55mm max,
  • Operating Temperature: Charge: 0 to 45°C, Discharge: -10 to 60°C
  • Storage Temperature 1 year: -20~25°C, 3 months: -20~45°C, 1 month: -20~60°C

12 Months

We Offer 12 Months for this product
