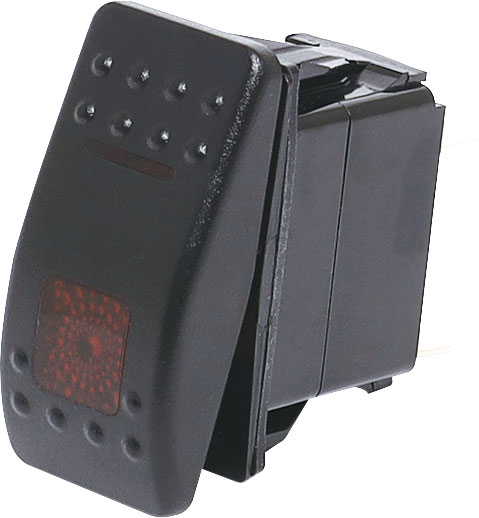

SPST Red Illuminated IP66 Marine 12V/24V Rocker Switch

Be the first to review this product
A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems. Red illumination.
SKU: S1026
$14.50
Per ea
Quantity Price
ea $14.50
10+ $12.68
40+ $11.32

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems. IP66 rated weatherproof design with red 12V/24V DC neon illumination. Suits panel thicknesses up to 4mm. Panel Cutout: 21 x 38.5mm approx. Will vary with panel thickness.

Specifications

Rating (DC): 12V 20A / 24V 10A

  • Neon: Red, 12/24V DC
  • Electrical Life: 50,000 cycles
  • Panel Thickness: 4mm
  • Mechanical Life: 100,000 cycles
  • Contact Resistance: <50mΩ
  • Insulation Resistance: >100MΩ
  • Dielectric Strength: >1500V AC 1 minute
  • Operating Temperature: -40°C to +85°C
  • Size of Drill: 37.2 x 21.2 mm
  • Certified: IP66 CE UL (E474764)

12 Months

We Offer 12 Months for this product
