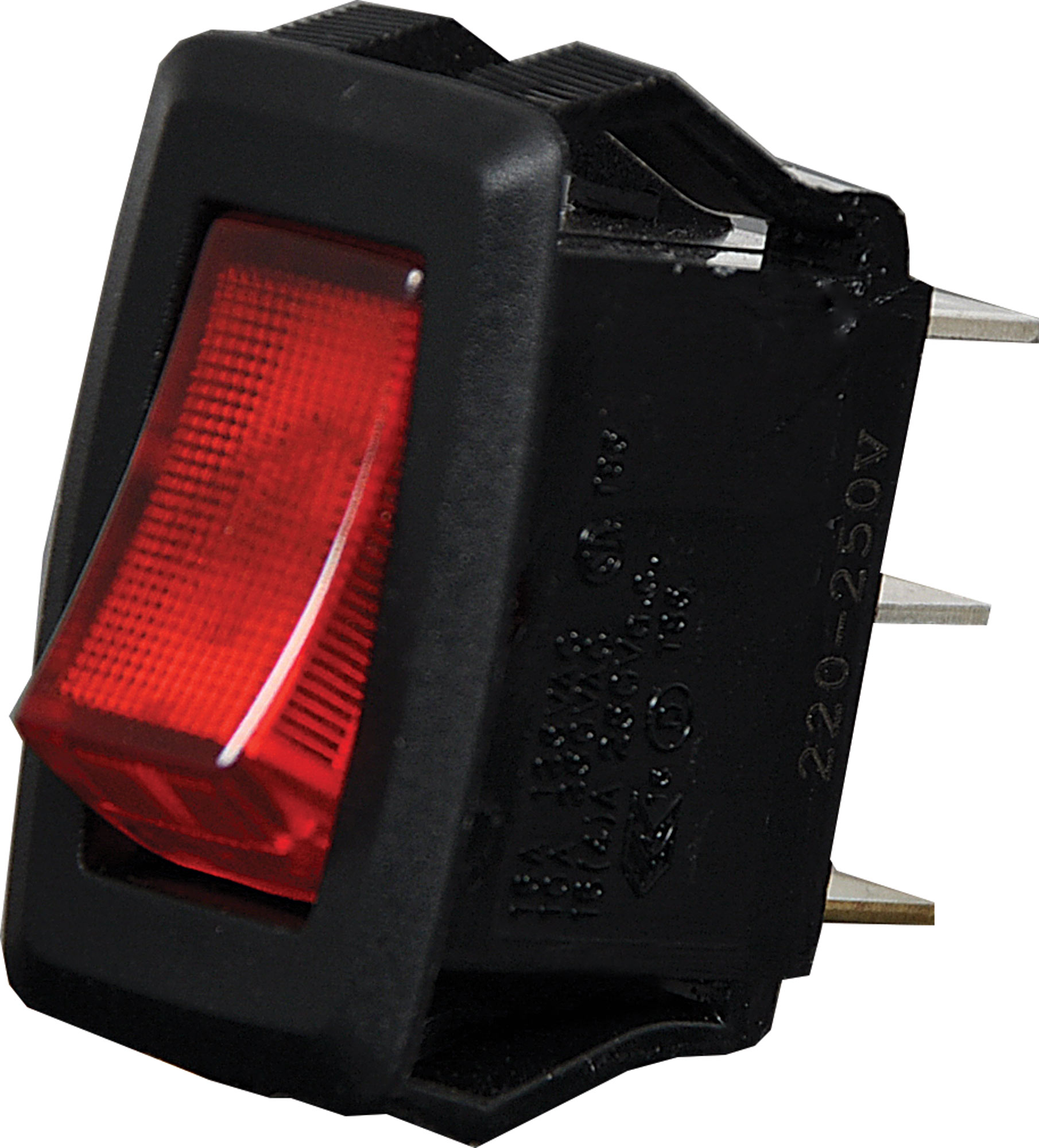

SPST Heavy Duty Red Illuminated Rocker Switch

Be the first to review this product
Switch Type: SPST Contact Rating: 10A @ 250V AC Neon: Red, 240VAC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute
SKU: S3228
$4.14
Per ea
Quantity Price
ea $4.14
10+ $3.77
40+ $3.36

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A narrow profile heavy duty SPST rocker switch for AC/DC switching use. Red translucent actuator with 240V AC neon indicator.
Neon is connected to pins 1 and 3 in the diagram below.

Diagram

Specifications

Switch Type: SPST

  • Contact Rating: 10A @ 250V AC
  • Neon: Red, 240VAC
  • Panel Cutout: 27.6 x 13.8 mm
  • Electrical Life: 20,000 Cycles
  • Mechanical Life: 100,000 Cycles
  • Contact Resistance: <50mRΩ
  • Insulation Resistance: >100MRΩ
  • Dielectric Strength: >1500V AC 1 Minute

12 Months

We Offer 12 Months for this product
