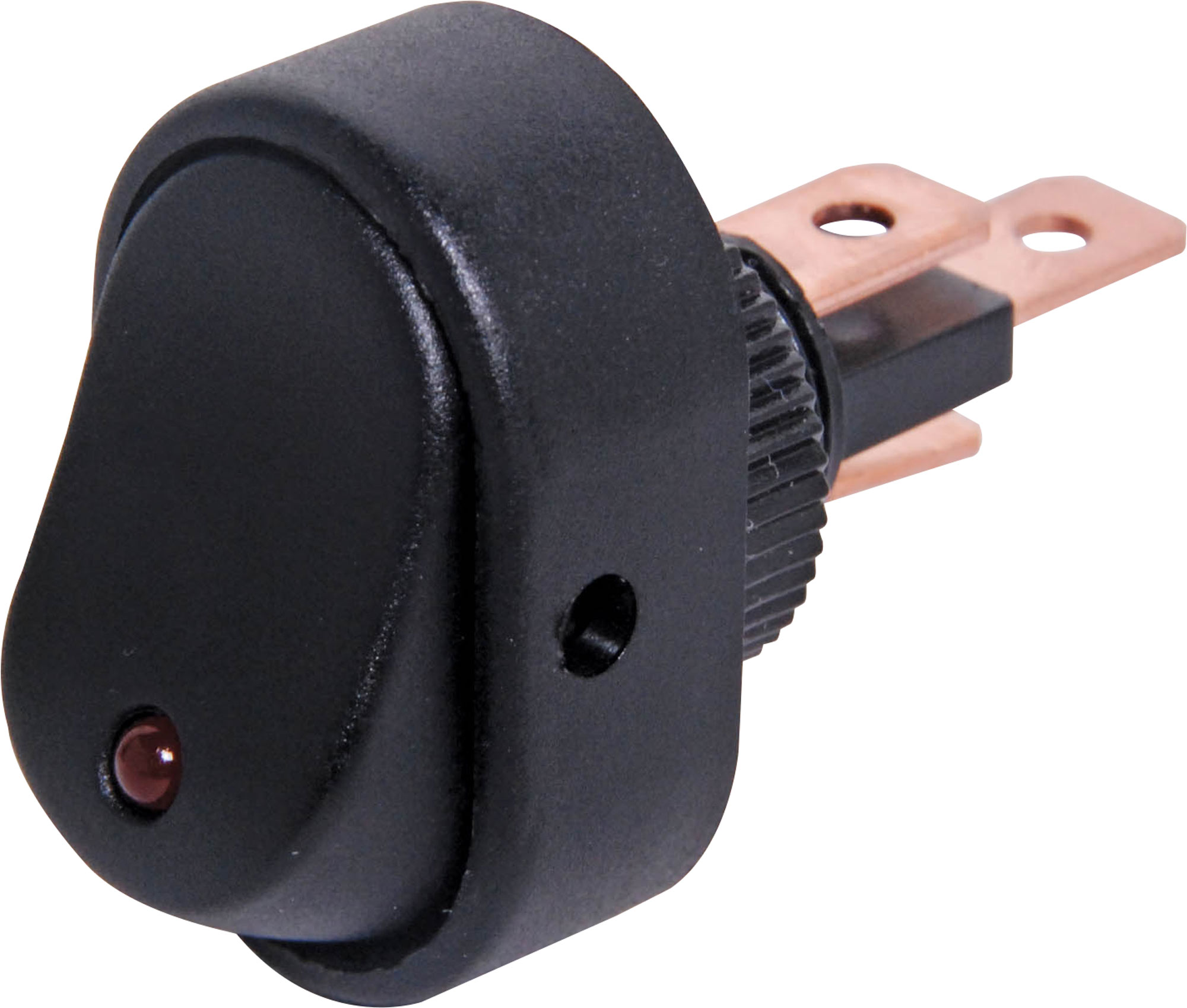

SPST Low Voltage Red LED Rocker Switch

SKU: S3248
Designed for use in low voltage applications, this LED illuminated panel mount rocker switch is an SPST alternate type.
$5.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.18
10+ $4.73
25+ $4.18
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Designed for use in low voltage applications, this LED illuminated panel mount rocker switch is an SPST alternate type. The LED has an in-built resistor for direct connection to a 12V DC power source. Excellent mechanical and electrical lifetime specifications.

Specifications

Contact Rating: 30A @ 12V DC

  • Electrical Life: 10,000 cycles
  • Mechanical Life: 100,000 cycles
  • Panel Cutout: 12.2mmØ
  • Panel Thickness: 4mm max.
  • LED: Red, 12V DC
  • Contact Resistance: 50m&Ω max.
  • Insulation Resistance: >100MΩ
  • Dielectric Strength: >1500V AC 1 minute

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
