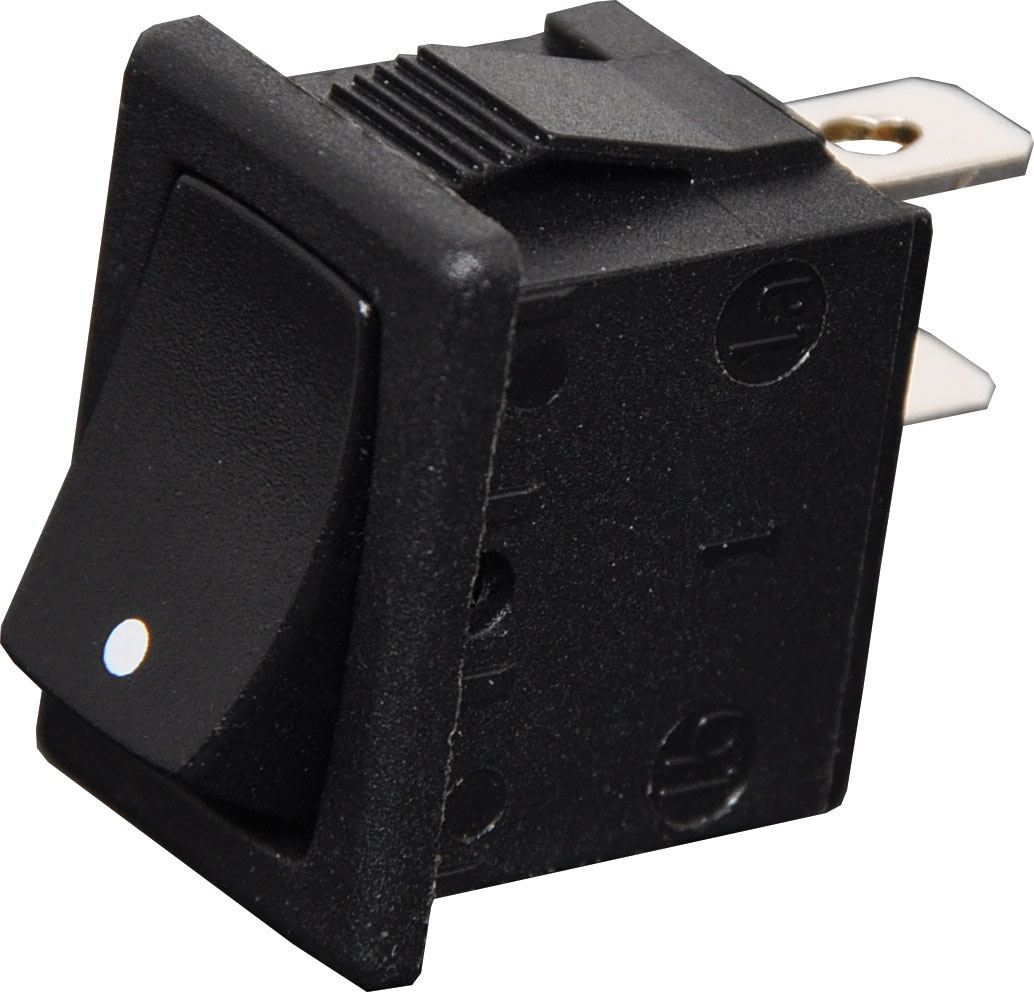

SPST Momentary On/Off Mini Rocker Switch

SKU: S3214
Contact rating: 6A @ 250V AC Panel cutout: ≈19 x 13mm Panel thickness: 0.7-3mm Electrical life: 10,000 cycles Mechanical life: 30,000 cycles Contact resistance: <20mΩ Insulation resistance: >1000MΩ Dielectric strength: >1500V AC 1 minute >3000V AC between poles
$3.05

All Prices Shown are (ex GST)
Bulk Pricing
ea $3.05
10+ $2.82
40+ $2.45
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A miniature rocker switch with SPST momentary on action. Ideal for a compact panel mount power switch in automotive and industrial applications.

Specifications

Contact rating: 6A @ 250V AC

  • Panel cutout: ≈19 x 13mm
  • Panel thickness: 0.7-3mm
  • Electrical life: 10,000 cycles
  • Mechanical life: 30,000 cycles
  • Contact resistance: <20mΩ
  • Insulation resistance: >1000MΩ
  • Dielectric strength: >1500V AC 1 minute
  • >3000V AC between poles

Warranty & Returns

12 Months

We Offer 12 Months for this product
