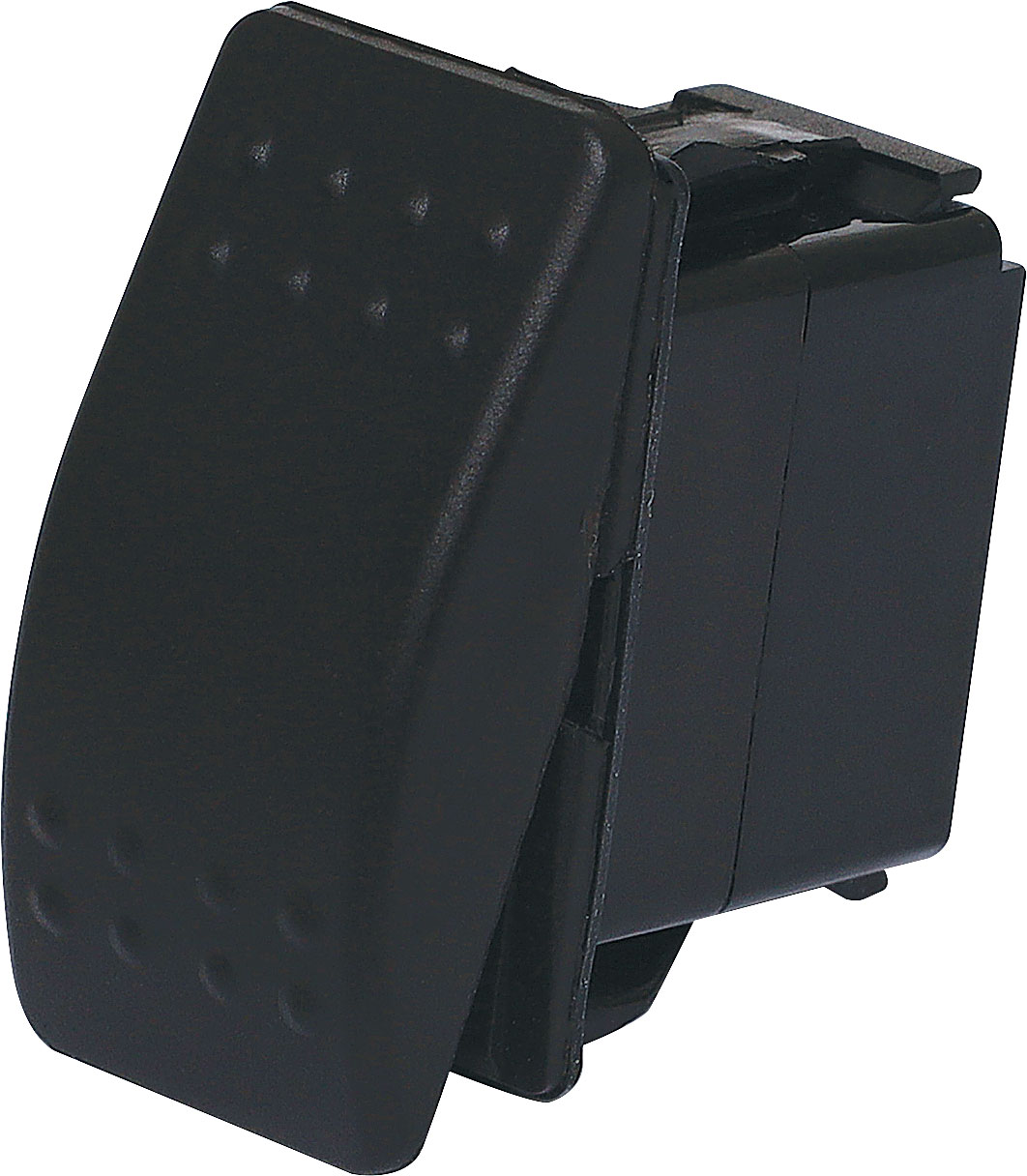

SPST IP67 Heavy Duty Marine 12V/24V Rocker Switch

SKU: S1032
A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems.
$9.95

All Prices Shown are (ex GST)
Bulk Pricing
ea $9.95
10+ $9.55
40+ $8.86
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems. IP67 rated weatherproof design. Suits panel thicknesses up to 4mm. Panel Cutout: 21 x 36.4mm approx. Will vary with panel thickness.

Features

  • IP67 Waterproof Rating (front only)

Specifications

Rating: 12V DC/20A, 24V DC/10A

  • Switch Action : SPST
  • Contact: 50MΩ (max)
  • Insulation Rating: 500V DC / 100MΩ (min)
  • Dielectric Strength: 1,500C AC, 1 minute
  • Electrical Life: 20,000 make-and-break cycles at full load
  • Mechanical Life: 50,000 cycles (min)
  • Operating Temperature: -20°C ~ 65°C

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
