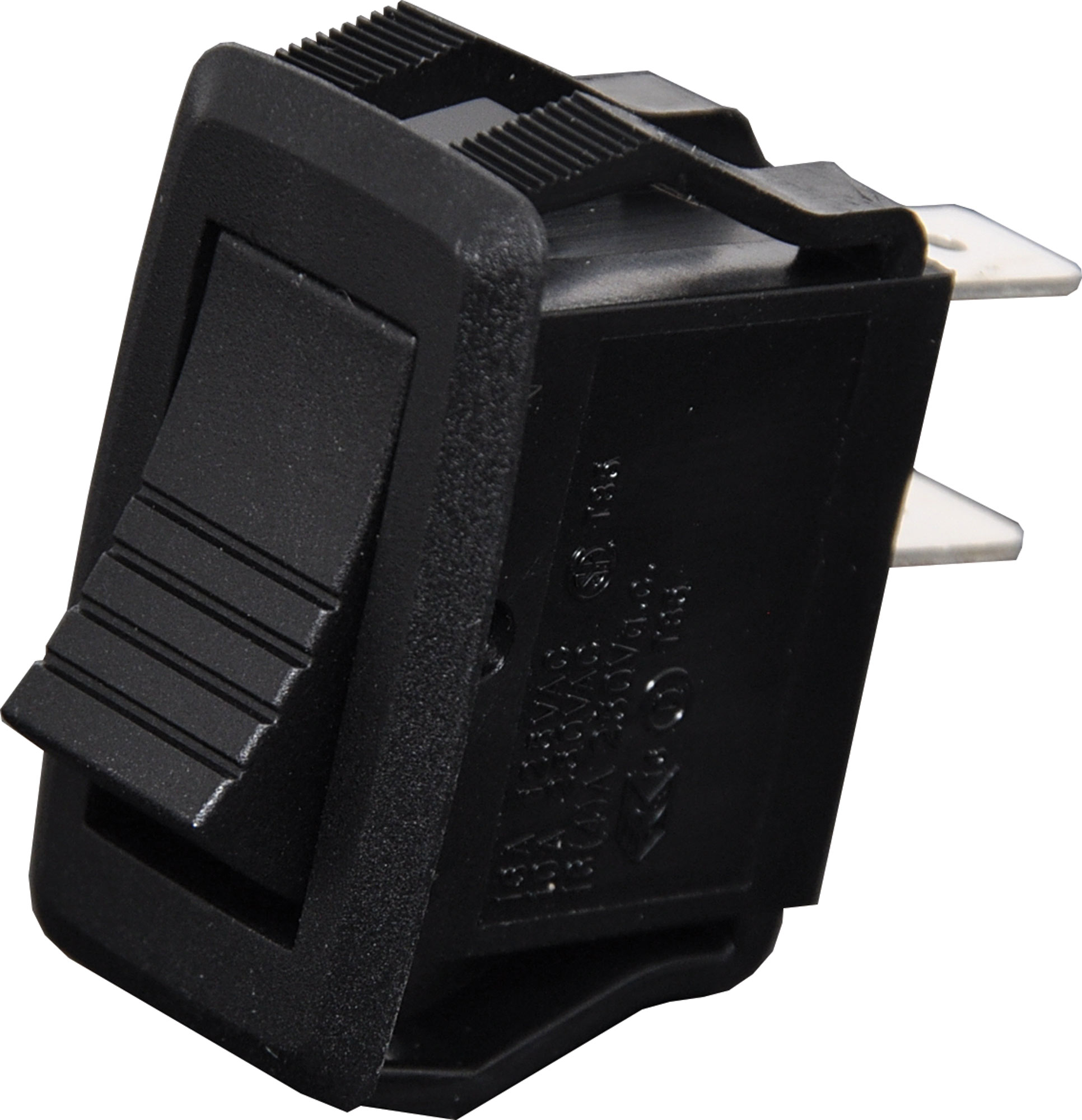

SPST Heavy Duty Rocker Switch

Be the first to review this product
Switch Type: SPST Contact Rating: 10A @ 250V AC LED (S 3226): Red, 1.8V DC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute
SKU: S3224
$2.41
Per ea
Quantity Price
ea $2.41
10+ $2.05
40+ $1.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A narrow profile heavy duty SPST rocker switch for AC/DC switching use. Complies to EN/IEC61058 Class 2 750°C rating, suitable for use in swimming pool equipment.

Specifications

Switch Type: SPST

  • Contact Rating: 10A @ 250V AC
  • Panel Cutout: 27.6 x 13.8 mm
  • Electrical Life: 20,000 Cycles
  • Mechanical Life: 100,000 Cycles
  • Contact Resistance: <50mR
  • Insulation Resistance: >100MR
  • Dielectric Strength: >1500V AC 1 Minute

12 Months

We Offer 12 Months for this product
