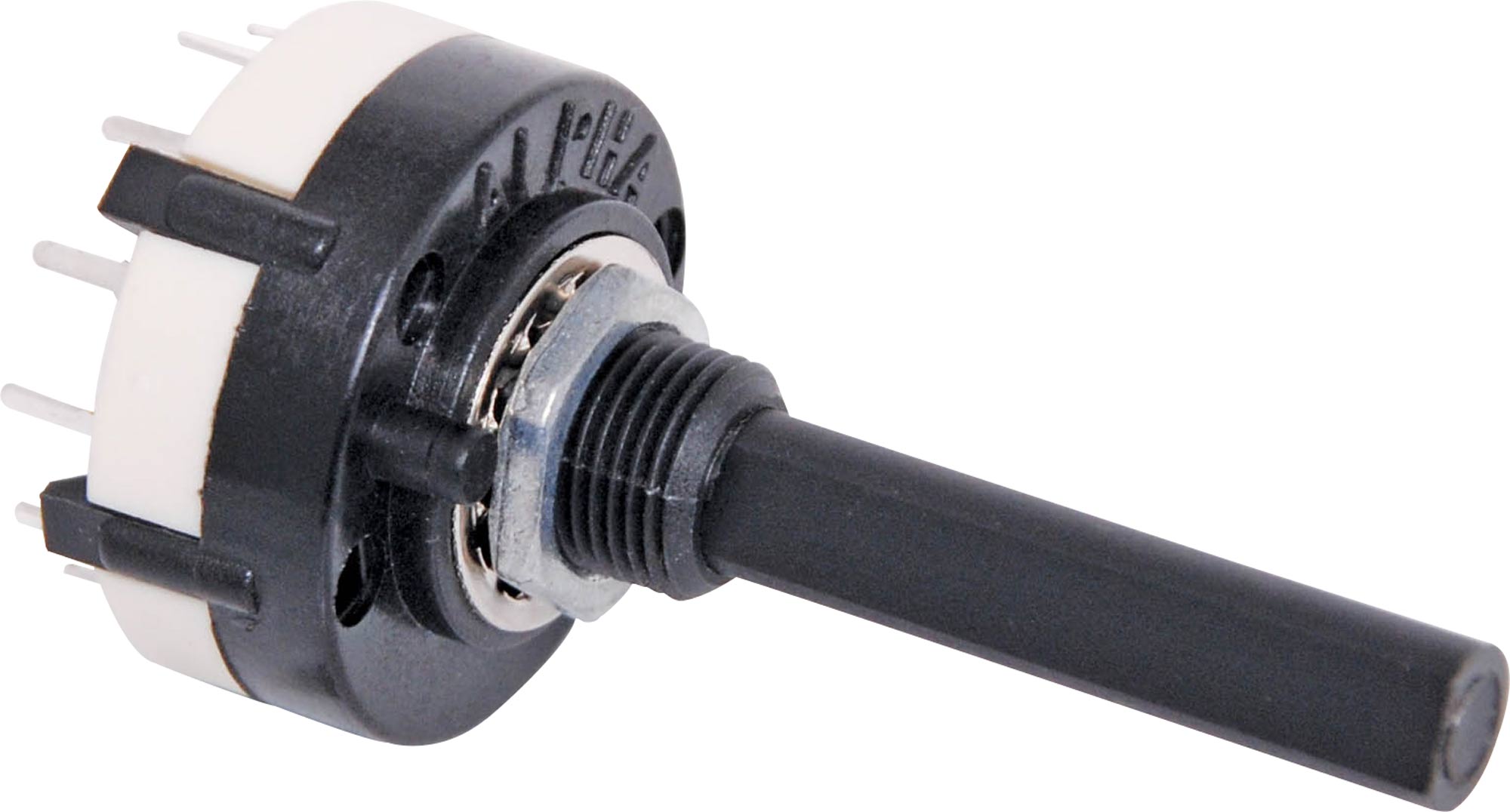

4 Pole 2-3 Position PCB Mount Rotary Switch

SKU: S3024
User Selectable Configuration Each switch includes a toothed washer with a mating series of sockets in the switch housing to enable the switch to be configured to your specific requirement.
$4.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $4.14
10+ $3.77
40+ $3.36
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A configurable PCB mount rotary switch with 6.35mm D shaft. Each switch includes a toothed washer with a mating series of sockets in the switch housing to enable the switch to be configured to your specific requirement. This model can be configured for 4 pole, 2 position up to 4 pole 3 position.

Note: This rotary switch is not compatible with H6020, H6022, H6024, H6028 and H6030 knobs.

Diagram

Specifications

Shaft Diameter: 6.35mm

  • Shaft Length: 30mm
  • Shaft Shape: Round with knob location flat
  • Contact Timing: Break before make
  • Contact Rating: 150mA @ 250V AC
  • Contact Type: Silver Plated
  • Max. Working Voltage: 300V
  • Termination: 1.2 mm PCB Pins

Warranty & Returns

12 Months

We Offer 12 Months for this product
