New
RoHS

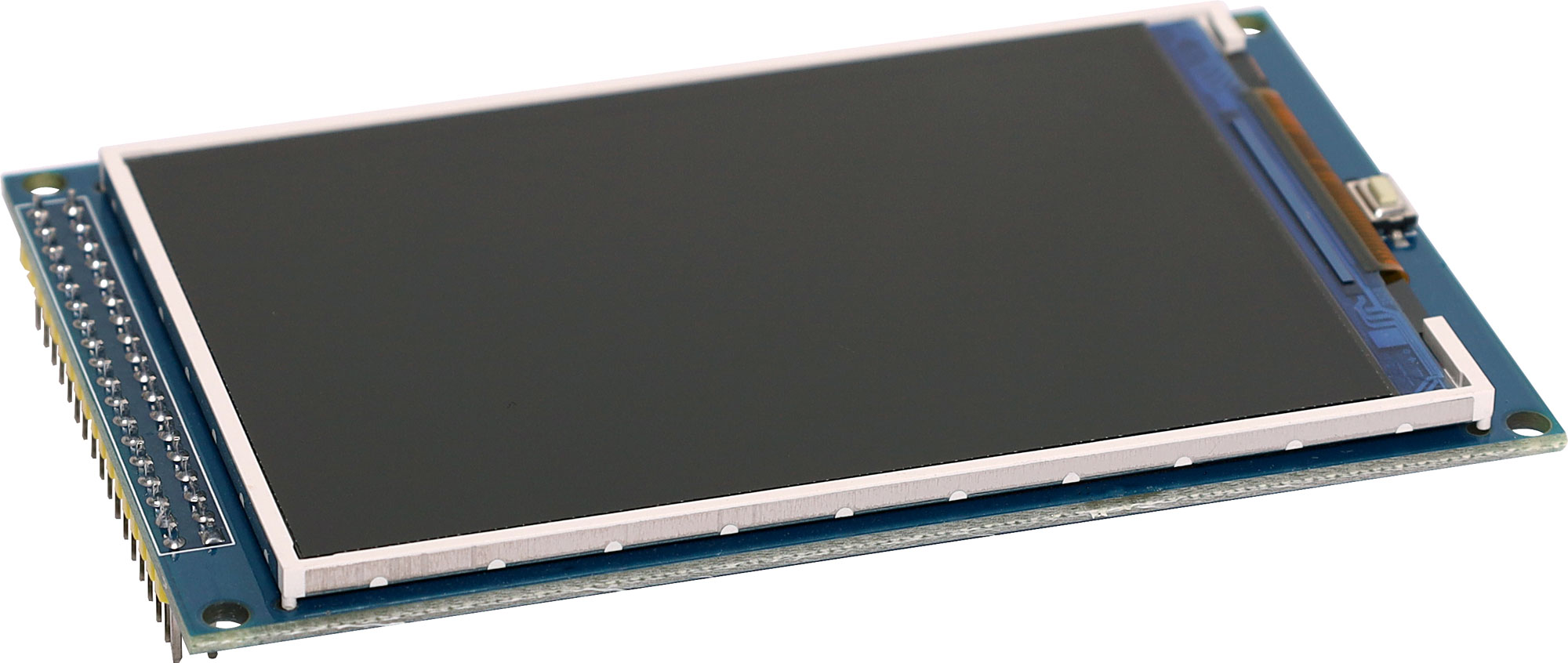

3.5" TFT LCD Shield For Arduino Mega2560

SKU: Z6527A
A 480x320 display shield for the Arduino Mega utilising the ILI9486 chipset. Ideal for projects requiring sensor monitoring.
$40.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $40.91
2+ $36.82
4+ $32.73
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A 480x320 display shield (non-touch) for the Arduino Mega utilising the ILI9486 chipset. Ideal for projects requiring sensor monitoring. 2.8~3.3V input. It can be directly connected onto the Arduino Mega2560 board and also includes the SD card socket and SPI FLASH circuit.

For more information on this display, visit LCD Wiki

Features

  • Support Arduino Mega2560 Directly inserted
  • With Full-angle IPS TFT panel
  • On Board level conversion chip for 5V/3.3V MCU
  • Compatible with 2.8~3.3V operation voltage level
  • Compatible with Arduino-Series development Board.
  • Provided 12-examples with Arduino ,3-examples with STM32
  • With SD Card Socket
  • With SPI FLASH circuit

Specifications

Display Type: 3.5 inch a-si TFT LCD Module

  • Glass Type: TFT
  • Display Resolution: 480XRGBX320 Pixels
  • Back light: 6 chip HighLight white LEDs
  • Control IC: ILI9486/ILI9488L
  • Interface: 16Bit parallel interface
  • Module size: 55.5W x 84.9H x 2.5Dmm
  • Active Area: 73.44W x 48.96Hm

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
