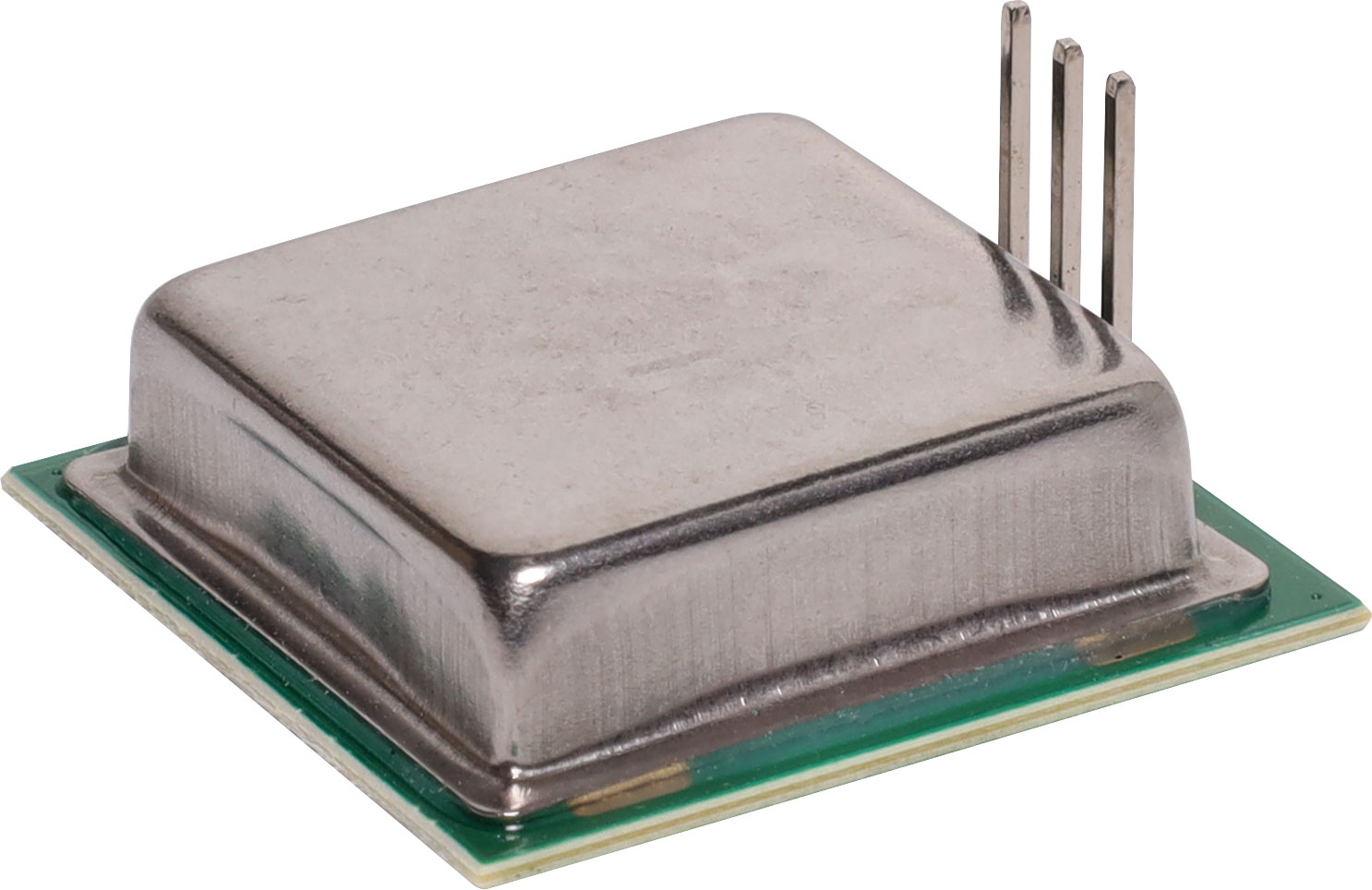

24GHz Millimeter Wave Radar CDM324 Sensor Module

Be the first to review this product
The CDM324 is a 24GHz Millimeter Wave Radar Sensor Module designed for reliable non-contact motion detectionand moving object detection.
SKU: Z6495
$27.23
Per ea
QuantityPrice
ea$27.23
2+$24.50
4+$22.68

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The CDM324 is a 24GHz Millimeter Wave Radar Sensor Module designed for reliable non-contact motion detectionand moving object detection. Utilizing advanced Doppler radar technology, it operates at a 24GHz transmitting frequency, offering high precision and robust performance in a variety of applications. Compact, efficient, and versatile, this module is ideal for use in commercial, industrial, and automation systems.

Features

  • Non-contact detection, moving object detecting.
  • This module''s transmitting frequency is 24GHZ, can be widely applied in business, industries, word controlling etc.
  • Provide various frequency range standards: -UK,-F.
  • Advanced low consumption PHEMT oscillator.
  • Independent transmitting and receiving route, can get the big gain.
  • High sensibility, high flexibility, low cost, operating distance is 15m.
  • Single channel operation

Specifications

Transmitting Frequency: min:24GHz typ:24.125GHz :24.25GHz

  • Output Power:16dbm (typ)
  • Antenna pattern: horizontal direction: typ.80, vertical direction: typ.32
  • Side lobe suppression ratio: horizontal direction: typ.13dB, vertical direction: typ.13dB
  • Operating Temperature: -20 ~ 60°
  • Operating Current: typ:30MA, :40MA
  • Operating Voltage: typ:5.5V
  • Pulse Width: typ:10US
  • IF Output: -300 ~ 300MV
  • Size: 25 x 25 x 7mm
  • Weight: 5g

12 Months

We Offer 12 Months for this product
