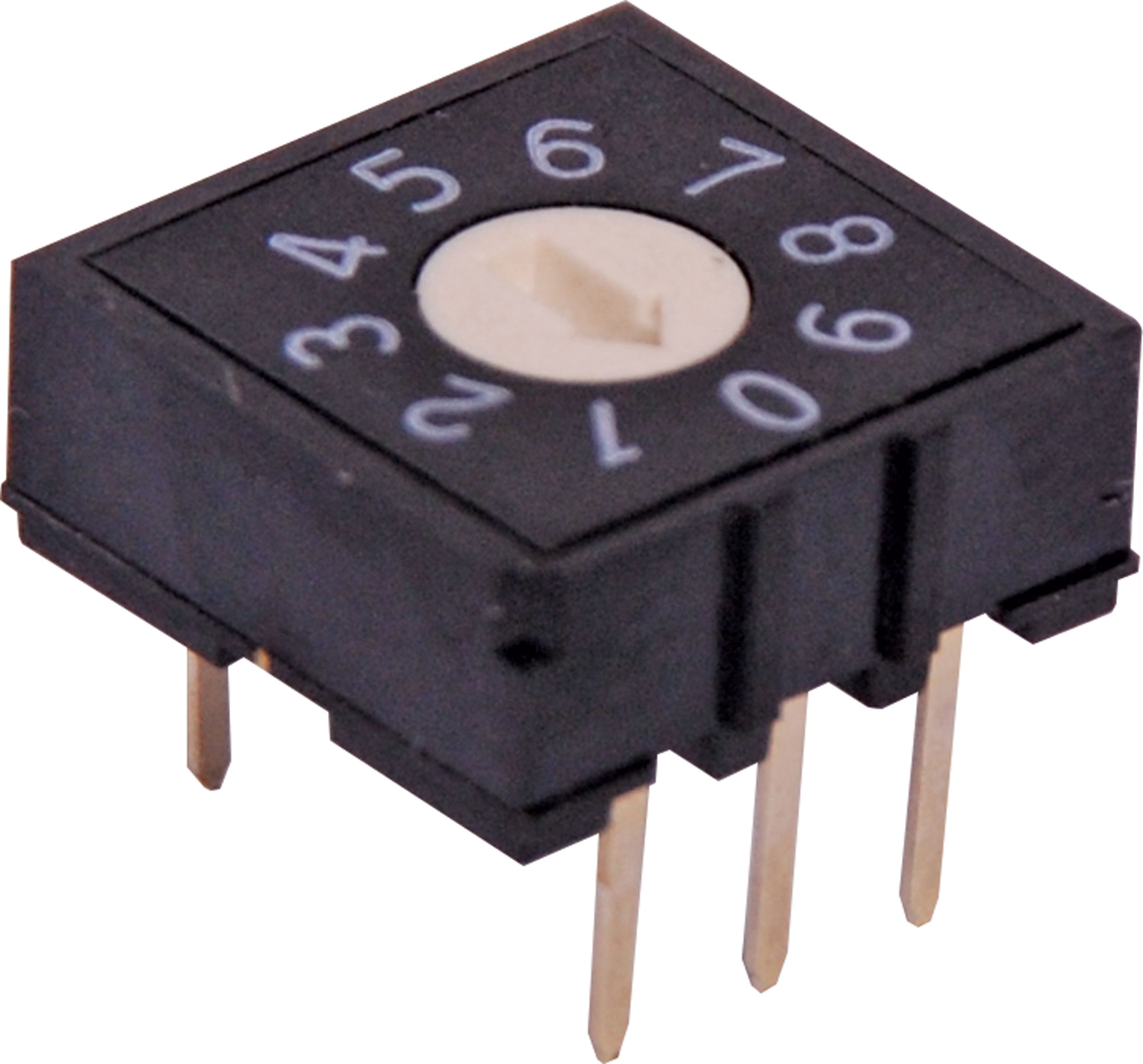

5 Pin BCD PCB Mount Rotary Switch

SKU: S3001A
Temperature range: -10C to +60°C Non switching rating: 50V DC @ 100mA Switching rating: 5V DC @ 100mA Contact resistance (Rc): 100m max. Insulation resistance: 100M min @ 250VAC Voltage proof: 250V AC for 1 min. Mech life: (Rc < 150m
$6.05

All Prices Shown are (ex GST)
Bulk Pricing
ea $6.05
10+ $5.45
40+ $4.82
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Temperature range: -10°C to +60°C
Non switching rating: 50V DC @ 100mA
Switching rating: 5V DC @ 100mA
Contact resistance (Rc): 100mΩ max.
Insulation resistance: 100MΩ min @ 250VAC
Voltage proof: 250V AC for 1 min.
Mech life: (Rc < 150mΩ) 1000 cycle max
Electrical life: (Rc < 150mΩ) 100 cycles max
Binary coded decimal 10 pos

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
