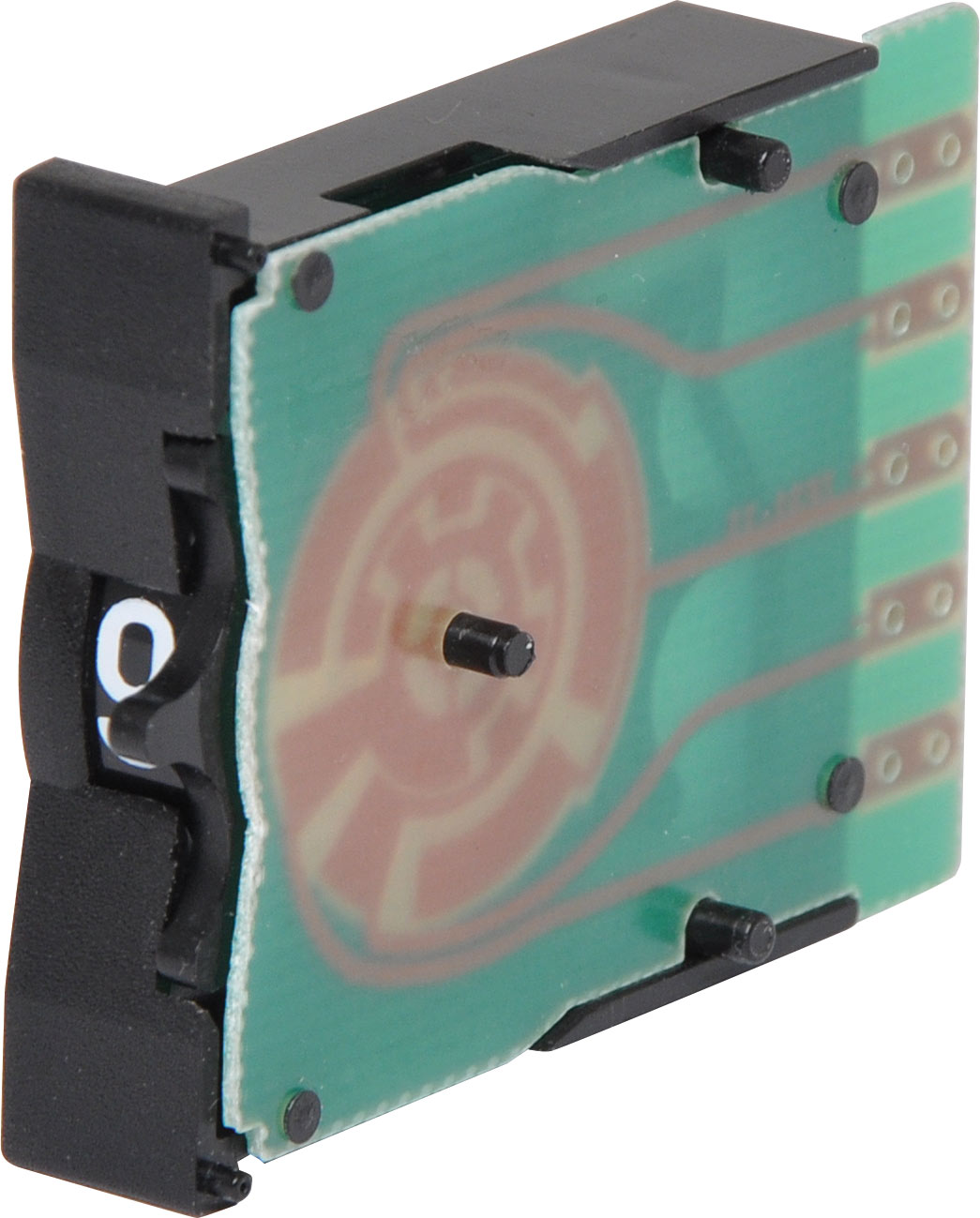

0-9 BCD Mini Thumbwheel Switch

SKU: S3300
Panel mount BCD coded units which slot together to produce a bank of switches. Each unit is engraved (white on black). Output is 8-4-2-1 weighting.Gold plated PCB tracks and connections. Cutout for one unit plus end caps 16 x 30mm. Allow further 8mm per u
$9.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $9.55
10+ $8.59
40+ $7.95
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Panel mount BCD coded units which slot together to produce a bank of switches. Each unit is engraved (white on black). Output is 8-4-2-1 weighting.Gold plated PCB tracks and connections. Cutout for one unit plus end caps 16 x 30mm. Allow further 8mm per unit. Can easily be ganged together to form any combination.
Pair of End Caps to Suit (S 3305)

Specifications:

Temperature Range: -10°C to +65°C

  • Carry Current: 1 Amp max
  • Switch Capacity: 0.1 A @ 50V AC/28V DC
  • Contact Resistance: 200mΩ max.
  • Dielectric Strength: 600V AC for 1 min.
  • Mechanical Life: 100,000
  • Electrical Life: 50,000

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
