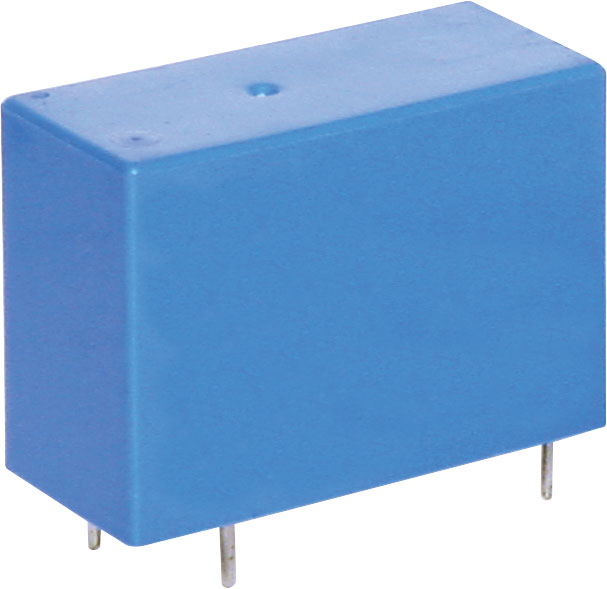

10A 24VDC SPDT PCB Mount Relay

Be the first to review this product
Non-sealed type, suitable for flow soldering
SKU: S4175A
$5.91
Per ea
QuantityPrice
ea$5.91
10+$5.32
40+$4.73

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Non-sealed type, suitable for flow soldering

Specifications:

Max switching voltage: 240V AC, 110V DC

  • Max switching current: 10A
  • Max VA (Watts): 1200VA (300W)
  • Contact material: Silver Cadmium Oxide
  • Coil resistance: 820Ω
  • Max coil power: 720mw
  • Insulation resistance: >100MΩ @ 500V DC
  • Dielectric strength (for 1 min):
  • 1000V AC between open contacts
  • 5000V AC between coil & contact
  • Electrical life: 100,000 operations
  • Mechanical life: 10 million operations
  • Dimensions: ˜29.1W x 13L x 20.6H mm

12 Months

We Offer 12 Months for this product
