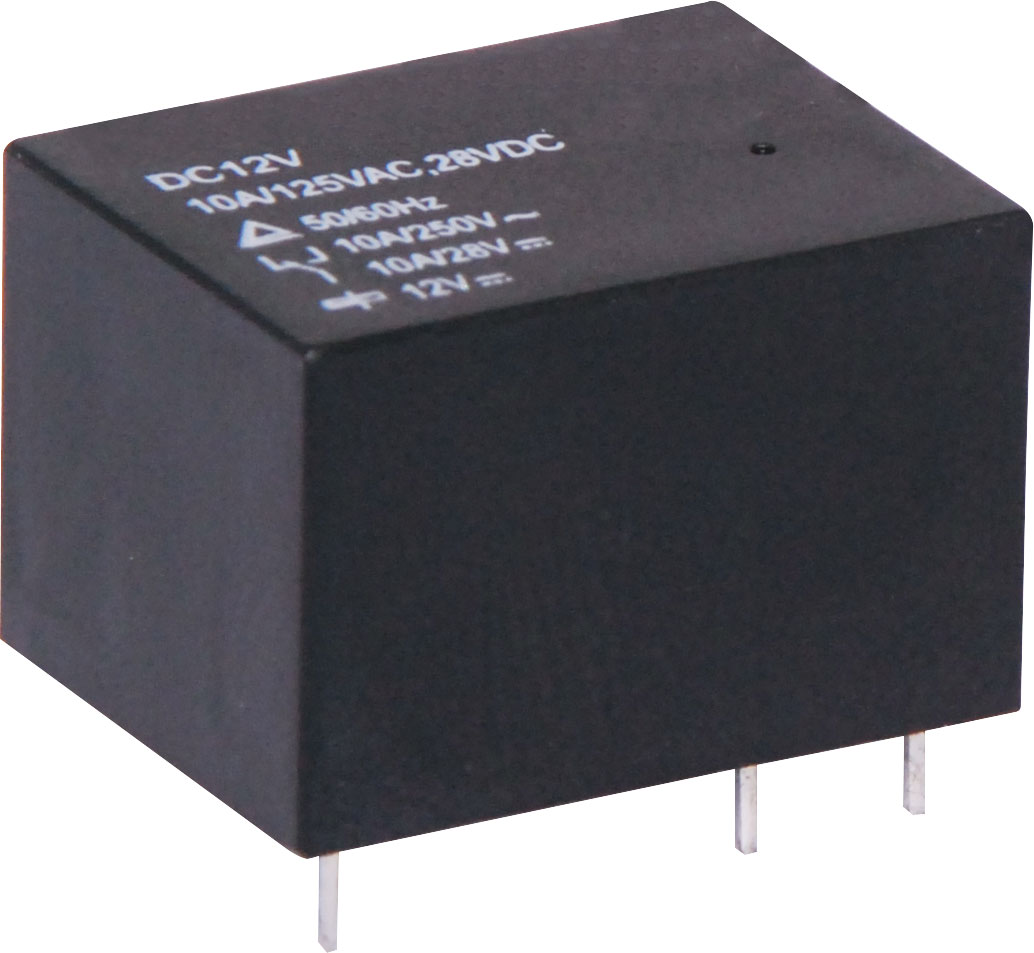

10A 12VDC SPDT PCB Mount Relay

Be the first to review this product

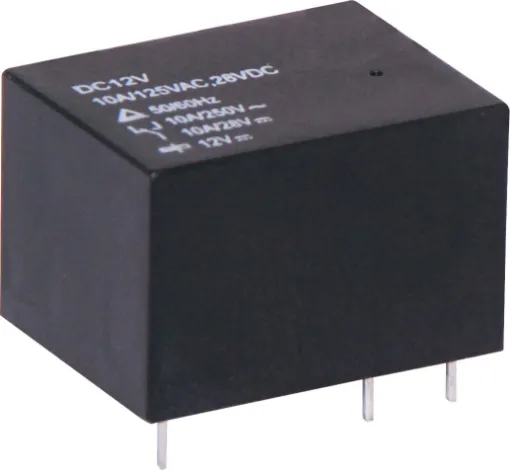

Non-Sealed type, suitable for flow soldering
SKU: S4202B
$4.64
Per ea
QuantityPrice
ea$4.64
10+$4.18
40+$3.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

10A SPDT relay. PCB mount style. 12V DC coil.
Non-sealed type, suitable for flow soldering.

Specifications

Max Switching Voltage: 380V AC, 110V DC

  • Max Switching Current: 10A
  • Max VA (Watts): 2400VA (336W)
  • Contact Material: Silver Nickel
  • Coil Resistance: 400Ω
  • Max Coil Power: 360mw
  • Insulation Resistance: >500MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 2500V AC between coil & contact
  • Electrical Life: 100,000 operations 5A 24V
  • Mechanical Life: 10 million operations
  • Dimensions: 22W x 17L x 15H mm
