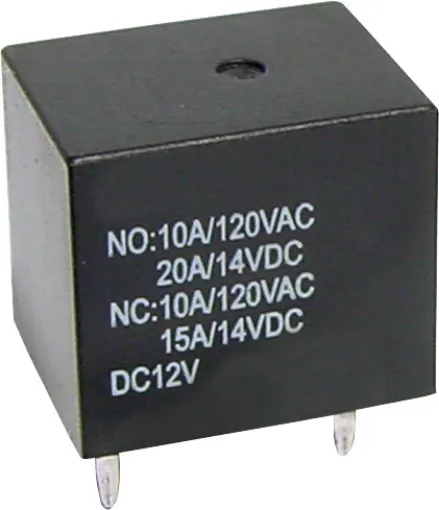

12VDC 10A SPDT PCB Mount Relay

Be the first to review this product
Non-Sealed type, suitable for flow soldering
SKU: S4402A
$4.05
Per ea
QuantityPrice
ea$4.05
10+$3.64
40+$3.18

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Non-Sealed type, suitable for flow soldering

Specifications:

Max switching voltage: 380V AC, 42V DC

  • Max switching current: 10A
  • Max VA (Watts): 1250VA (280W)
  • Contact material: Silver Cadmium Oxide
  • Coil resistance: 240Ω
  • Max coil power: 600mw
  • Insulation resistance: >100MΩ @ 500V DC
  • Dielectric strength (for 1 min):
  • 500V AC between open contacts
  • 500V AC between coil & contact
  • Electrical life: 100,000 operations
  • Mechanical life: 10 million operations
  • Dimensions:˜15W x 12L x 12Hmm

12 Months

We Offer 12 Months for this product
