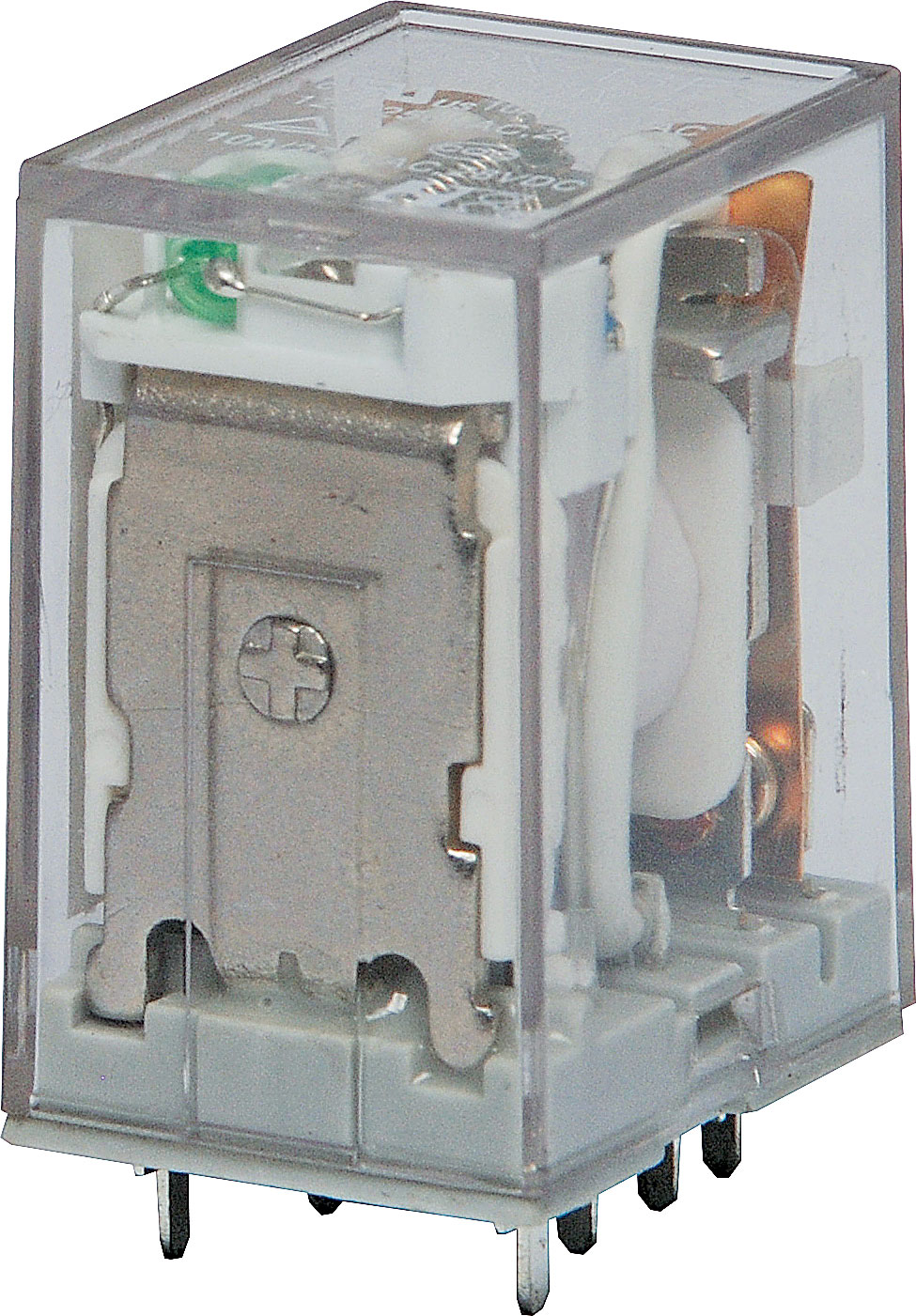

10A 24VDC DPDT PCB Mount Relay

SKU: S4313
Features Inbuilt LED indicator
$8.32

All Prices Shown are (ex GST)
Bulk Pricing
ea $8.32
10+ $7.27
40+ $6.23
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

10A DPDT relay. PCB mount style featuring an in-build indicator. 24V DC.

Specifications

Max Switching Voltage: 300V AC, 30V DC

  • Max Switching Current: 10A (total)
  • Max VA (Watts): 280VA (280W)
  • Contact Material: Silver Cadmium Oxide
  • Coil Resistance: 640Ω
  • Max Coil Power: 900mW
  • Insulation Resistance: >1000MΩ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 1500V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 20 million operations
