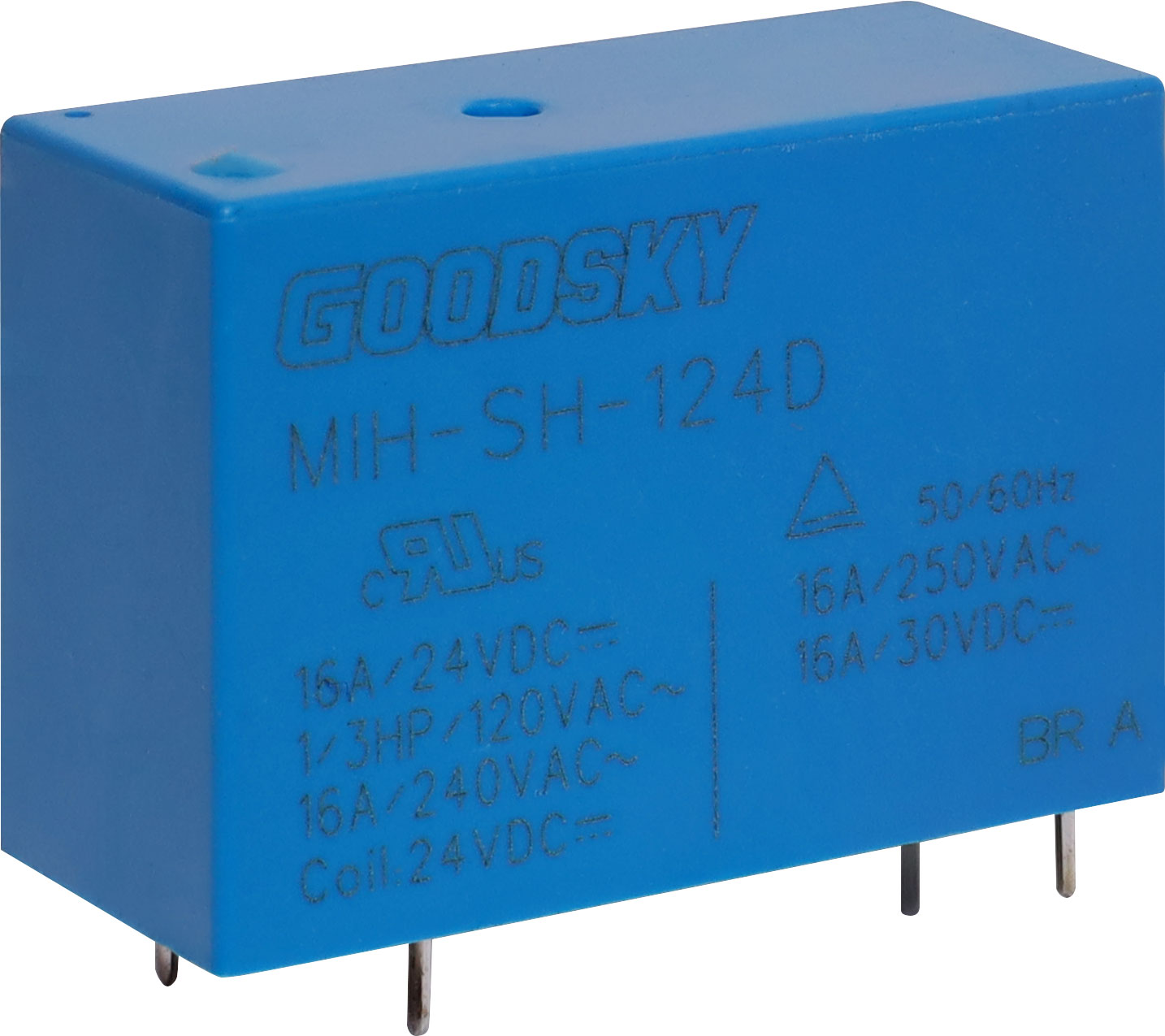

16A 24VDC SPDT PCB Mount Relay

SKU: S4199
Fully sealed construction (immersion cleanable).
$6.32

All Prices Shown are (ex GST)
Bulk Pricing
ea $6.32
10+ $5.91
40+ $5.23
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

16A SPDT relay. PCB mount style. 24V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

Specifications

Max Switching Voltage: 250V AC, 110V DC

  • Max Switching Current: 16A
  • Max VA (Watts): 1800VA (450W)
  • Contact Material: Silver Selenium Dioxide
  • Coil Resistance: 820Ω
  • Max Coil Power: 720mw
  • Insulation Resistance: >100MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 5000V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: 13W x 29L x 21H mm
