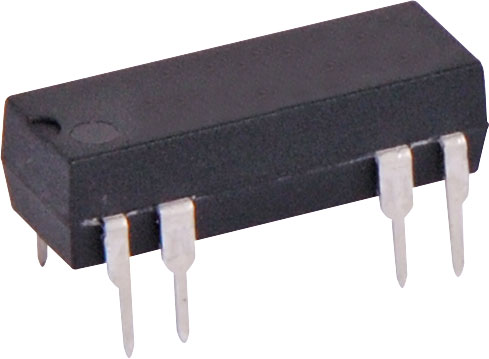

0.5A 12VDC SPST DIP PCB Mount Reed Relay

Be the first to review this product
Fully sealed construction (immersion cleanable). DIL pitch terminals.
SKU: S4101
$4.95
Per ea
QuantityPrice
ea$4.95
10+$4.32
25+$3.91

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Fully sealed construction (immersion cleanable).
DIL pitch terminals.

Specifications:

Max switching voltage: 100V DC

  • Max switching current: 0.5A DC
  • Max VA (Watts): 10VA
  • Coil resistance: 1050Ω
  • Max coil power: 500mw
  • Insulation resistance: >1000MΩ@ 500V DC
  • Dielectric strength (for 1 min):
  • - 150V AC between open contacts
  • - 1000V AC between coil & contact
  • Electrical life: 10 million operations
  • Dimensions: 20W x 8L x 6H mm

12 Months

We Offer 12 Months for this product
