General Purpose Relays

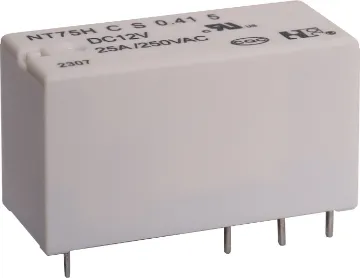

25A SPDT relay. PCB mount style. 12V DC coil. Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing

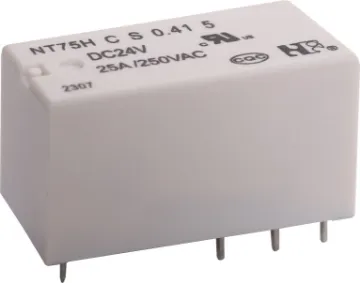

25A SPDT relay. PCB mount style. 12V DC coil. Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing

Compact 2A DPDT signal relay. 12V DC coil. Fully sealed construction, makes it ideal for immersion cleaning and large scale manufacturing. Low power consumption. Surge withstanding up to 2500V.

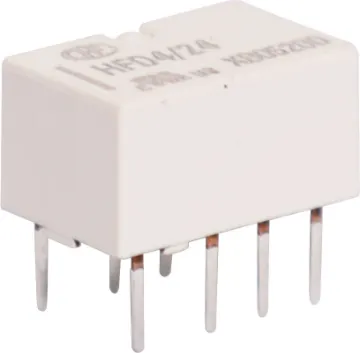

Compact 2A SPDT signal relay. 24V DC coil. Fully sealed construction, makes it ideal for immersion cleaning and large scale manufacturing. Low power consumption. Surge withstanding up to 2500V.

Compact 2A DPDT signal relay. 5V DC coil. Fully sealed construction, makes it ideal for immersion cleaning and large scale manufacturing. Low power consumption. Surge withstanding up to 2500V.

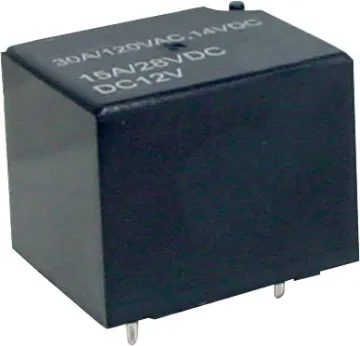

Max voltage:380V AC, 75V DC Max current:30A Max VA (Watts):2400VA (360W) Contact material:Silver Nickel Coil resistance (12V):90 Ohm Max coil power:1.6W Insulation resistance:>100M Ohm @ 500V DC Dielectric strength (for 1 min): 1000V AC between open contacts 5000V AC between coil & contact Electrical life:100,000 operations Mechanical li

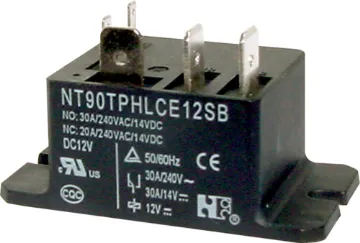

Max voltage:250V AC Max current:30A Max VA (Watts):7200VA (1100W) Contact material:Silver Nickel Alloy Coil resistance:160Ω Max coil power:2.5W Insulation resistance:>1000MΩ @ 500V DC Dielectric strength (for 1 min): 1500V AC between open contacts 2500V AC between coil & contact Electrical life:100,000 operations M

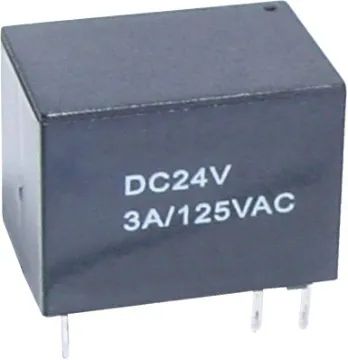

Fully sealed construction (immersion cleanable).

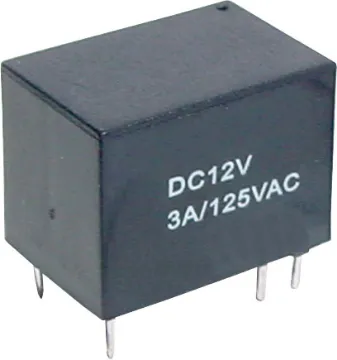

Fully sealed construction (immersion cleanable).

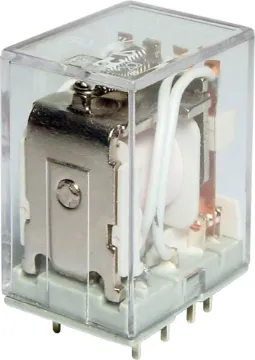

Max voltage:150V DC, 380V AC Max current: 7A Max VA (Watts): 2500VA, 1250W Contact material: Silver Cadmium Oxide Coil resistance: 160Ω Max coil power: 0.9W Insulation resistance: >1000MΩ @ 500V DC Dielectric strength (for 1 min): 1000V AC between open contacts 1500V AC between coil & contact Electrical life: 200,000 operations

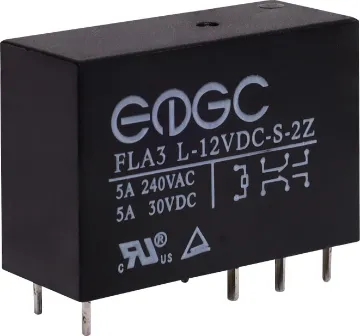

Note: This relay is marked with UL approved 5A 240VAC ratings, however max switching current specification is 8A 250VAC/30VDC

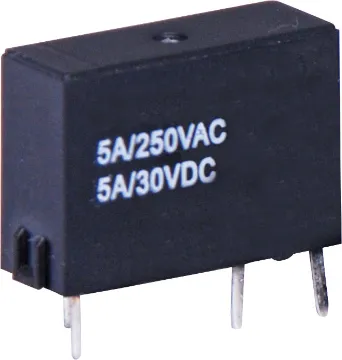

Non-sealed type, suitable for flow soldering

Note: This relay is marked with UL approved 5A 240VAC ratings, however max switching current specification is 8A 250VAC/30VDC

Non-sealed type, suitable for flow soldering

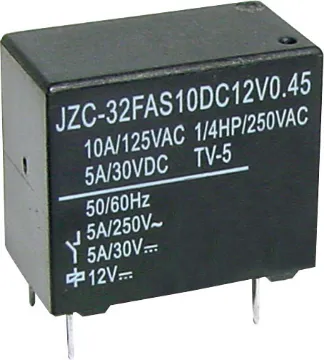

Non-Sealed type, suitable for flow soldering.

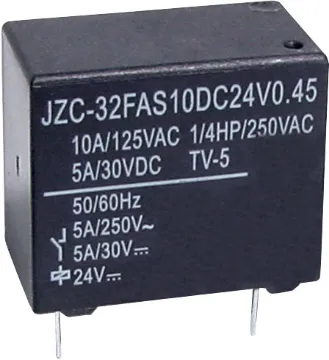

Non-Sealed type, suitable for flow soldering.

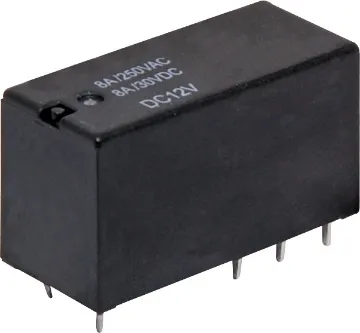

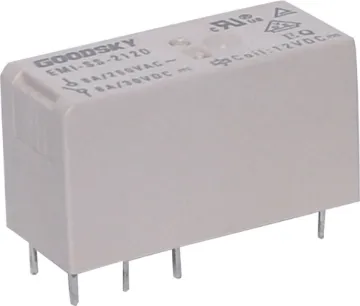

Non-sealed type, suitable for flow soldering

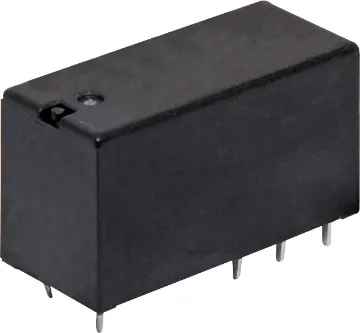

Non-sealed type, suitable for flow soldering

Non-sealed type, suitable for flow soldering
